How to Install a Drainage Channel: Step-by-Step Guide
Learn a practical, safety-focused method to install a drainage channel. This guide covers planning, trenching, bedding, installation, backfill, testing, and maintenance for reliable surface drainage in yards, driveways, and patios.
According to Drain Guide, this guide walks you through how to install drainage channel from planning to finish. You’ll learn trench prep, bedding, channel placement, grating, backfill, and testing. The steps emphasize safety, local code awareness, and careful leveling to ensure reliable drainage and a neat finished appearance. This overview helps homeowners avoid common mistakes and save time on the project.
What is a drainage channel and when to install
If you’re wondering how to install drainage channel, this overview explains what a drainage channel does and when it makes sense to install one. Drainage channels collect surface water, prevent pooling, and guide runoff to an outlet. They’re common in driveways, walkways, patios, and yards with low spots or poor drainage. Drain Guide notes that proper installation starts with planning grade, outlet location, and soil conditions. A well-designed channel reduces erosion, protects foundations, and keeps basements dry during heavy rain. For homeowners facing frequent puddling after storms, a drainage channel is often the most economical and durable solution.
Beyond aesthetics, drainage channels help meet local drainage codes and reduce standing water that attracts pests. When selecting a channel, consider material, load requirements, frost depth, and anticipated maintenance. Drain Guide emphasizes choosing a system that blends with your landscape and withstands freeze-thaw cycles in your region. Start by identifying the drainage outlet and tracing the plan across the property, marking slope direction with spray paint or string lines. This initial step keeps future work aligned and minimizes guesswork.
Drainage channels are most effective when placed along the natural flow path of surface water and sloped toward an appropriate outlet. They’re not a substitute for a proper garden bed or grading; rather, they complement those features by channeling water into a designated point. If you have soil with heavy clay or shale, plan for a wider trench and more base material to prevent settling. Drain Guide recommends budgeting extra material to accommodate soil conditions and site constraints.
This guide also highlights safety and planning: identify buried utilities before digging, obtain any required permits, and keep children and pets away from the trench. With a clear plan in hand, you’ll waste less time and reduce the risk of rework later. In short, the decision to install a drainage channel should balance water management needs, soil type, available outlets, and local regulations. Drainage channels offer a reliable, low-maintenance path for surface water when designed and installed correctly.
Tools & Materials
- Drainage channel kit (grate included)(Width and depth must match your planned path; choose a kit rated for intended load and decorative finish.)
- Shovel or trenching tool(For digging the trench to the planned dimensions.)
- Tape measure(Accurately measure length, width, and depth, plus slope.)
- Level or laser level(Ensure channel sits flush and evenly throughout the run.)
- Base bedding material (sand or fine gravel)(Creates a stable, level foundation with proper drainage.)
- Gravel backfill(Backfill around the channel in layers for stability.)
- PVC solvent cement or appropriate adhesive(Only for PVC channels; follow product instructions.)
- Gloves, safety glasses(Personal protection during digging and handling materials.)
- End caps and connectors(Seal ends and connect channel sections as needed.)
- Landscape fabric or membrane (optional)(Prevents soil intrusion into base layer.)

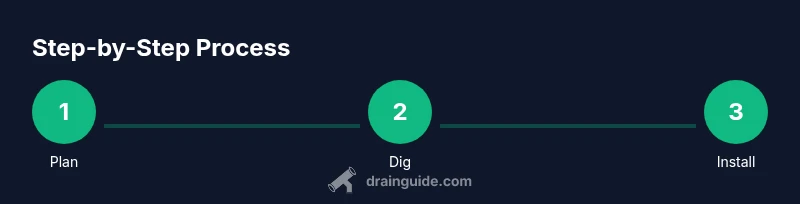

Steps
Estimated time: 3-6 hours
- 1
Plan layout
Plan the channel path, outlet location, and required slope. Identify utilities and property boundaries before digging. Create a sketch or mark the line with stakes to keep the trench true.
Tip: Use a chalk line or string to visualize a straight path. - 2
Dig trench
Dig the trench to the planned width and depth, leaving space for bedding and backfill. Remove excavated soil to a safe distance from the work area. If soil is unstable, adjust width or add stabilization measures.
Tip: Call 811 to check for buried utilities before digging. - 3
Prepare base bedding
Spread a bedding layer of sand or fine gravel to create a level, slightly sloped surface toward the outlet. Compact gently to reduce future settlement while keeping the surface smooth for channel seating.
Tip: Aim for a 1-2% slope toward the outlet to promote drainage. - 4
Position channel
Place drainage channel sections into the trench, aligning joints and maintaining a straight run. Dry-fit first to verify layout before applying any adhesive or bedding.
Tip: Dry-fit to check joints and alignment before final installation. - 5
Level and set slope
Check that the channel is level side-to-side and has the correct fall toward the outlet. Adjust bedding as needed to maintain consistent drainage.
Tip: Use a laser level for larger runs to ensure accuracy. - 6
Secure joints
Join channel sections with the manufacturer’s joints or adhesive according to the product guidelines. Allow the adhesive to cure as recommended before handling.
Tip: Read the product sheet for cure times; avoid load on joints during curing. - 7
Backfill gradually
Backfill around the channel with gravel and then soil in layers, compacting lightly after each layer to prevent voids. Avoid heavy compaction directly on the channel to prevent deformation.
Tip: Compact in thin lifts to minimize settlement. - 8
Install grate and finish
Place the grate, ensure flush fit, and trim as needed. Remove debris from the trench and confirm the surface grade blends with adjacent surfaces.
Tip: Test fit grate before final securing; ensure no obstruction to water flow. - 9
Test drainage
Run water through the channel and observe flow to the outlet. Look for leaks, sags, or standing water and address issues promptly.
Tip: If drainage is slow, recheck slope and bedding; adjust as needed. - 10
Document and maintain
Record installation details and establish a maintenance plan to remove debris and inspect joints regularly.
Tip: Create a simple inspection checklist for seasonal checks.
Got Questions?
What type of drainage channel should I use for a residential yard?
Choose a channel material based on load, freeze-thaw resistance, and installation location. PVC, polymer, and concrete channels are common options; match the channel to the expected traffic and environment.
PVC or concrete channels are common for residential use; pick based on load and climate.
How deep should the trench be for a drainage channel?
Dig deep enough to seat the channel and bedding material with room for backfill. Check the manufacturer’s guidelines for minimum depth.
Depth varies; follow the channel’s instructions and your slope plan.
Do I need permits for installing a drainage channel?
Most small residential installations don’t require a permit, but local codes vary. Check with your municipal building department before you start.
Check local codes; many places don’t require permits for simple yard drainage.
How long does adhesive take to cure for PVC channels?
Cure times depend on the adhesive and weather; follow the product’s instructions and avoid loading the channel until cured.
Follow the adhesive’s cure time; don’t drive over or install debris until it's set.
Can I install a drainage channel over grass or soil?
Yes, but you should prepare a stabilized base with bedding and proper compaction to prevent settling and ensure continuous drainage.
Yes, but you need a solid bedding and support to avoid sinking.
Is maintenance important after installation?
Regularly clear debris, inspect joints for leaks, and verify slope remains intact after heavy rains. Address issues promptly to prevent failures.
Yes, keep the channel clean and check for leaks after storms.
Watch Video
The Essentials
- Plan the drainage path before you start.
- Use proper bedding and consistent slope toward the outlet.
- Seal joints and test the system before finishing the trench.
- Backfill in layers and compact gently to avoid sagging.
- Maintain a regular maintenance schedule to prevent clogs.
