Precast Trench Drain Guide: Install, Use, Maintain

What is a precast trench drain?

A precast trench drain is a prefabricated drainage channel manufactured off site and delivered in sections for installation. The trough is typically made from concrete, polymer concrete, or high density polymer, and is designed to be set flush with the surface. A grate covers the channel to keep debris out while allowing water to flow through. Because the channel is manufactured in a controlled environment, dimensions and joint details are consistent, which helps ensure reliable drainage along a long run. Precast trench drains are commonly used along driveways, patios, garages, and commercial entryways where a smooth, continuous drainage path is beneficial. According to Drain Guide, these systems offer predictable performance and faster on site installation compared with traditional poured in place options.

In practice, a precast trench drain creates a defined channel that collects surface water from a watershed and conveys it to an outlet such as a storm sewer, dry well, or landscape drainage line. The design accommodates varying sediments and loads, but it is important to select the right size and grate for the intended use. Homeowners often choose precast units when they need a neat, professional look and a quick solution that minimizes on site formwork and curing time.

Key takeaways: precast trench drains are factory made, easy to install, and offer consistent performance when properly sized for the project. Drain Guide notes that choosing the correct material and grate type is essential for longevity and reliability.

Why choose precast over poured in place?

Precast trench drains provide several advantages over poured in place channels. First, the manufacturing process yields uniform dimensions, joints, and grate interfaces, which translates to tighter tolerances and fewer on site surprises. This results in faster installation, less site labor, and reduced risk of leaks at joints. Second, precast units are typically available in standard lengths, widths, and grate styles, giving you predictable lead times and easier planning for a project with a fixed deadline. Third, because the channels are cured in a controlled factory environment, they are less susceptible to on site temperature swings and curing issues that can affect poured in place systems. Drain Guide emphasizes the value of precast when the goal is to minimize on site complexity and achieve repeatable results.

However, precast trench drains require careful handling and transport to avoid cracks or damage to joints and grates. They also demand precise trench preparation and bed leveling on site. For projects that involve tight spaces or unusual slopes, you may still end up needing custom fabrication or a hybrid approach. In many residential applications, precast offers the best balance of speed, quality, and long term performance.

Key takeaways: precast enables faster installation with consistent joints and profiles, reduces on site risk, but requires proper handling and accurate site preparation.

Key components and materials

A typical precast trench drain system includes several core components:

• Channel body: the long trough that carries the water.
• Grate: the top cover that allows water in while keeping debris out; grate material can be steel, ductile iron, or polymer.
• End caps and outlet fittings: seal the ends and connect to the drainage pipe or channel network.
• Joints and gaskets: ensure watertight connections between sections.
• Bedding and subbase: a stable, level surface under the channel, often with bedding mortar or bed sand to distribute loads.
• External accessories: slope inlets, adapters, and venting options if required by local codes.

Materials can include traditional concrete or polymer concrete for durability, as well as HDPE or other polymers in some specialty products. Each material has implications for chemical resistance, weight, and load capacity. Drain Guide notes that material choice should align with exposure conditions and maintenance expectations, as the chemistry of the environment can affect long term performance.

Key takeaways: understand each component, select compatible materials, and ensure correct installation to realize the full benefits of precast trench drains.

Sizing, load ratings, and performance

Sizing a precast trench drain involves matching channel width, depth, and grate opening to the expected surface runoff and space constraints. Hydraulic capacity is determined by the channel cross sectional area and slope, with steeper slopes moving water faster but potentially increasing energy loss at the grate. Load rating matters if vehicles or heavy equipment cross the drain; select a grate and channel that meet or exceed the anticipated maximum load. The choice between concrete versus polymer channels affects both durability and weight, influencing handling on site. Drainage performance also depends on outlet placement, infiltration options, and the presence of any downstream restrictions.

Drain Guide analysis shows that proper sizing reduces the risk of overflows during heavy rain events and minimizes maintenance by preventing debris buildup in undersized channels. Local codes may require specific slope minimums and cover spacing, so verify with your municipality before ordering parts. For most residential applications, a modest slope and a standard grate suffice, while commercial or industrial uses may require heavier duty materials and higher load ratings.

Key takeaways: size by runoff, match load rating to expected traffic, consider outlet and slope for reliable performance.

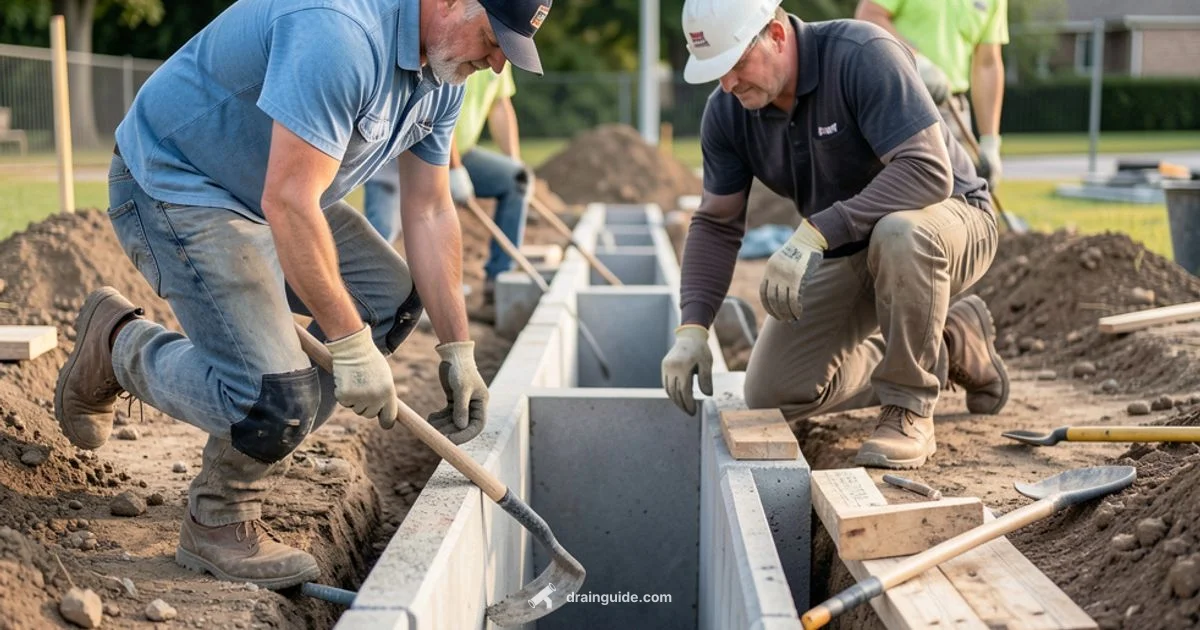

Installation steps for a DIYer

Before you begin, confirm the trench location, measure available space, and check for buried utilities. Gather tools and safety gear, including a level, trenching shovel, and waterproof sealant. Step by step:

1. Plan the run and mark the trench line with chalk or stakes. Ensure alignment with the outlet and grading away from structures.
2. Excavate a trench with a stable base deep enough to accommodate the bedding material and channel bottom.
3. Prepare the subbase and bedding bed; ensure it is level and properly compacted to avoid settlement.
4. Dry fit the channel sections to verify alignment and joints; install any required gaskets.
5. Set the trench drain into the bedding, carefully leveling each section to maintain a consistent slope.
6. Connect outlet fittings and ensure a watertight seal at all joints.
7. Install the grate and secure it per the product instructions. backfill around the channel with appropriate material, compacting gradually.
8. Test the system with water to confirm flow and identify any leak points.

DIY friendly precast systems often simplify this process, but precise alignment and proper bed preparation are critical for a durable installation. Drain Guide notes that taking time on the subbase and slope will pay off with reliable long term performance.

Key takeaways: plan carefully, verify alignment, and test the system after install for best results.

Common installation mistakes and how to avoid them

• Skipping a proper subbase: install a stable bed to prevent settlement and misalignment.
• Ignoring slope: even small deviations can cause ponds or backflow near structures.
• Inadequate joint sealing: use correct gaskets and sealant to prevent leaks.
• Grate misfit or over tightening: ensure grate sits flush and does not bind during thermal expansion.
• Improper load rating: select a grate and channel that meet site traffic requirements.
• Inconsistent bed compaction: uneven subsurface compaction leads to channel movement.

To avoid these pitfalls, take time to verify each joint before setting, perform a dry fit, and follow manufacturer guidelines for bedding materials and gap tolerances. Drain Guide emphasizes the importance of a level bed and correct slope to maintain gravity drainage without blockages.

Key takeaways: plan, verify fit, seal joints, match load rating, and test thoroughly.

Maintenance and longevity

Maintenance keeps precast trench drains functioning well over time. Regularly inspect the grate for corrosion or wear and clear debris from the grate opening to prevent clogging. Periodically check the joints for movement or sealing degradation and reseal if needed. In colder climates, pay attention to freeze thaw cycles that can stress concrete channels; use appropriate materials and protective coatings if required by the environment. Debris like leaves, silt, and soil can accumulate in the channel and reduce capacity, so routine cleaning is essential especially after heavy storms. A simple garden hose or low-pressure water jet can dislodge most buildup without damaging the channel or grate.

Drain Guide recommends scheduling a seasonal maintenance check and addressing any wear promptly to extend life. By keeping the channel clean and the grate intact, precast trench drains can provide reliable drainage for many years with minimal maintenance.

Key takeaways: clean regularly, monitor joints, watch for freeze thaw impact, and replace worn gratings as needed.

Cost considerations and value

Cost considerations for precast trench drains depend on length, width, the material selected, and the required load rating. Concrete and polymer options offer different balances of durability and weight. Longer runs, more complex layouts, and heavier duty grates will generally increase cost. Because precast units are manufactured off site, lead times can vary based on supplier inventory and customization options. On the other hand, precast systems often require less on site labor and formwork compared with poured in place channels, which can translate to overall savings.

When evaluating value, consider not only the upfront price but long term performance, maintenance costs, and the potential for faster installation to minimize project disruption. Drain Guide recommends weighing life cycle costs and the specific drainage needs of your site to determine whether precast trench drains provide the best return on investment.

Key takeaways: balance material and load rating with run length, factor in installation time, and consider life cycle costs when choosing precast.

Practical examples: applications and case studies

Precast trench drains are versatile for many residential and commercial scenarios. A paved driveway with heavy rain runoff from a sloped lot benefits from a precast channel that directs water toward a storm outlet. A pool deck or patio area can use a shallow channel with a durable grate that resists impact and grooming chemicals. A garage entrance or loading zone may require higher load ratings to support wheeled traffic.

In a landscaping project, precast trench drains help manage surface runoff around planters and along walkways, preventing erosion and puddling. In commercial settings, longer runs with access doors and grating designed for vehicle traffic offer reliable maintenance access and lower maintenance costs over time. The Drain Guide team has observed these practical uses across many homeowner projects, highlighting how precast trench drains provide predictable performance and faster installation in real world scenarios.

Key takeaways: adapt to site conditions, select appropriate grate and load rating, and plan outlet routing for effective drainage.
