Quick AnswerSteps

To put a drain in your garage floor, first plan the location, confirm local codes, and choose the right drain type (graded floor drain or trench drain). Then prepare the slab, cut or core out the opening, and install the drain body with a proper slope toward the connection. Gather a concrete saw or core drill, grinder, sealant, pipe, fittings, and safety gear.

Planning and code considerations

If you’re wondering how to put drain in garage floor, start with planning and code checks. Plan the drain location based on typical water sources from washing vehicles, snow melt, or shop cleanup, and map how water will flow toward the drain. Check with your local building department about permits, required slope, and how the drain ties into the storm or sanitary system. In many areas a permit is required for large penetrations or trench drains, while minor upgrades may be treated as repairs. Consider garage layout: avoid interfering with parking spaces, doors, or storage, and ensure the drain remains accessible for maintenance. Account for the slab’s thickness and any embedded features that could affect placement. If you’re unsure, consult a licensed professional, as good planning now saves headaches later during cutting, sealing, and testing.

Drain options: floor drain vs trench drain

Choosing between a floor drain and a trench drain depends on water volume, space, and maintenance preferences. A standard garage floor drain is compact, simple to seal, and ideal for localized pooling. A trench drain offers a wider channel for heavy runoff or larger areas but requires longer routing and a longer cure time for the surrounding concrete. Consider aesthetics, cleaning ease, and the available space in front of doors or along the driveway. Both options require proper waterproofing connections to the existing drainage system and a deliberate slope toward the outlet to avoid standing water.

Sizing, slope, and venting basics

Drain sizing should match the anticipated water load and pipe capacity, while slope ensures gravity-based flow toward the connection. In residential settings, avoid abrupt changes in direction that could clog easily, and ensure the drain body is securely anchored to the concrete. Venting for a garage drain is typically handled by the connected plumbing system; consult local codes for requirements. Plan for cleanouts and access Points that make future maintenance straightforward. Proper sealing around the drain flange prevents seepage, and using compatible adhesives and gaskets reduces the risk of leaks.

Concrete cutting and openings: safety and accuracy

Preparing the opening requires careful measurement and safe cutting of the garage floor. Use a concrete saw or core drill to create a precise opening that matches the drain body’s dimensions, avoiding cutting into rebar or utilities. Mark the opening first, set cutting guides, and run trial cuts if needed. Manage dust and debris with a mask and containment, and protect nearby fixtures. After cutting, check the opening for square edges and smooth any rough surfaces to ensure a tight seal.

Installing the drain and making connections

Install the drain body into the opening with an appropriate bedding material, then connect the outlet to the drainage line with compatible fittings. Apply a gasket or sealant to prevent leaks, and ensure the drain sits flush with the finished floor. Route the pipe to the existing storm or sewer line with gentle, gradual bends to maintain flow. Secure the assembly and test the alignment before final sealing.

Finishing touches: sealing, testing, and maintenance

Finish the installation by sealing joints with approved sealants, curing the concrete as required, and performing a test run with water to check for leaks. Look for anywhere water pools or seeps around the flange and joints. Clean out debris from the grate and ensure access remains clear for maintenance. Schedule periodic inspections and keep a simple maintenance kit on hand for quick repairs, such as replacing gaskets or resealing any worn joints.

Tools & Materials

Concrete saw or core drill(Essential for opening the floor to fit the drain)
Angle grinder with diamond blade(For smoothing edges and cutting openings)
Chisel or hammer drill(Helps with precise shaping and rebar avoidance)
Measuring tape and chalk line(Accurate layout is critical)
Drain body with flange and grate(Choose size based on load and pipe size)
PVC pipe and fittings(Match existing sewer/storm line connections)
PVC cement and primer(For secure, leak-free joints)
Gasket, sealant (silicone or polyurethane)(Waterproof seal around flange)
Bed material (sand or mortar bed)(Provides stable base for drain)
Trowel and rubber mallet(For bed and seating the drain)
Level and straightedge(Ensure flush install and proper slope)
Safety gear (gloves, eye protection, dust mask, hearing protection)(Protect yourself during cutting and grinding)
Cleaning supplies and shop vac(Keep site tidy for a proper seal)

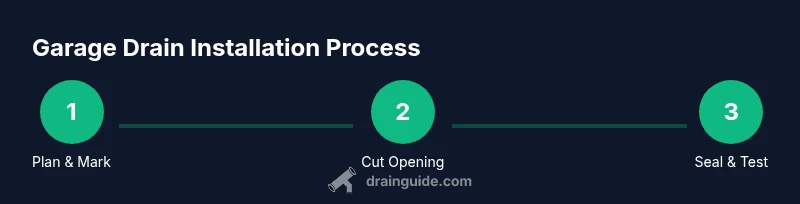

Steps

Estimated time: 3-6 hours

1
Plan and mark location
Decide the drain type (floor drain or trench) and mark the opening using a chalk line. Confirm access to the plumbing line and ensure the location won’t interfere with parking or storage. Take photographs of the area before cutting for reference.
Tip: Pro tip: set a temporary form or guide so the concrete cut is square and true.
2
Cut the opening
Using a concrete saw or core drill, create the opening to match the drain body. Keep cuts steady and avoid overcutting. Watch for embedded rebar and utilities and pause if needed to re-route.
Tip: Pro tip: wear a dust mask and use water to suppress dust during cutting.
3
Dry-fit the drain
Place the drain body into the opening to verify fit and flush alignment with the finished floor. Check that the slope from the opening toward the outlet is consistent across the entire area.
Tip: Pro tip: use a straight edge to confirm flush mounting and adjust bedding as needed.
4
Bedding and seating
Apply bedding material (sand or mortar) to the base, then seat the drain body. Tap gently with a rubber mallet to achieve a firm, even seating and correct height relative to the final floor surface.
Tip: Pro tip: avoid gaps under the flange by filling evenly around the base.
5
Connect the drain pipe
Attach PVC fittings to the drain outlet and connect to the existing line with gradual bends. Use primer and cement for strong, leak-free joints. Check alignment before fully tightening.
Tip: Pro tip: dry-fit first to ensure alignment before gluing.
6
Seal and secure
Apply gasket and appropriate sealant around the flange. Ensure the drain is level and firmly seated, with no movement. Clean excess sealant and wipe surfaces clean.
Tip: Pro tip: use backer rod at joints where movement may occur to prevent cracking.
7
Test for leaks
Slowly run water through the drain and inspect all joints for leaks. If any seepage appears, reseat or reseal the affected area. Let the sealant cure according to the product instructions.
Tip: Pro tip: test with the entire drainage load to simulate real conditions.
8
Finish and cleanup
Fill any remaining gaps with sealant, cure concrete if needed, and replace any removed flooring materials. Document the work and keep maintenance supplies handy for future repairs.
Tip: Pro tip: label the drain’s cleanouts for easy future access.

Pro Tip: Wear PPE and work in a well-ventilated area when cutting concrete.

Warning: Never cut near gas lines or live electrical conduits; locate utilities before cutting.

Note: Ensure the drain opening is square and the grate sits flat to avoid tripping hazards.

Pro Tip: Use a level and straightedge to verify the final surface is flush with surrounding concrete.

Got Questions?

Do I need a permit to install a garage floor drain?

Permits vary by location. Check with your local building department; larger penetrations or trench drains more commonly require permits. A licensed contractor can help determine if a permit is needed.

What size drain should I install for a typical garage?

Choose a size based on anticipated water flow and the pipe capacity of the connection. A common residential option suits standard washdowns, but high-use garages may need a larger unit or a trench drain.

Can I install a drain without cutting concrete?

In most cases a new floor drain requires cutting or core drilling to create the opening. Unless you’re retrofitting a basement with an existing channel, cutting is usually necessary.

What slope should garage drains have?

Follow local code requirements and ensure the drain is positioned to promote gravity-driven flow toward the outlet. Avoid flat sections that lead to standing water.

How do I connect the drain to the house sewer or storm line?

Use compatible fittings and ensure cleanouts are accessible. Use primer and solvent cement for PVC joints and verify proper alignment before final connection.

Trench drains vs floor drains: which is better for garages?

Trench drains handle higher runoff and longer runs but require more installation work. Floor drains are simpler and adequate for typical household garages. Choose based on how water flows and space available.
