You will learn to install a gravel french drain to redirect groundwater away from foundations and toward an appropriate outlet. This quick guide covers site assessment, trench planning, material choices, proper installation steps, and simple maintenance practices to keep the drainage system working effectively year after year. Whether you're new to DIY or refreshing an aging landscape, the method remains practical.
What is a gravel french drain and when to use it
A gravel french drain is a trench filled with coarse gravel and a perforated pipe that carries surface water and groundwater away from structures. The gravel provides a porous medium that slows water, encourages filtration, and reduces hydrostatic pressure against foundations. The perforated pipe collects water from the gravel and directs it to an outlet such as a downspout, dry well, or natural drainage line. This approach is versatile for sunken yards, basements near the soil line, and walkways with drainage issues, and it can be installed along driveways or around foundations. For homeowners dealing with clay soils, standing water in low spots, or frequent gurgling drains, a gravel french drain offers a practical, low-maintenance solution. Drain Guide notes that a properly designed gravel french drain can improve soil stability and prevent surface erosion, while remaining compatible with most residential landscapes. While not a cure-all, when well-planned, it provides a reliable path for water and minimizes erosion on slopes. According to Drain Guide, the simplest versions use a trench with 4-6 inches of drainage gravel and a perforated pipe to collect water and channel it to an outlet.
Site assessment and planning
Before digging, observe how water flows across the property during rainfall. Identify high- and low-points, potential outlets, and where runoff ends up. Measure the distance to a suitable discharge point, keeping it away from foundations, walkways, and utility lines. Check local codes and consider obtaining permits if needed; in many areas, a gravel french drain is treated as a landscape improvement rather than a plumbing project. Plan for the outlet to release water at a safe distance from structures, and account for soil type (sand, loam, clay) because it influences infiltration rate and trench depth. Drain Guide recommends mapping the trench path with string and marking paint to ensure straight runs and correct slope. Establish a modest personal project scope to avoid over-digging and to minimize disruption to existing plantings and irrigation lines.
Trench design and layout
A gravel french drain should have a slight downward slope toward the outlet to enable continuous drainage. Typical trench dimensions range from 6 to 8 inches wide and 18 to 24 inches deep, with a 0.5–1% grade (about 1/8 inch per foot) toward the outlet. The trench should follow the contour of the land where possible to avoid creating new low spots. If long runs are needed, consider breaking the line into shorter segments with cleanouts for easier maintenance. Always align the trench to avoid crossing under permanent structures or utilities. Drainage theory suggests keeping the trench away from the foundation’s footing line to prevent infiltration and possible settlement.
Laying the perforated pipe and gravel
Start by laying a base layer of clean, coarse gravel to create a stable bottom. Place the perforated pipe with holes facing down toward the base gravel to maximize water collection. Extend the pipe to the outlet, using elbows and tees only where needed to maintain a continuous flow path. After placing the pipe, cover it with more gravel until the pipe is well above the trench bottom but still below the surface grade to ensure proper drainage. If you’re working in heavy clay soil, this configuration helps water move through the system rather than bypass it. Drain Guide emphasizes ensuring pipe alignment remains straight and free of kinks during this step.
Filter fabric and drainage media
Position geotextile filter fabric along the trench to reduce silt intrusion without impeding drainage. The fabric should extend beyond the trench edges so it can be folded back over the gravel as you backfill. Avoid using generic trash bags or non-permeable membranes; choose a fabric designed for subsurface drainage with adequate pore size. Add a layer of drainage gravel above the pipe, ensuring there are no sharp bends that could pinch the flow. The fabric helps maintain long-term performance by preventing sediment from clogging the gravel and pipe network.
Outlets and discharge options
Select a safe outlet location that directs water away from foundations and walkways, ideally daylighting to a natural depressional area or a dry well. If you cannot discharge to an open area, connect the system to an existing storm drain or downspout extension, ensuring you don’t overload municipal systems. Include a cleanout access point at strategic locations to facilitate inspection and maintenance. Drain Guide notes that a well-planned outlet arrangement reduces the risk of groundwater pooling near foundations and minimizes erosion at discharge points.
Backfilling, compaction, and cover
Backfill the trench with soil in layers, lightly compacting after each layer to avoid future settling that could collapse sections of the drain. Restore the surface with soil and turf or mulch to blend with the landscape; avoid heavy compaction on top of the trench seal. If the surface needs mulch or turf, install it after a short testing period to confirm the drain is functioning as intended. A light final rake will help restore aesthetics while preserving the trench’s airflow and drainage capacity.
Maintenance, troubleshooting, and common mistakes
Test the system after heavy rainfall by inspecting the outlet and watching for surface pooling. Common mistakes include over-trenching, using improper fabric, or failing to maintain the outlet area. Regular maintenance involves clearing debris from the outlet, re-checking the trench slope, and topping up drainage gravel if settling occurs. Beware of compacting soil too aggressively near the drain; this can restrict water flow and reduce efficiency. Drain Guide recommends periodic inspections, especially after weather events, to catch issues early and extend the drain’s life.
Budget and cost considerations
Costs for a gravel french drain vary with length, soil conditions, and material choice, but the broader takeaway is that longer runs and difficult soils increase both material costs and labor time. Plan for base materials (gravel, pipe, fabric) and surface restoration, including potential landscaping work. Consider renting trenching tools for large projects to save time, but also factor in disposal and site cleanup. Rather than focusing on a single price, evaluate the project in terms of per-foot cost and overall scope, using a clear plan to avoid scope creep.
Environmental and safety considerations
Always call local utility services (811 in the U.S.) before digging to avoid striking buried lines. Wear proper safety gear—gloves, eye protection, sturdy boots—and use trench safety practices to reduce the risk of collapse. The trench should be stabilized and inspected after completion, especially if it lies under zones with high foot traffic or near structures. Consider local rain patterns and soil permeability; in permeable soils, drainage may work faster, while in clay soils it may require larger volumes of gravel and longer runs for effective relief. Drain Guide reminds homeowners that proper planning significantly reduces the risk of future drainage problems and protects foundations from water-related damage.
Tools & Materials
- Gravel (coarse aggregate, 3/4 inch or 19mm minimum)(Base layer and backfill; avoid highly clayey or fines-rich gravel that can clog.)
- 4-inch perforated drainage pipe (HDPE or PVC)(Slotted holes face down toward the gravel; run slope toward outlet.)
- Geotextile filter fabric(Choses pore size appropriate for subsurface drainage; overlaps edges.)
- Shovel and trenching tool(For precise trenching and site preparation.)
- Measuring tape and marking paint(Mark trench line, slope, and outlet location before digging.)
- Landscape fabric or landscape pins(Optional for additional edge stabilization and weed suppression.)
- Safety gear (gloves, safety glasses, sturdy boots)(Essential for personal protection during excavation.)
- Outlet flood cap or cleanout fittings(Useful at retention points or junctions for maintenance.)

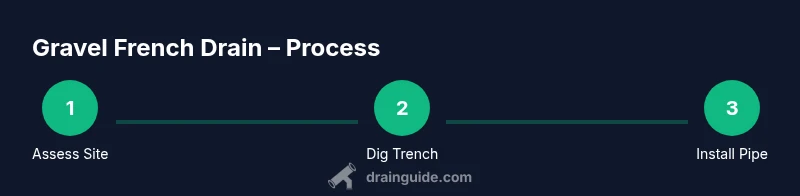

Steps
Estimated time: 2-6 hours
- 1
Assess site and plan path
Survey the area to identify runoff paths and potential outlet locations. Mark the intended trench line with string and spray paint, ensuring a gentle slope toward the discharge point. Verify utilities are clear and that the planned route avoids foundations and irrigation lines.
Tip: Call 811 before you dig to avoid buried utilities. - 2
Mark trench line and outlet
Place stakes at each end of the trench and along its length to guide digging. Sketch a simple plan showing where the trench starts, winds (if any), and where the water will exit. Double-check that the outlet point is accessible for maintenance.
Tip: Use a level or string line to keep the trench straight and evenly sloped. - 3
Dig the trench
Dig a trench 6-8 inches wide and 18-24 inches deep, following the marked line. Keep the trench bottom slightly uneven to promote water contact with the base gravel. Create a consistent 0.5-1% slope toward the outlet.
Tip: Avoid digging under concrete or foundations; if unavoidable, adjust plan to run adjacent to structures. - 4
Create a base and lay gravel
Add a 2-4 inch base layer of clean gravel to create a stable bottom. The base helps distribute water evenly and prevents pipe damage. Check that the trench bottom remains level after adding the base.
Tip: Use crushed stone with angular edges for better drainage and stability. - 5
Install geotextile fabric
Line the trench with fabric, allowing extra fabric to fold over the sides. This prevents fine soils from entering the gravel while letting water pass. Do not stretch fabric too tight; it should drape naturally over the base.
Tip: Edge overlaps should be at least 6 inches to prevent soil intrusion. - 6
Place perforated pipe
Position the perforated pipe along the trench, holes facing down toward the base gravel. Ensure the pipe runs continuously to the outlet with no kinks. Keep pipe joints accessible for future maintenance.
Tip: Use cleanouts at strategic points to simplify inspection. - 7
Cover pipe with drainage gravel
Pour enough gravel over the pipe to fully cover it and create a similar height to the trench bottom. Leave space for the fabric to fold back over the gravel without bunching. This layer should promote rapid water transfer into the pipe.
Tip: Avoid sharp burrs on pipe edges that could damage the fabric. - 8
Fold fabric and continue backfill
Fold the fabric over the gravel and continue backfilling with soil, tamping lightly after each layer. Preserve surface grade so runoff remains directed toward the trench rather than pooling on the surface. Batched backfill reduces sagging and keeps the drain intact.
Tip: Backfill in stages to minimize settlement and maintain drainage efficiency. - 9
Finish and test
Restore the surface with soil and vegetation, or install pavers or mulch as desired. Test the drain after a rainfall or by simulating water to confirm discharge at the outlet. Monitor for any signs of pooling or slow flow and adjust as needed.
Tip: Recheck slope after heavy rain to ensure continued drainage.
Got Questions?
What is a gravel french drain?
A gravel french drain is a trench filled with coarse gravel and a perforated pipe that redirects groundwater away from structures. It filters out sediment and conveys water to an outlet, such as a dry well or storm drain. It’s a practical, low-maintenance solution for many drainage problems.
A gravel french drain is a trench filled with gravel and a perforated pipe that redirects groundwater away from your home to a safe outlet.
How deep should the trench be for a gravel french drain?
Aim for a trench depth of about 18 to 24 inches, depending on soil type and groundwater flow. Deeper trenches handle higher water volumes but require more effort to install. Maintain a gentle slope toward the outlet to ensure continuous drainage.
Typically, about 18 to 24 inches deep, with a slight slope toward the outlet.
What size pipe should I use?
A common choice is a 4-inch perforated pipe, which balances flow capacity and ease of handling for most residential runs. Longer or wetter installations may benefit from larger diameter pipe, but 4 inches is a solid standard for many projects.
Most people use a 4-inch perforated pipe for standard residential drains.
Do I need filter fabric for a gravel french drain?
Yes. Geotextile filter fabric helps prevent soil from clogging the gravel and pipe. It should be permeable enough to allow water through while blocking fine particles from entering the trench.
Yes, you should use filter fabric to keep the drain from clogging over time.
How long will a gravel french drain last?
With proper planning, materials, and maintenance, a gravel french drain can provide reliable drainage for many years. Regular checks after heavy rain help catch clogs or settling before they become major issues.
With good maintenance, it can last many years.
Watch Video
The Essentials
- Plan the path and outlet before digging.
- Use proper materials and maintain a steady slope.
- Place fabric and pipe correctly to prevent clogging.
- Test after rainfall and perform regular maintenance.
- Document and monitor for changes in drainage over time.
