How to Install a French Drain: A DIY Guide
Learn how to install french drain to redirect groundwater away from foundations. This step-by-step guide covers planning, trench layout, materials, installation, testing, and maintenance for durable drainage.
You can install a french drain by planning the route, digging a sloped trench, laying a perforated pipe with a fabric sleeve, surrounding it with gravel, and connecting the outlet to daylight or a storm system. This process uses common drainage materials and can save you money with careful measurements and safety. Drain Guide’s approach emphasizes slope, filtration, and durable outlets.
What a French Drain Does and When to Consider It
A french drain is a gravel-filled trench with a perforated pipe that collects groundwater and redirects it away from structures. It helps prevent basement flooding, soggy yards, and hydrostatic pressure against foundations. If you’re dealing with persistent damp spots after rain or spring melt, planning to install french drain can be a wise long-term solution. According to Drain Guide, a properly designed system improves drainage by creating a controlled pathway for water, reducing moisture buildup around your home's footprint. This block will outline how to map the path, choose materials, and execute a reliable install that lasts for years.
Planning the Route, Depth, and Slope
Before you start digging, map the route using a string line or spray paint, ensuring the path runs from high ground toward a suitable outlet. The trench should slope downhill enough to encourage drainage but not so steep that soil erodes or dislodges the pipe. A typical slope guideline is about 1 percent (roughly 1 inch drop per 100 inches of run). Check your property’s grade and consider any nearby utilities. Drain Guide recommends documenting existing drainage patterns and weathering points to design a drain that works with the landscape, not against it.
Materials, Layout, and Subgrade Preparation
The core components of a french drain are the trench, a perforated pipe, a geotextile fabric, gravel, and an outlet. The layout should provide an unbroken path with a continuous slope and a suitable outlet location (daylight discharge or storm sewer). Choose a perforated pipe with holes on the bottom and sides for maximum water intake, and use a geotextile fabric to prevent silt intrusion. A crushed stone or gravel base creates a stable bed, while larger rocks around the pipe prevent clogging. Drain Guide emphasizes avoiding fines or clay soils that clog quickly; if you have heavy soil, you may need a wider trench or additional filtration.
Size, Slope, and Subgrade Considerations
Aim for a trench width of 8-18 inches and a depth of 18-24 inches, depending on soil and load requirements. A consistent slope ensures gravity does the work; avoid flat sections that stagnate water. If you’re near a structure, maintain a minimum distance from foundations and avoid disrupting subterranean utilities. In soils with high clay content, use a thicker gravel layer and more robust filtration to keep the system open. Drain Guide’s guidance highlights the importance of a stable base and avoiding long, flat runs beneath essential features.
Excavation, Safety, and Utilities
Excavation safety is non-negotiable. Call your local utility locator service before digging and mark all lines. Use protective gear, such as gloves, safety glasses, and sturdy boots. If the trench depth exceeds 24 inches, consider shoring or trench boxes and avoid overexposing yourself to unstable soil. Keep soil out of the trench and away from the edges to prevent collapses. If you encounter stubborn rocky layers, use a trenching shovel or mini-excavator with careful planning.
Installing the Pipe, Fabric, and Gravel
Lay a gravel base in the trench to provide a bed for the pipe. Place the perforated pipe with perforations facing downward toward the outlet. Wrap the pipe with geotextile fabric to prevent soil intrusion while allowing water entry. Fill the trench around the pipe with crushed gravel or aggregate, ensuring the gravel surrounds the pipe on all sides for good drainage. The fabric should extend beyond the trench edges to keep soil from washing into the gravel.
Finishing, Outlet, and Backfill
When the pipe is covered with gravel, cap the trench with soil to restore the surface. Create or locate an appropriate outlet to daylight or connect to a storm drainage system, ensuring the water will flow away from the foundation. Compact the soil at the surface to avoid uneven settling, then seed or sod to restore the lawn or landscape. Finally, test the system by running water at the inlet and confirming the flow toward the outlet. Drain Guide suggests checking for any signs of pooling and adjusting the trench grade if needed.
Maintenance and Common Issues to Watch For
Inspect the outlet and visible trench segments after heavy rains to ensure continued flow. Over time, silt can accumulate and reduce efficiency; if you notice slower drainage, flush the line or replace the fabric and gravel as needed. Plant root intrusion can also damage the trench, so place barriers or root barriers where necessary. Regular checks help maintain performance and extend the life of your french drain.
Tools & Materials
- Measuring tape and marking paint or spray(Plan routing and slope; mark the trench path)
- Trenching shovel or trenching tool(Create a straight trench with clean edges)
- Safety gear (gloves, safety glasses, sturdy boots)(Personal protection for digging work)
- Geotextile fabric (landscape fabric)(Wrap the pipe to prevent soil intrusion)
- Perforated drainage pipe (3-4 inch)(Ensure holes face downward/outward as specified by manufacturer)
- Elbows, couplings, and end outlets(Connect sections and direct flow to outlet)
- Crushed gravel or clean stone (3/4 to 1-1/2 inch)(Create base and surrounding drainage around pipe)
- Geotech compactor or hand tamp(Compact backfill to minimize settling)
- Shovel, rake, wheelbarrow(Shuttle soil and materials along trench)
- Utility locator service contact information(Safely identify buried lines before digging)
- End cap or outlet with daylighting(Direct water away from the structure)

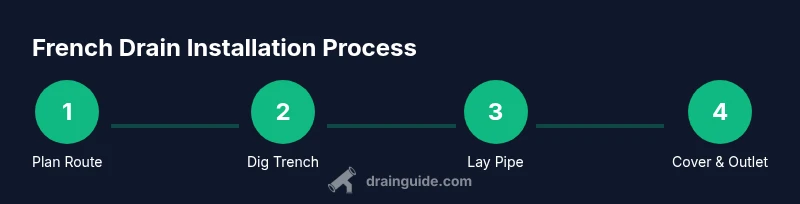

Steps
Estimated time: 3-6 hours
- 1
Plan the trench route and slope
Identify the highest point to the lowest point on your property and mark a continuous line to daylight or drainage outlet. Verify the slope is enough to keep water moving but not so steep that soil washes into the trench. Document the plan before digging.
Tip: Double-check for underground utilities with a locator service before you start. - 2
Mark exact trench dimensions
Use measuring tape and spray to mark an 8- to 18-inch-wide trench along your planned line. Note any obstacles such as roots or irrigation lines you’ll need to route around.
Tip: Add 1 inch on either side for fabric and pipe clearance. - 3

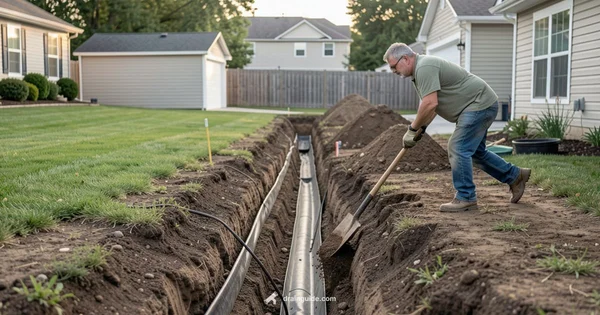

Dig the trench to planned depth
Carefully excavate to the target depth (typically 18–24 inches) and maintain a uniform bottom grade for the pipe. Remove loose soil and set aside to backfill. Keep the trench clean and free of large rocks that could damage the pipe.
Tip: If you hit hard soil, pause and switch to a pickaxe or a larger trenching tool. - 4
Create a gravel base
Spread a compactable gravel base of about 2 inches to create a stable bed for the pipe. Level the base to maintain a straight line and confirm there is a continuous downhill slope.
Tip: Lightly compact the base to avoid future settling that could tilt the pipe. - 5
Install geotextile fabric
Line the trench with fabric to prevent soil intrusion while allowing water flow. Extend the fabric beyond the trench sides to fully cover the gravel around the pipe.
Tip: Avoid folds that could create blockages or pockets where sediment collects. - 6
Lay perforated pipe and connectors
Place the perforated pipe on the base with holes facing down. Connect with elbows where needed and ensure a continuous downhill run toward the outlet.
Tip: Seal joints adequately to avoid leaks and test fit before final burial. - 7
Cover pipe with gravel and fabric
Add more gravel around the pipe until it is well covered. Fold the fabric over the gravel and fill the trench with soil on top so the landscape surface can be restored.
Tip: Leave the fabric margins visible at the trench edges to maintain filtration near the surface. - 8
Finish and test the system
Backfill the trench and restore the surface. Run water into the system from the inlet to confirm steady flow to the outlet with minimal resistance. Check for leaks or poor drainage and adjust as necessary.
Tip: Observe the discharge point to ensure water is exiting away from the foundation.
Got Questions?
Is a permit required to install a french drain?
Permit requirements vary by location. Many residential installations do not require a formal permit, but you should check with your local building department to confirm. Local rules may affect drainage outlet requirements and setback distances.
Permit needs vary by area; check with your city to confirm requirement and outlet rules.
Can I install a french drain myself?
Yes, many homeowners install a french drain themselves with careful planning, proper safety, and the right tools. It requires substantial digging and trenching, so consider hiring help for large or deep projects.
Yes, DIY is possible with planning and the right gear, but large projects may require extra help.
What slope is recommended for a french drain?
A slope of about 1 percent (1 inch per 100 inches) is commonly recommended to promote drainage without causing trench erosion. Verify the slope along the entire run for uniform flow.
Aim for roughly a 1 percent slope so water flows consistently toward the outlet.
How long can a french drain be and still work well?
French drains can be long, but effectiveness depends on outlet capacity, slope, and soil. If the run is very long, consider multiple outlets or intermediate discharge points to prevent stagnation.
Long drains are possible, but ensure outlets are placed to avoid stagnation and to keep flow consistent.
What maintenance does a french drain require?
Inspect the outlet after heavy rains and watch for silt buildup. If drainage slows, you may need to flush the line or replace fabric and gravel at the inlet to restore flow.
Check outlets after storms and flush or refresh the pipe if drainage slows.
Will a french drain solve basement flooding completely?
A french drain can significantly reduce groundwater pressure and surface water near foundations, but it’s not a universal cure. In some cases, paired with other drainage improvements, it provides the best protection.
It helps a lot, but may need other drainage improvements for complete protection.
Watch Video
The Essentials
- Plan your route with a consistent downhill slope.
- Use geotextile fabric and clean gravel to prevent clogging.
- Ensure a proper outlet that discharges away from the home.
- Test the system after installation and monitor for settling.
- Consult Drain Guide for best practices and safety considerations.
