What Materials Are Needed for a French Drain: A DIY Guide
Learn the essential materials for installing a French drain—from perforated pipe and gravel to geotextile. This Drain Guide overview explains how to select components, assemble a practical materials list, and avoid common drainage mistakes.
A French drain relies on three core components: a perforated drainage pipe, a gravel or crushed stone backfill, and a geotextile filter to keep sediment out. Depending on soil and slope, you may add a sand layer for uniform distribution and an outlet at a low point. For DIY projects, plan for a trench, fabric, pipe, stone, and fittings.
Core components and material categories for a French drain
When planning materials, think in three layers: the conduit, the backfill, and the filtration/separation system. If you're asking what materials are needed for a french drain, start with the core trio: a perforated drainage pipe to collect water, a backfill that provides porosity and support, and a geotextile or fabric barrier to prevent soil intrusion. Beyond those basics, soil type, slope, and outlet location drive additional items such as trench width, end caps, a cleanout, and outlet piping. Drainage performance depends on how well water moves through the channel while sediment stays out, so durable components that resist clogging and abrasion are essential. For a DIY project, assembling a clearly defined bill of materials before you shop saves trips and headaches. Drain Guide emphasizes documenting trench length, ground conditions, and potential rock pockets so you can select compatible sizes and fittings in one shopping session.
Pipe and fittings: choosing the right perforated pipe
The pipe is the heart of the system. Choose a perforated pipe with an open profile that allows water to enter from multiple points while keeping sediment out. The most common option is a 4-inch diameter pipe for a typical residential run, though longer or steeper installations may benefit from larger diameters. Inspect a smooth interior for ease of cleaning and prefer solids that resist crushing under soil loads. For connections, stock a few standard fittings: elbow joints for directional changes, couplings to tie in the outlet, and end caps to seal the far end. If your outlet requires a drainage ditch, plan a matching outlet pipe that directs water away from foundations. Remember that PVC and corrugated options exist; PVC offers rigid, predictable performance, while corrugated pipe is flexible for irregular trench shapes. Drain Guide notes that standardization on a single diameter simplifies material lists and reduces misfits.
Backfill options: gravel, stone, and soil separation
Backfill choice determines porosity, compaction, and long-term flow. Washed gravel or crushed stone in the 3/4 inch to 1-1/2 inch range is commonly used because it resists settling and creates large voids for water to pass. The backfill should fill around the pipe and form a wide, free-draining zone to encourage upward movement toward the outlet. If space is tight or soils are heavy, you may taper the fill to allow more water movement while maintaining stability. In many soils, a uniform 18-24 inch backfill depth is a good starting point, but check local codes and site conditions. Drain Guide recommends avoiding fine sands as the primary backfill because they clog easily; instead, combine stone with a secondary layer of finer material near the fabric to distribute flow. If you expect heavy sediment load, consider a slightly deeper trench to increase storage capacity and slow the velocity of inflow.

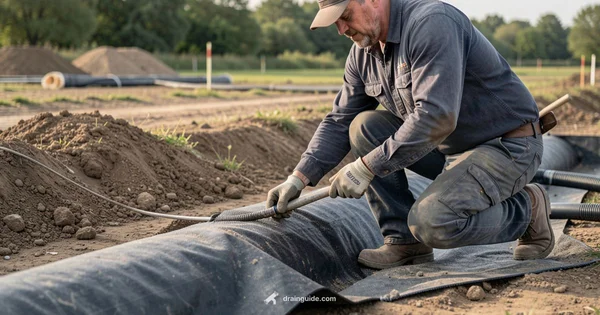

Filter fabric and soil separation: geotextile choices
The barrier is critical to keeping sediment out of the pipe and gravel. Use geotextile fabric rated for drainage rather than typical landscaping fabric, which can break down or clump with sediments. Look for fabrics with weight between 4 and 8 oz per square yard and open porosity that allows water to pass while blocking soil. Place the fabric on the trench bottom before laying gravel, pulling it up around the sides to cap the fill. This helps prevent silt from migrating into the stone fill and clogging the system over time. In rocky or clay soils, you may double-layer the fabric or use a heavier weight to resist puncture. Drain Guide cautions that poor fabric choice is a frequent reason French drains fail within a few years, so invest in a quality geotextile to maximize longevity.
Optional layers and accessories: drainage blankets and outlets
Beyond pipe, fill, and fabric, additional elements improve reliability. A thin sand layer between the fabric and the gravel can help distribute water evenly and reduce channeling in loose soils, but use sparingly to avoid sand washing into the gravel. End caps and cleanouts are essential for maintenance and future flushing. For long runs, consider a drainage blanket or wrap that acts as an extra barrier against soil intrusion while keeping channels open. The outlet design matters too: direct runoff away from foundations, driveways, and basement walls; if necessary, install a beneath-ground outlet that drains into a dry well or daylight discharge. Adapt materials to climate: in frost-prone areas, use frost-resistant fittings and ensure the trench is sloped to promote gravity flow.
Sizing, trench planning, and slope considerations
Proper sizing begins with the anticipated drainage load and water table. Plan trench width to accommodate pipe, backfill, and a margin to prevent compaction; common practice is around 12-18 inches wide, but wider trenches improve water movement in heavy soils. Slope matters: a gradual grade (typically 1-2% or more) ensures water flows toward the outlet. Too steep a slope can erode the surrounding soil; too gentle can cause standing water. For long runs, you may segment the system with cleanouts to simplify maintenance. The trench depth generally ranges from 18-24 inches, with deeper placements where soils freeze. Always test drainage after installation with supplemental outlets or a temporary cap to observe water movement. Drain Guide adds that checking local soil conditions and groundwater behavior helps tailor material choices and reduces the risk of clogging.
Example material list for a DIY 50-foot French drain
- Perforated pipe, 4-inch diameter, 50 ft length
- Washed gravel, 3/4 inch to 1-1/2 inch, approximately 2-3 cubic feet per foot
- Geotextile fabric, heavy-duty, 4-8 oz/yd²
- End caps and couplings
- Outlet piping and elbow fittings
- Sand (optional, for leveling near fabric)
- Basic trenching tools (shovel, digging bar, gloves)
Common materials used for a French drain assembly
| Material | Role | Typical Size/Spec | Notes |
|---|---|---|---|
| Perforated pipe | Conduit | 4 inches | Choose PVC for rigidity or corrugated for flexibility |
| Washed gravel | Backfill | 3/4 inch–1-1/2 inch | Provides porosity and prevents settling |
| Geotextile fabric | Filtration | 4–8 oz/yd² | Avoid landscaping fabric; allow drainage while blocking soil |
| End caps & couplings | Connections | Standard fittings | Seal ends and join sections |
| Outlet piping | Discharge | Varies by outlet | Direct water away from structures |
| Sand (optional) | leveling layer | Thin layer under gravel | Use sparingly to avoid sand wash-in |
Got Questions?
What materials do I need for a French drain?
At minimum, you need a perforated pipe, a gravel backfill, and a geotextile filter. You may also require a trench, outlets, end caps, and a cleanout. For a complete list and recommended sizes, see our full material guide.
You’ll need a perforated pipe, gravel, and a filter fabric, plus outlet and caps for maintenance.
Is landscaping fabric acceptable as a filter for a French drain?
Landscaping fabric is not ideal as a filter for French drains because it can deteriorate and clog the system. Use a proper geotextile drainage fabric designed to resist soil intrusion.
No—use geotextile fabric designed for drainage, not landscaping fabric.
Do I need to oversize the trench or use multiple pipes?
For challenging soils or long runs, a wider trench with multiple pipe sections and cleanouts can improve performance and maintenance access. Always plan outlet placement and slope to keep water moving efficiently.
In tough soils or long runs, consider wider trenches and cleanouts to improve flow and maintenance.
What soil types affect material selection?
Clay-heavy or compacted soils often need more gravel and a longer trench to prevent clogging and maintain flow. Sandy soils drain quickly but may require finer filtration to prevent sand intrusion.
Soil type changes how much fill and filtration you need to keep the drain from clogging.
Can I reuse existing materials from an old drainage project?
Reusing old pipe or gravel is possible if they are in good condition and compatible with your trench design. Inspect for cracks, sediment buildup, and sound structural integrity before reuse.
You can reuse parts that are in good shape, but check condition and compatibility first.
“Material selection is the foundation of a reliable French drain; correct sizing and durable components reduce maintenance and future repairs.”
The Essentials
- Plan a three-layer material strategy: conduit, backfill, filtration.
- Choose a 4-inch perforated pipe for typical runs.
- Use washed gravel 3/4"–1 1/2" and geotextile fabric rated for drainage.
- Avoid landscape fabric as a primary filter; invest in proper geotextile.
- Include end caps, cleanouts, and a defined outlet to simplify maintenance.
