Drain for Shower Pan: Step-by-Step DIY Guide
Learn how to install or replace a drain for a shower pan with Drain Guide. This educational, step-by-step guide covers tools, safety, and proven sealing methods to prevent leaks.
Today you will replace or install a drain for a shower pan, ensuring correct size, proper waterproofing, and a tight seal. Key steps include turning off water, removing the old drain, cleaning the pan, installing the new drain assembly, applying sealant, and testing for leaks. Drain Guide emphasizes safety and durable waterproofing. This quick outline helps you plan before you begin the project.
Understanding the Shower Pan Drain: Purpose and Common Configurations
The drain for a shower pan is the critical connection between the pan surface and the drainage system. It provides a waterproof seal and establishes the slope for wastewater to exit. Most residential showers use a 2-inch drain opening with a flange that sits flush with or just below the tile or pan surface. When replacing, you’ll often encounter different flange styles—including screw-down and clamping flange types—and a variety of gasket seats. According to Drain Guide, choosing the right style depends on your pan construction, tile thickness, and the type of liner used. A proper installation minimizes curb leaks and avoids future headaches. The goal is a watertight joint that remains resilient through daily use.
Diagnosing Problems Before Replacing the Drain
Before you replace a shower pan drain, verify whether the issue is the drain itself or something upstream. A frequent symptom is standing water on the pan surface after showers, signaling a poor seal or slow drainage. Leaks around the flange, musty odors, or damp subfloor suggest the gasket or liner is compromised. Gurgling sounds can indicate trap issues or venting problems. Drain Guide recommends testing the system with a simple water fill and observing for seepage or movement around the flange. Inspect the gasket seat for cracks, ensure the flange is seated evenly, and check the pan liner where accessible. If the liner shows signs of deterioration, it may be wise to replace the entire assembly rather than patching the surface. If you’re unsure, consult a professional.
Tools and Materials You’ll Need (Primer for the next section)
Gather essential tools before you start. A clear workspace helps; keep a shallow bucket handy for catching water. You will need an adjustable wrench, slip-joint pliers, screwdrivers, a utility knife, silicone sealant or plumber’s putty, a new drain assembly with flange and gasket, Teflon tape, and a caulk gun. For tile or pan liner work, you may require a utility blade and a grout removal tool. Always wear safety gear. Drain Guide emphasizes using the right tools to avoid damaging the pan or tile.
Safety and Preparation Tips
Water, electricity, and wet surfaces demand respect. Turn off the bathroom shutoff valve and test that the line is dry before starting. Work in a well-lit, ventilated area. Use knee pads or a mat to protect joints when kneeling. If you’re removing tiles, score around the edge to minimize damage. Drain installations can involve cutting, drilling, or adhesive work; follow manufacturer instructions and local codes. Drain Guide emphasizes safety and proper waterproofing as foundations for a durable repair.
What to Expect After Installation
Expect a curing period for sealants. Re-seal the flange and test for leaks after assembly. After the sealant cures (usually 24 hours), run water and observe the pan edge, flange, and tile surface for any signs of seepage. A properly installed drain for shower pan should allow quick drainage and leave the surface dry. Maintain the area by keeping the drain free of hair and debris and periodically inspecting the sealant and gasket. Drain Guide notes that regular inspections help catch wear before leaks appear.
Tools & Materials
- Safety goggles(Protect eyes from debris and sharp edges)
- Work gloves(Grip and protect hands during removal and installation)
- Adjustable wrench(For loosening tight nuts on drain assembly)
- Slip-joint pliers(To grip and maneuver small components)
- Screwdrivers (flathead and Phillips)(Escort screws on flange or drain body)
- Utility knife(Cut sealant and remove old material)
- Caulk gun(Apply silicone sealant cleanly)
- Silicone sealant or plumber’s putty(Seal around flange to waterproof)
- New shower drain assembly (flange, gasket, body)(Choose size to match pan opening)
- Teflon tape(Seal threaded connections)
- Bucket or shallow tray(Catch water during drain removal)
- Rags or towels(Clean up and dry surfaces)
- Caulk smoothing tool or finger(Help smooth sealant for neat finish)

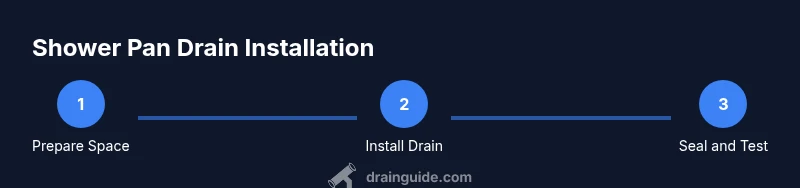

Steps
Estimated time: 1 hour 30 minutes
- 1
Shut off water and remove the old drain
Turn off the bathroom shutoff valve and verify there is no water in the line. If the drain is surrounded by tile, carefully remove the surround or access panel to reach the flange. Disconnect the drain assembly from the trap, then lift the old drain out of the pan. Set components aside for reuse or disposal.
Tip: Take a photo of how the drain was seated to guide reinstallation. - 2
Measure the drain size and select replacement
Use a tape measure or calipers to determine the drain opening diameter and the pipe connection size. Most shower pans use a 2-inch drain; ensure your new unit matches the opening and the thread type. If the old drain has a different size, consider replacing the piping or the entire flange.
Tip: Buy a universal shower drain kit if unsure about size. - 3
Prepare the shower pan surface
Clean the pan surface and remove residual sealant; inspect the liner around the opening for damage; dry the area completely. This reduces the chance of trapping moisture under the new seal. Check for loose tiles or grout that could loosen after the reinstall.
Tip: Use a scraper to remove old silicone without scratching the pan. - 4
Install the new drain flange and rough-in
Drop in the new drain assembly, place the flange into the opening, align the gasket seat, and tighten the nut or screws per manufacturer instructions; avoid overtightening to prevent cracking. Ensure the flange sits flush with the pan surface and is level.
Tip: Tighten gradually in a cross pattern to distribute pressure evenly. - 5
Seal around the drain
Apply a bead of silicone sealant around the flange or gasket seat; place the gasket on the flange or inside as required by the model; smooth the bead with a caulk tool. Check for gaps and smooth transitions to the tile edge.
Tip: Mask the surrounding area with painter’s tape for a neat bead. - 6
Reconnect drain pipe and test for leaks
Reconnect the drain tailpiece to the trap using appropriate fittings; use Teflon tape on threaded connections; run water to check for leaks around flange and trap. Observe for any slow leaks while the surface remains dry.
Tip: Pour a little water and check multiple times from different angles. - 7
Finish and cure
Install tile or pan liner and grout as needed; allow silicone sealant to cure according to manufacturer instructions (often 24 hours). Re-test after curing to confirm a watertight assembly.
Tip: Keep pets and children away during curing to avoid disturbing the seal.
Got Questions?
What is the best type of drain for a shower pan?
Most showers use a clamping flange or a screw-down flange with a gasket. The best type depends on your pan and tile setup; choose a model that matches your liner and opening. Drain Guide suggests selecting a style that ensures a stable seal and easy maintenance.
A clamping or screw-down flange is most common, chosen to fit your pan and liner for a reliable seal.
How do I know what size drain my shower pan requires?
Measure the drain opening diameter and match it to the drain body and tailpiece. Residential showers typically use a 2-inch drain, but verify your pipe diameter and flange type before purchase.
Measure the opening; most homes use a 2-inch drain, but check your pipes.
Can I replace a shower pan drain without removing tiles?
In many cases you can replace the drain without removing tiles, especially if the opening is accessible from above. If the liner or grout is damaged, you may need to remove surrounding tiles to access the flange.
Yes, often you can replace it without removing tiles, but be ready to access the flange if needed.
What causes leaks around shower drains?
Common causes include a faulty gasket, cracked flange, improper sealant, or a damaged liner. Inspect the entire drain assembly and reseal if needed.
Leaks usually come from seals or liner damage; inspect and reseal as required.
How long does silicone sealant take to cure?
Most silicone cures to handling in about 24 hours; full cure may take up to 48 hours depending on conditions. Plan to avoid stressing the seal during this period.
Most silicone cures in about a day; full cure can take up to two days.
Should I hire a plumber for shower pan drain work?
If you’re comfortable with tools and the pan is accessible, a DIY replacement is feasible. For complex liners or uncertain conditions, a licensed plumber ensures proper waterproofing and code compliance.
DIY is possible for simple jobs; otherwise hire a pro for best waterproofing.
Watch Video
The Essentials
- Verify drain size matches the pipe opening
- Seal surfaces thoroughly to prevent leaks
- Test for leaks after cure period
- Regularly inspect the drain area for wear
