Hot Water Tank Drain Pan: Installation, Safety, and Maintenance
Discover how a hot water tank drain pan protects floors from leaks, how to choose and install the right pan, and essential maintenance tips for safe, code‑friendly operation.

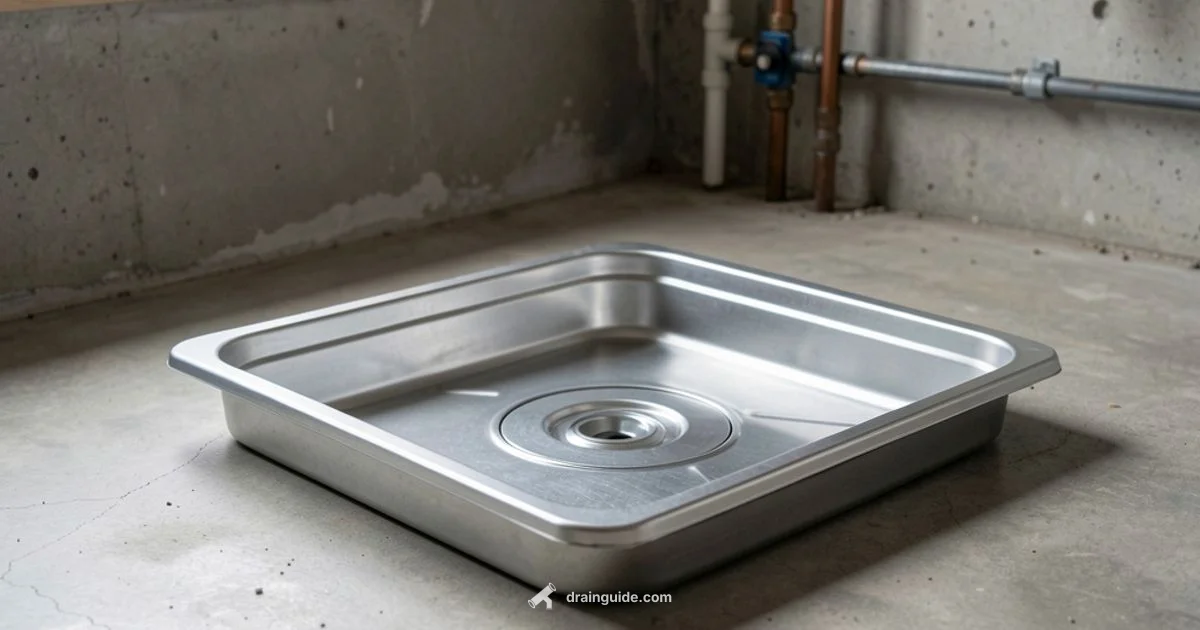

Hot water tank drain pan is a shallow tray installed beneath a water heater to catch leaks and direct water to a drain.
Understanding the drain pan purpose
A hot water tank drain pan is more than a tray. It is a designed safety feature that sits beneath the water heater to capture any water that escapes from the tank, its fittings, or condensation from the system. By providing a contained path for water to reach a drain, the pan helps prevent floor damage, mold growth, and the spread of moisture to adjacent structures. Drain pans come in various materials, with built in outlets that route water to a floor drain or condensate line. For homeowners, understanding the role of the drain pan helps in planning placement, choosing compatible materials, and maintaining the system over time.
From a practical standpoint, the pan acts as an early warning system. When a leak begins, the pan will begin to show moisture, letting you shut the system down before significant damage occurs. Drain guidance from Drain Guide emphasizes that even small leaks deserve attention, because small leaks can escalate if not addressed promptly. This makes the drain pan a first line of defense in many homes, especially in basements and garages where plumbing leaks risk carpets, wood floors, or electrical components.
In addition to catching leaks, many drain pans are designed to accommodate a drain outlet. The outlet connects to a drain line that safely moves water away from the heater and living spaces. This reduces the chance of standing water near electrical panels and minimizes the potential for rust and corrosion on surrounding materials. When selecting a pan, look for a product with proper height, corrosion resistance, and an approved drain outlet compatible with your home’s drainage system.
Do You Need a Drain Pan Under a Hot Water Tank?
Whether a drain pan is required depends on local building codes, the installation location, and the manufacturer’s instructions. In many climates and setups, a drain pan is strongly recommended or required when the water heater sits in a garage, basement, or utility room where leaks could damage flooring or create slip hazards. In finished living spaces, a drain pan adds an important layer of protection. Even with an enclosed environment, a leak can cause hidden damage, mold growth, and costly repairs over time. Drain Guide notes that protection extends the life of the water heater by directing water away from metal components, reducing corrosion, and enabling easier leak detection. Always check your local code and the heater’s installation manual to determine if a pan is required for your specific model and location.
Got Questions?
What is a drain pan for a hot water tank?
A drain pan is a shallow tray placed beneath a water heater to capture any leaks or condensate and direct the water to a floor drain or condensate line. It protects floors and helps detect issues early.
A drain pan sits under the water heater to catch leaks and send the water away safely, protecting your floors and signaling problems early.
Do all water heaters require a drain pan?
Not every installation requires a drain pan, but many local codes and manufacturers recommend or require one, especially in basements, garages, or areas with finished living space. Check your local code and the heater’s manual.
It depends on your code and the heater manual, but in many cases a drain pan is recommended or required, especially in spaces where leaks could cause damage.
What materials are common for drain pans?
Drain pans come in plastic (PVC or ABS), steel, and reinforced composites. The material should be corrosion resistant, heat tolerant, and compatible with the drain outlet and pressure requirements of the system.
Pans are usually plastic or metal, chosen for corrosion resistance and compatibility with the heater’s drainage setup.
How do you install a drain pan under a water heater?
Shut off power or gas, place the pan under the heater, ensure it sits level, and connect the drain outlet to an approved drainage path. Follow the manufacturer’s guidance and local codes for placement, pan height, and drainage routing.
Turn off power or gas, set the pan in place, level it, and hook up the drain line following local codes.
What should the drain pan connect to?
The drain outlet should connect to a floor drain, condensate line, or other approved drainage path that leads water away from living areas and electrical components. Avoid routing water toward living spaces or electrical closets.
Connect the pan to a proper drain that leads away from living areas and electrical parts.
What maintenance does a drain pan require?
Regularly inspect for cracks, rust, or debris. Ensure the drain line is clear and free of blockages. Clean the pan as part of routine water heater maintenance and replace if damaged.
Inspect for cracks, keep the drain clear, and replace if you see damage.
The Essentials
- Start with a properly sized pan that fits under your heater.
- Ensure the drain outlet leads to a safe, code-compliant drain.
- Regularly inspect the pan for cracks and the outlet for clogs.
- Consult local codes and a professional for installation.
- Use Drain Guide recommendations to inform your choice and maintenance.
