How to Install Drainage Pipe: A Step-by-Step DIY Guide
Learn how to install drainage pipe with a practical, step-by-step approach. Plan, trench, lay pipe, backfill, test, and restore your yard safely. Ideal for homeowners tackling yard drainage and foundation protection in 2026.
According to Drain Guide, installing a proper drainage pipe protects foundations and prevents unwanted drainage around your home. This quick guide shows how to plan the layout, determine trench depth and slope, select pipe and fittings, join them securely, and test the system before backfilling. Follow these steps to reduce leaks, clogs, and maintenance later.
Planning and prerequisites
Planning is the foundation of a successful drainage pipe installation. When you learn how to install drainage pipe, your plan should include route selection, slope expectations, local codes, permits, and future access. According to Drain Guide, starting with a good plan saves time and reduces costly mistakes. Begin by surveying the area for water flow, existing utilities, and the discharge location. Mark the intended path with stakes and string line, and note where you will connect to an existing drain, sump, or outlet. Consider the load on the pipe, soil type, and depth required to avoid freezing in cold climates. Create a simple sketch showing trench width, depth, and the connection point to the house or catch basin. When possible, coordinate with neighbors if drainage lines cross property lines, and review setbacks from buildings, sidewalks, and foundations. Finally, check with your municipality for permits or inspections that may apply to exterior drainage work.
Tools and materials overview
This section introduces the kinds of pipes, bedding, and fittings commonly used in drainage projects. For planful installs, you’ll want perforated pipe for infiltration areas and solid pipe for discharge runs, plus cleanouts and adapters that fit your chosen material. The decision between PVC and corrugated pipe often hinges on cost, flexibility, and local code. Always verify the pipe diameter and wall thickness recommended for your climate and soil type. Drainage grading relies on consistent slope, which makes proper bedding essential. As you work through the project, note that exterior work may require trench supports or temporary fencing for safety.
Site readiness and utility checks
Before digging, confirm there are no buried utilities along the route. The Drain Guide team emphasizes calling your local utility locator service and reviewing maps to avoid strikes. Additionally, verify zoning or code requirements that may demand permits or inspections for exterior drainage work. Ensure you have access to a discharge location that won’t cause downstream flooding or erosion. Finally, set up a clear work area with space to store excavated soil and materials, and mark the trench so others stay aware of the dig.
Trench and bedding considerations
A well-planned trench sets the stage for a reliable drainage system. Dig the trench with consistent width and depth to accommodate bedding, pipe, and backfill. Create a stable bed using sand or fine gravel to prevent point loads on the pipe and to help keep it level. Maintain a steady slope away from the foundation at about a quarter inch per foot, or follow local code. Protect the pipe from contamination by avoiding sharp rocks in the bedding and backfill. Keep the trench sides clean to minimize friction and settling, and consider using a temporary shield if digging near a building foundation.
Laying pipe, joints, and connections
Lay the pipe along the marked route with gentle bends and transitions. Place bedding and then insert the perforated pipe for infiltration zones or solid pipe for discharge runs, ensuring a continuous slope toward the outlet. Use appropriate joints, gaskets, and sealants per the material you chose, and install cleanouts at access points. Maintain alignment with string lines to prevent sagging. Leave room for expansion and removal if future servicing is needed, and verify that the outlet location remains accessible for maintenance.
Backfill, test, and site restoration
Backfill the trench in layers, compaction being gentle to avoid crushing the pipe. After backfilling halfway, test the system by running water through the pipe and observing the flow and any leaks. If leaks appear, inspect joints and reseal as needed. Complete backfill with soil, reseed or restore the surface as appropriate, and remove temporary supports. Finally, document the route and the outlet so future maintenance or repairs are straightforward.
Authoritative sources
For authoritative guidance on drainage and groundwater management, consult: • EPA: https://www.epa.gov • Extension services such as https://extension.illinois.edu and https://extension.umd.edu • OSHA guidance on general safety and trench work: https://www.osha.gov
Tools & Materials
- Shovel or trenching spade(For digging a straight, clean trench)
- Tape measure(To verify trench depth and run length)
- String line and stakes(To maintain alignment and slope)
- Level or laser level(To verify slope and grade)
- Perforated drainage pipe (PVC or HDPE)(Diameter per design (4-6 in common))
- Pipe fittings, couplings, and end caps(Ensure compatible with chosen pipe)
- PVC solvent cement and primer (if using PVC)(Alternative: slip joints for flexible pipe)
- Gravel or crushed stone for bedding(4-6 inches under pipe is typical)
- Sand for bedding (optional)(Helps create a smooth bed)
- Backfill soil and tamping tool(Compact in layers to prevent settling)
- Safety gear (gloves, safety glasses)(Eye and hand protection)
- Utility locator service or maps(Call before you dig)
- End caps and cleanouts(For maintenance access)
- Pipe cutter or saw(To fit pipe lengths accurately)
- Water testing equipment (optional)(For a functional pressure test)

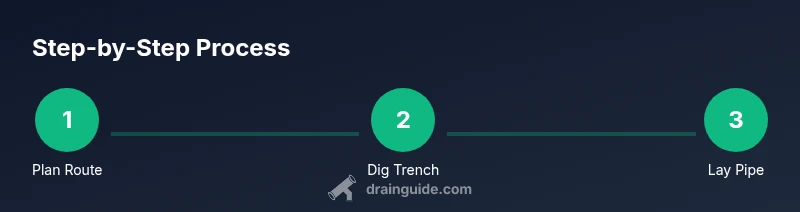

Steps
Estimated time: 4-8 hours
- 1
Plan and mark the route
Identify the drainage path and mark it with stakes and a string line. Confirm access to a discharge location and verify there are no buried utilities along the route.
Tip: Use a string line to keep the route straight and adjustable. - 2
Dig the trench
Excavate the trench to the planned depth and width, ensuring a consistent slope away from the structure. Avoid rocks that could puncture pipe or impede bedding.
Tip: Check local codes for minimum trench width and depth. - 3
Prepare bedding and lay pipe
Spread a uniform bedding layer of sand or fine gravel, then lay the pipe along the marked path. Maintain the slope and ensure joints are accessible for inspection.
Tip: Test-fitting joints before final placement helps prevent leaks. - 4
Install joints and cleanouts
Connect sections with appropriate joints and install cleanouts at access points. Ensure seals are correct and joints are snug without forcing.
Tip: Leave space for expansion and thermal movement. - 5
Backfill gradually
Backfill in layers, using a tamping tool or hand tamping to avoid pipe damage. Recheck alignment and slope after partial backfill.
Tip: Do not crush the pipe by over-tamping; gentle compaction works best. - 6
Test the system
Run water through the system to verify proper flow and detect leaks at joints. Address any issues before completing backfill.
Tip: A slow, continuous flow helps reveal slow leaks. - 7
Finish and restore surface
Complete backfill, grade the surface, and restore turf or pavement. Mark the discharge outlet for future maintenance checks.
Tip: Keep the outlet accessible and visible for routine checks.
Got Questions?
What is the best material for exterior drainage pipes?
PVC and HDPE are common for exterior drains. Choose solid pipe for discharge runs and perforated pipe with a filter for infiltration areas, following local codes.
PVC or HDPE are common choices. Pick solid pipe for discharge lines and perforated pipe with a filter for infiltrations, per your local code.
Do I need permits to install a drainage pipe?
Most zones require basic permits or at least a review for exterior drainage projects. Check with your local building department before starting.
Most areas require a permit or review for exterior drainage projects. Check with your local building department first.
How deep should I trench for a yard drainage pipe?
Depth depends on climate, soil, and frost guidelines. Create a trench deep enough to avoid frost heave and to allow bedding and backfill, following local codes.
Depth depends on frost and soil. Ensure enough depth for bedding and backfill per local codes.
Can I install drainage pipe under a patio or driveway?
Yes, but plan for controlled access and avoid interfering with foundations. Use appropriate sleeve or protective barriers when crossing hardscape.
It's possible under patios, but you must protect the pipe and maintain access for maintenance.
What maintenance is required after installation?
Inspect cleanouts periodically, clear blockages, and test after heavy rainfall. Keep the discharge area clear of debris.
Check cleanouts regularly, clear blockages, and test after rain.
Watch Video
The Essentials
- Plan route, slope, and permits before digging.
- Use proper bedding and joints to prevent leaks.
- Backfill in layers and test before final cover.
- Follow local codes and safety guidelines.
