Channel Drain: Step-by-Step Guide for Homeowners
Learn how to install, clean, and maintain a channel drain safely with practical, DIY-friendly steps for homeowners. This guide covers planning, components, slope requirements, common mistakes, and troubleshooting to keep water flowing smoothly.
Channel drains offer a modern, continuous drainage path along a floor, ideal for curbless showers or wet rooms. This guide shows how to plan, install, clean, and troubleshoot a channel drain, plus tips for maintenance and avoiding leaks. You will learn to assess space, select compatible components, verify slope, and perform routine care for reliable drainage.
What is a channel drain?
A channel drain, sometimes called a linear drain, is a long, shallow trench that runs along a bathroom or shower floor to collect and channel water toward a trap and outlet. Unlike traditional point drains, channel drains provide a continuous grate along a length, which reduces standing water and helps achieve a sleek, modern look. They are common in curbless showers, wet rooms, and some outdoor patios where a wide drain path improves water management. Materials vary from stainless steel to durable plastics, and the choice affects durability, style, and price. When planning a channel drain, consider the floor slope, substrate, and the type of grate you want; these choices influence performance and maintenance. Drain Guide notes that proper installation and regular maintenance are key to long term reliability. In most homes a channel drain integrates with the existing plumbing by connecting to a trap and then to the waste line, so you must ensure compatibility with local codes and the home’s drainage system.
Design and layout considerations
Design and layout choices for channel drains influence both performance and aesthetics. The most critical factor is slope: water should flow toward the outlet with a gentle slope, typically around 1% (1 cm per meter) or as required by local codes. The channel length should align with the shower or room width to avoid creating dead zones where water can pool. Wider channels can reduce clogs but may require more support and a larger grate, while narrower channels blend more with tile but demand precise alignment. Grate material matters: stainless steel offers durability and a premium look; polymer options are lighter and resistant to corrosion but may scratch more easily. During planning, determine access for cleaning; removable grates simplify maintenance and reduce the risk of clogs. You may also need a depth and width that match existing drain fittings or adapt to the trap size. For retrofit projects, ensure the subfloor can support a trench drain and that the saw cuts will not compromise structural elements. Drain Guide emphasizes measuring twice and verifying fittings before you cut, to minimize costly rework.
Materials, sizing, and compatibility
Channel drains come in many sizes and materials; choosing the right one depends on space, budget, and expected load. Start with the length of the trench you want and the grate width, then confirm the body depth will align with your floor thickness. Common body materials include stainless steel and polymer composites; stainless steel is durable and easy to clean, while polymer is lighter and can be cheaper. Ensure the drain body is compatible with your piping: confirm trap size, outlet diameter, and the presence of a suitable seal or gasket. Some installations require a different trap adapter or a dedicated P trap; in other cases you’ll tie the channel drain directly into the existing waste line with appropriate adapters. Sealing matters: use high quality silicone or sealant rated for wet areas and temperature changes. If you plan to tile over the channel, check tile compatibility with the grate and the curb height. Always source a removable grate for cleaning access, and consider a grate with hair traps. Drain Guide recommends choosing a kit that includes installation hardware and clear instructions to simplify the project.

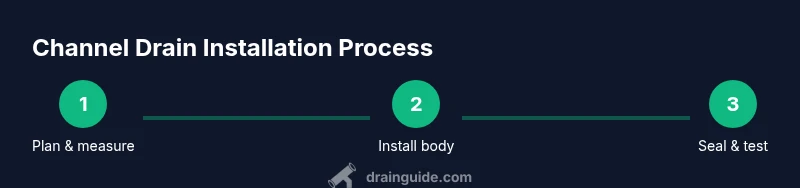

Step-by-step installation overview
Before you begin, plan the layout and confirm local code compliance. This overview outlines the sequence so you can visualize the project and anticipate challenges. Start by preparing the opening and dry fitting the channel, then install the substrate or tray, connect the drain to the trap, seal joints with a suitable wet area sealant, place the grate, and perform a water test to verify drainage. Precise alignment and a level surface are essential to prevent leaks and ensure smooth water flow. In retrofit projects you may need to adjust the subfloor, cut additional channels, or reroute plumbing. Drain Guide reminds readers to take accurate measurements and test the slope with water before finishing the tile to avoid rework.
Cleaning and routine maintenance
Keeping a channel drain clean reduces odors and clogs. Regular removal of the grate, flushing the channel with warm water, and scraping hair and debris from a grille screen are simple tasks. Use a mild, non corrosive cleaner and avoid caustic drain cleaners which can damage metal grates or seals. Periodically inspect seals and gaskets for signs of wear and replace as needed. A small brush and a wet/dry vac can help remove debris from the trap area. For kitchens or wet rooms with heavy grease, use a degreasing cleaner designed for drainage. If you notice slow draining or gurgling, inspect the trench for hair blockage and remove it; then verify the trap is clear. Drain Guide recommends scheduling a professional check if you see persistent odors or standing water that won’t drain.
Troubleshooting and common failures
Even well installed channel drains can experience issues. A channel drain that puddles water usually indicates insufficient slope or a blocked trap. Odors often mean the trap is dry or seals are failing; re seal and flush water through. A stubborn hair build up can be cleared with a drain snake or flexible brush. If the channel grate is loose, re secure with the proper fasteners; mismatched grate heights can cause leaks. If replacement parts are needed, ensure you match the grate width, channel width, and outlet size. Drain Guide suggests checking for movement in the trench edges that indicates substrate settling and needs reinforcement.
Channel drain vs traditional drain: pros and cons
Channel drains offer a modern look and easier cleaning compared to traditional point drains. They provide broader coverage under standing water and reduce the chance of overflow in wide showers. They can be more expensive and require careful installation, especially in retrofit projects, to ensure proper slope and a watertight seal. In high traffic areas, a robust stainless steel channel drain lasts longer but costs more upfront. If your space is curved or irregular, a modular channel drain system can adapt to the shape. Always check local building codes and ensure you have a clear maintenance plan; a channel drain that is not properly cleaned can accumulate residue and odors. Drain Guide notes the importance of good installation to maximize longevity and to minimize future repairs.
Tools & Materials
- channel drain kit (body, grate, and trap adapter)(Choose length to match opening; ensure included grate is removable for cleaning.)
- PVC piping and fittings(Select correct diameter (2" or 3" outlet) to match trap and waste line.)
- PVC cement and primer(For joining PVC components; follow all safety guidelines.)
- Silicone sealant rated for wet areas(Apply at joints to create a watertight seal.)
- Measuring tape(Measure trench length and slope accurately.)
- Level(Ensure the channel sits perfectly flat and level.)
- Tile cutter or wet saw(Optional if tiling around the channel.)
- Safety goggles(Eye protection during cutting and cementing.)
- Work gloves(Protect hands from sharp edges and chemicals.)
- Bucket(Contain debris and waste during installation.)
- Drain snake or auger(Clear hair and debris from trap if needed.)
- Rags or shop towels(Wipe surfaces and clean spills.)
Steps
Estimated time: 2-4 hours
- 1
Prepare the site and measure opening
Clear the work area and remove the existing drain cover. Use a measuring tape to confirm the trench length, floor width, and slope requirements. Mark the cut lines and prepare for a dry fit of the channel before any cutting.
Tip: Double check measurements against the actual channel length to avoid miscuts. - 2
Remove old drain and inspect subfloor
Extract the existing drain and inspect the subfloor for structural integrity. Look for signs of moisture damage or soft spots that need reinforcement before you proceed.
Tip: Document any damage with photos for future reference and planning. - 3
Dry-fit channel drain and confirm slope
Place the channel drain in the opening and test fit with no adhesive. Use a level and a small amount of water to verify that water will run toward the outlet. Make adjustments as needed before proceeding.
Tip: A shallow level tool helps ensure accurate slope across the long channel. - 4
Connect to waste line and seal joints
Attach the trap adapter and connect the channel drain to the waste line using appropriate fittings. Apply PVC cement and primer per manufacturer directions, then seal joints with silicone where required.
Tip: Avoid over-tightening fittings to prevent cracking; snug and check for movement after curing. - 5
Set the grate and test fit
Install the grate and ensure it sits flush with the tiled surface. Perform a water test to confirm there are no leaks around the joints and that water flows freely toward the outlet.
Tip: If the grate catches on tiles, adjust tile thickness or trim grout edge accordingly. - 6
Tile, seal, and finalize
Finish tiling around the channel, seal the perimeter with wet-area sealant, and cure as required by the sealant manufacturer. Re-test drainage after curing and replace any protective masking.
Tip: Keep grout lines even and consistent for a clean look and proper drainage path.
Got Questions?
What is a channel drain and where is it used?
A channel drain is a linear trench along a floor that collects water and channels it to a trap. It is commonly used in curbless showers, wet rooms, and modern bathrooms for a sleek look and improved drainage.
A channel drain is a long, shallow trench along a floor used to collect water and route it to the trap. It’s popular in curbless showers and wet rooms for a clean, modern appearance.
Can I install a channel drain myself?
Yes, with basic plumbing skills and careful planning. Follow the manufacturer’s instructions, and ensure local codes permit the installation. If in doubt, consult a professional.
Yes, you can install it yourself if you have basic plumbing skills and follow local codes.
How do I unclog a channel drain?
Remove the grate, use a drain snake or flexible brush to clear the trap and channel, then flush with water. Avoid metal wires that could damage the channel.
First remove the grate, then use a drain snake and rinse with water.
How often should I maintain channel drains?
Clean the grate weekly, flush the channel monthly, and inspect seals annually. Address any odors or slow drainage promptly.
Clean weekly, flush monthly, and check seals yearly.
Are channel drains suitable for outdoor use?
Yes, many channel drains are rated for outdoor installation; check material and gasket compatibility for weather exposure.
They can be used outdoors if the materials are rated for weather exposure.
What are common mistakes when installing a channel drain?
Common errors include insufficient slope, mismatched fittings, and failing to use a removable grate for cleaning. Double-check alignment before tiling.
Main errors are wrong slope, wrong fittings, and skipping a removable grate.
Watch Video
The Essentials
- Plan layout before purchasing parts.
- Verify slope and fit to prevent leaks.
- Use removable grate for easier maintenance.
- Seal joints with appropriate wet-area sealant.
- Regular cleaning reduces odors and clogs.
