Channel Drain Patio Installation Guide
Learn how to install a channel drain on a patio with proper slope, durable materials, and a reliable outlet connection. This guide covers planning, trench prep, installation, testing, and maintenance for homeowners and DIY enthusiasts.
By the end of this guide you will install a durable patio channel drain that properly slopes to an outlet, select corrosion-resistant materials, prepare a stable base, and perform a water-test. Before you start, gather a trenching tool, level, measuring tape, channel drain kit, concrete or pavers, and a suitable outlet connection. This is a DIY-friendly project with careful planning. Safety gloves and eye protection are recommended.
What is a channel drain patio and why it matters
Channel drains are long, narrow troughs with grated lids that collect surface water and channel it to an outlet. On a patio, they prevent pooling, erosion, and slippery surfaces after rain or irrigation. A properly installed channel drain also helps protect foundations and improves outdoor usability by keeping seating areas dry. For homeowners, a well-designed system reduces maintenance and extends the life of pavers or concrete. According to Drain Guide, choosing a drain with the right load rating and corrosion-resistant materials is crucial for outdoor longevity and safety. This section outlines how channel drains fit into your patio drainage strategy and what you’ll need to succeed.
Planning your patio channel drain: site assessment and design
Effective patio drainage starts with a clear plan. Identify the drainage area feeding the patio, estimate runoff, and decide where the water should exit. Measure the run length and determine the slope to ensure water moves away from structures. Check local codes for trench depth, backfill materials, and outlet connections. Create a simple sketch that marks the trench path, outlet location, and any changes in grade. A thoughtful design reduces future maintenance and avoids trapping debris. Drain Guide emphasizes aligning the channel with natural water flow and avoiding sharp turns that trap sediment. A clean layout also simplifies installation and future inspections.
Materials and options: choosing the right channel drain
Outdoor channel drains come in various materials and designs. Polypropylene and PVC options are affordable and corrosion-resistant for most patios, while stainless steel offers higher strength for driveways or high-traffic areas. Grate style matters for safety and aesthetics; choose slotted or perforated patterns that resist clogging while blending with your surface. Pay attention to load rating if the patio doubles as a pedestrian path or sitting area near a doorway. Ensure the outlet size matches your drainage piping or storm sewer connection. Drain Guide recommends selecting a system with easy-to-clean trays and a compatible sealant for outdoor use.
Sizing and slope considerations: length, depth, and gradient
Correct sizing ensures efficient water flow and long service life. The trench should be wide and deep enough to hold the channel and base materials without obstructing pedestrian movement. A gentle slope of about 1-2% is typical for paved patios, ensuring water moves toward the outlet without pooling. If your runoff is heavy, consult a pro for a deeper trench and larger channel with a higher load rating. Avoid abrupt changes in grade; transitions should be gradual to prevent debris buildup. Drain Guide notes that proper slope helps prevent backflow and improves overall drainage performance.
Site preparation and base construction: sub-base and filtration
A stable base is critical for channel drains. Excavate the trench to the planned depth, then lay geotextile fabric to keep soil from mixing with the sub-base. Add a compacted sub-base layer of clean crushed stone (gravel) to provide drainage and support. Level the base with a spirit level, ensuring the top of the base is slightly below the surrounding surface to accommodate the grate. This foundation minimizes settling and ensures the channel grate sits flush with the patio surface. Drain Guide highlights the importance of a solid base to prevent channel movement and crack formation.
Installing the channel drain: alignment and securing the system
Place the channel body into the trench, ensuring it locks together and sits level across the length. Connect the outlet to the planned drainage line or storm sewer; use matching fittings and weatherproof sealants. Check alignment against the surface finish and correct any minor deviations before securing the channel. If you have a long run, install expansion joints where needed to manage thermal movement. Keep a straight line for runoff to maximize efficiency. Drain Guide recommends verifying drainage direction with a simple water test before proceeding to backfill.
Backfill, surface finish, and edge detailing: completing the install
Backfill the trench with the same crushed stone or a compatible mixture to maintain drainage. Compact gently to avoid crushing the channel or cracking the grate. Install the surface finish (pavers or concrete) flush with the grate, leaving room for expansion and contraction. Use joint material or sand between pavers to prevent movement and hold the surface, while maintaining open channels for drainage. Finish with edge restraints to prevent surface migration and debris intrusion. Drain Guide stresses the importance of a clean, level surface for safe movement along the patio.
Testing, flushing, and final adjustments: ensure reliable performance
Test the system by slowly simulating rainfall with a hose. Observe flow to the outlet and confirm there is no backflow or pooling along the trench. If you notice slow drainage, re-check slope and ensure the outlet is not obstructed. Flush the system to clear fine sediments that may clog the channel. Finally, inspect the grate fit and reseal any joints or connections exposed to weather. Regular testing helps maintain performance over time.
Maintenance, longevity, and best practices: keeping it clean
Maintenance is simple but essential. Periodically remove debris from the grate and wash the channel with water or a mild cleaner. Use a flexible brush to clear sediment from the trench walls. Inspect the outlet for blockages after heavy rain or seasonal changes. Consider a periodic flush with clear water to keep the line free of silt. Drain Guide recommends annual checks for wear, loosened fittings, and changes in slope or surface integrity that could affect drainage.
Common mistakes and troubleshooting: what to avoid
Common errors include underestimating the slope, selecting a too-narrow trench, or using a non-durable material in freeze-thaw climates. Don’t neglect filtration, which can accelerate clogging. Ensure the outlet remains accessible for cleaning and that the surface around the drain is stable. If pooling persists, re-evaluate the slope, outlet size, and drainage path. Drain Guide emphasizes verifying every joint and checking for settling after the first heavy rainfall.
Safety, permits, and long-term considerations: staying compliant and safe
Outdoor drainage work can involve trenching and electrical considerations near outlets. Always wear PPE, follow local codes, and obtain any required permits before excavation. If you encounter utilities, pause work and contact the local utility locating service. Plan for seasonal maintenance around freezing conditions and ensure the system is accessible for inspection. Drain Guide recommends documenting the installation with photos and notes for future reference.
Tools & Materials
- Channel drain kit (grate and outlet)(Choose a kit that matches patio width and expected load rating)
- Measuring tape(For precise length, slope, and outlet placement)
- Shovel/trenching spade(For trenching and base preparation)
- Level or laser level(To maintain consistent slope and flush grate height)
- Geotextile fabric(Prevents soil intrusion into the sub-base)
- Crushed stone base (3/4 inch or similar)(Sub-base for drainage and support)
- Outlet piping and fittings(Match to existing drainage system; include waterproof sealant)
- Concrete or paver materials for surface(Finish to match patio surface; leave space for expansion where needed)
- Joint material or sand (for pavers)(Stabilizes surface between pavers)
- Safety gear (gloves, safety glasses)(Personal protective equipment for all steps)
- Water hose or spray bottle(For testing drainage during inspection)

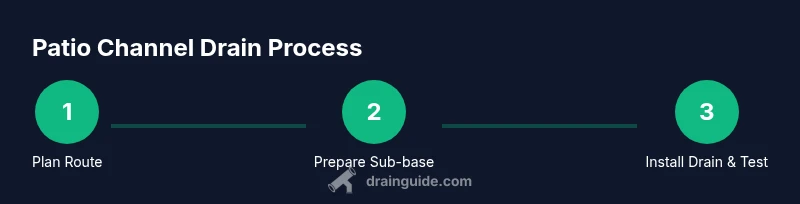

Steps
Estimated time: 2-4 hours
- 1
Assess site and plan path
Mark the desired drain route with spray paint and string. Confirm the outlet location and ensure the path directs water away from walls and doors. This planning step reduces rework later.
Tip: Double-check clearance under any fixed structures and consider future expansion potential. - 2
Determine trench dimensions and slope
Decide on trench width and depth to accommodate the channel, base, and surface finish. Plan for a steady gradient of 1-2% toward the outlet to promote flow.
Tip: A laser level helps maintain a uniform slope along the entire run. - 3
Dig trench and install geotextile
Excavate the trench to the planned depth. Lay geotextile fabric to separate soil from the sub-base and prevent silt intrusion.
Tip: Keep the trench dry during digging to avoid soil compaction that could hinder drainage. - 4
Add sub-base and compact
Pour a layer of crushed stone base, compact evenly, and check level across the trench. The base should be slightly below the adjacent surface.
Tip: Use a plate compactor on the base to minimize settlement after installation. - 5
Place channel and align the run
Set the channel drain into the trench, ensuring all sections lock securely and that the top sits flush with the surface finish.
Tip: Dry-fit the sections first to verify alignment before final bonding. - 6
Connect outlet and seal joints
Attach outlet fittings to route water to the chosen drainage line. Seal joints with outdoor-rated sealant to prevent leaks.
Tip: Inspect each joint with a light spray test to confirm watertight connections. - 7
Backfill and surface finish
Backfill around the channel with the base material. Install the surface (pavers or concrete) flush with the grate and finish with appropriate edge restraints.
Tip: Ensure expansion gaps where the surface meets the channel to avoid cracking. - 8
Test drainage and adjust
Simulate rainfall using a hose, observe flow, and verify no backflow or pooling. Make minor slope adjustments if needed.
Tip: If debris blocks the grate, remove and clean the grate before final testing. - 9
Final inspection and safety check
Walk the area to confirm solid footing and edge stability. Verify accessibility for future cleaning and maintenance.
Tip: Keep a maintenance schedule and document the install for future reference.
