Condensate Drain Pan: Definition, Maintenance, and Safety
Learn what a condensate drain pan is, where it sits in HVAC systems, and essential maintenance tips to prevent leaks, mold, and water damage for homeowners and DIYers.

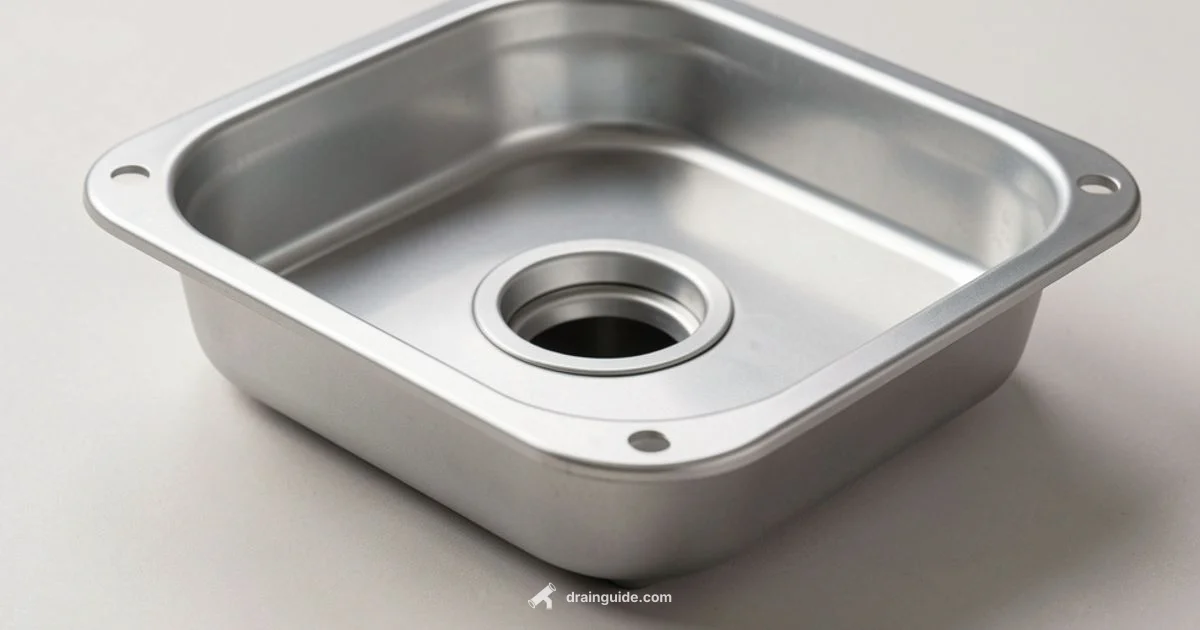

Condensate drain pan is a shallow tray that collects condensate produced by HVAC systems and directs it to a drain or pump to prevent water damage. It sits beneath the evaporator coil and works as part of the drainage system.
What is a condensate drain pan and where is it located?
According to Drain Guide, a condensate drain pan is a shallow tray located beneath the evaporator coil in an HVAC system. Its primary job is to catch the moisture that forms when warm air cools inside the coil, and to direct that water toward a dedicated drain line or pump. In most homes the pan sits inside the air handler or furnace cabinet, sometimes behind removable panels for access. Keeping this pan free of debris and ensuring it is level helps prevent standing water and potential mold growth. Regular inspection by homeowners and scheduled maintenance by professionals are essential parts of protecting your home's structure. Drain Guide emphasizes that a healthy condensate drain pan is invisible when functioning, but failure to maintain it can lead to leaks, damp ceilings, and costly repairs.
How a condensate drain pan works in your HVAC system
When your air conditioner or furnace operates, humidity in the air condenses on the cold coil. The resulting liquid, or condensate, flows into the drain pan. From there it travels through a drain line to a safe exit, or is lifted by a condensate pump if gravity drainage isn't possible. A secondary pan or an overflow protection device may be installed to catch water if the primary pan overflows. A float switch or safety switch can shut off the unit if water gets too high, protecting the equipment and your home. Proper slope of the drain line and regular cleaning prevent clogs. If any part of this system fails, you may see damp spots, a musty smell, or gurgling noises from the drain.
Common problems and signs of trouble
Rust, corrosion, or cracks in the drain pan can develop over time, especially in humid environments or systems with hard water. Warped pans may not hold water and can allow overflow. A clogged drain line or a faulty float switch is another frequent culprit leading to leaks. Look for signs like water pooling under the unit, damp spots on ceilings or walls, or a persistent musty odor. Algae or mineral buildup inside the line can also impede drainage, causing slow runoff. If you notice any of these signs, start with a visual inspection and a flush of the drain line, and consider professional help if the issue persists.
Maintenance schedule and best practices
Create a simple maintenance routine that includes a visual check of the pan and drain line at the start of each cooling season. Clean the pan with a mild detergent and rinse thoroughly, avoiding harsh chemicals that could corrode metal pans. Ensure the drain line is clear by flushing with water or a safe cleaning solution recommended for condensate lines. Inspect the float switch and any safety devices for proper operation. Keep the area around the unit free of debris, and replace the pan if you see significant corrosion or damage. Drain Guide recommends documenting inspections so you can track the pan’s condition over time.
Cleaning and safety tips for condensate pans
Always power down the HVAC equipment before handling the drain pan to avoid electrical shock. Remove the pan carefully and wear gloves. Use a mild degreaser or dish soap to remove mineral deposits, then rinse and dry completely before reinstalling. If you suspect a leak from the drain line, do not ignore it; a clogged line can back up into the pan and overflow. Never mix chemical cleaners with the system’s metal parts. For metal pans, consider applying a light protective coating if your climate causes rapid corrosion.
Materials, sizes, and choosing a condensate pan
Drain pans come in plastic and metal varieties. Plastic pans are lightweight and corrosion resistant but can crack under stress or impact. Metal pans, often galvanized steel or aluminum, resist wear longer but may corrode in aggressive water conditions. Pan size should match the evaporator cabinet and the expected condensate load; a pan that is too small can overflow, while an oversized pan takes more space. Some installers use insulated pans to minimize condensation transfer to surrounding components. When selecting a pan, check compatibility with your drain line and any required overflow protection.
Installation considerations and code compliance
Proper installation matters for safety and longevity. The drain pan should be securely attached and aligned with the drain line, and the drain line should have a continuous slope to prevent standing water. Many jurisdictions require an overflow alarm or secondary pan in larger systems. Check local codes and manufacturer guidelines before replacing a pan. If you are unsure about electrical connections, confirm that power is shut off and that the condensate line is properly vented. When in doubt, hire a licensed HVAC professional to ensure a code compliant and reliable setup.
When to replace the pan and what to expect
If the pan shows persistent corrosion, deep pitting, cracks, or warping that affects drainage, replacement is the safest option. A failing pan can lead to water damage, mold, and higher humidity levels in your home. Replacing involves removing the old pan and drain components, selecting a compatible replacement, and verifying that the new pan sits level and drains properly. After installation, run the system and observe for leaks and proper drainage. The Drain Guide team recommends planning for replacement during routine service visits to avoid emergency failures.
Got Questions?
What is a condensate drain pan and what does it do?
A condensate drain pan is a shallow tray under HVAC equipment that collects condensate and directs it to a drain or pump. It helps prevent water damage, mold, and leaks by providing a safe drainage path.
A condensate drain pan is a shallow tray under your HVAC system that catches moisture and sends it down a drain to prevent leaks.
Where is the condensate drain pan located in most homes?
In most homes the pan sits beneath the evaporator coil inside the air handler or furnace cabinet, sometimes behind access panels. It is accessible for inspection and cleaning.
It's usually under the furnace or the air handler, inside a cabinet where you can access it for maintenance.
What are common signs that the condensate drain pan is failing?
Look for water pooling, damp ceilings or walls, musty odors, rust or cracking on the pan, and frequent overflow from the drain line. Clogged lines and failed safety switches are also warning signs.
Common signs include leaks, damp spots, and musty smells, plus visible rust or a failed overflow switch.
Can I replace the condensate drain pan myself?
DIY replacement is possible for skilled homeowners, but many installations involve electrical safety, drainage connections, and code requirements. If in doubt, hire a licensed HVAC technician.
If you have HVAC and electrical experience, you can replace it yourself; otherwise, hire a pro to ensure safety and code compliance.
How often should the condensate drain pan be inspected or cleaned?
Inspect the pan during seasonal HVAC service and clean as needed when you notice buildup, mold, or slow drainage. Regular checks help prevent leaks and damage.
Inspect it during seasonal service and clean if you notice buildup or slow drainage.
The Essentials
- Inspect the condensate pan during seasonal HVAC service
- Choose the right pan material for your environment
- Keep the drain line clear to avoid clogs
- Look for signs of corrosion or damage and replace as needed
- Document inspections to track pan condition over time
