NDS Channel Drain Guide for Home Surface Drainage

What is nds channel drain

According to Drain Guide, nds channel drain is a modular surface drainage system that uses a shallow channel and grate to collect water and convey it away from hard surfaces. It is commonly installed along exterior walls, driveways, patios, and garage approaches, where runoff would otherwise pool and potentially cause ice, erosion, or staining. The system is designed with standardized channel profiles, grates, end caps, and outlet adapters, enabling homeowners to assemble a continuous trench that matches their space. When installed correctly, an nds channel drain provides a clean, low profile water management solution that blends with landscape or architectural features while simplifying maintenance compared with loose grate trenches.

This solution is particularly appreciated by homeowners who want a neat, unobtrusive drainage option that still performs under typical residential rainfall. The nds channel drain family is modular, allowing you to tailor length and direction while maintaining a cohesive aesthetic with surrounding surfaces. By focusing on a consistent channel profile, you can achieve predictable drainage performance across the length of your installation.

When to use an nds channel drain

If your property experiences surface water after rain or snowmelt, an nds channel drain can help. It is especially effective along driveways that slope toward a doorway, along patios abutting the house, and at the edge of garages where water tends to pool. For pool decks, pathways, and outdoor stairs, a channel drain creates a consistent drainage path that prevents puddles and reduces staining of concrete or pavers. Before installing, evaluate the landscape grade and identify an outlet point compatible with the existing drainage system. While an nds channel drain handles typical residential runoff, heavy downpours or poor soil may require additional catch basins or a sump system as part of a complete drainage plan.

Choosing the right setup starts with understanding how surface water travels across your property. A well placed nds channel drain can guide water toward a storm sewer or a designated outlet, minimizing erosion and protecting foundations. In some climates, pairing a channel drain with a downstream sump can provide extra reliability during extreme events.

Key components and how they work

An nds channel drain system is built from several common parts. The channel body forms the long trough that sits flush with the surface, while the grate on top allows water to enter. End caps and corner pieces close the run and keep debris out. A variety of outlet connectors and adapters link the channel to an underground drain line or to a sump. When water falls on the surface, it flows into the channel, travels toward the outlet, and is discharged away from structures. Because components are often modular, homeowners can tailor the length and direction to fit edges, corners, or stair steps.

Understanding these parts helps you plan maintenance and replacements over time. You can also choose grates with different load ratings depending on whether the channel will carry pedestrian traffic or wheel traffic. The modular nature of the nds channel drain makes it easier to extend or reconfigure as your property evolves, without redoing the entire drainage path.

Sizing, slope, and placement tips

Effective nds channel drain use begins with sizing the channel for the expected water load and planning the outlet location. Start by mapping the area that drains toward the channel and choosing a width that can accept runoff without spilling onto adjacent surfaces. Position the outlet at a reachable point for connection to an existing drain or storm line. Ensure the channel runs level with the surface and maintains a clear path to the outlet. Place grates with appropriate load rating for pedestrian or vehicle traffic. Maintain some clearance at joints to allow for expansion and avoid cracking. Finally, verify that plants and roots will not interfere with the trench.

A practical placement rule is to run the channel along the edge of the surface that gathers the most water, avoiding interference with foot traffic and landscaping. If you cannot achieve a direct outlet, consider adding a short section of pipe to reach a feasible discharge point. Proper alignment minimizes maintenance needs and reduces the chance of backups.

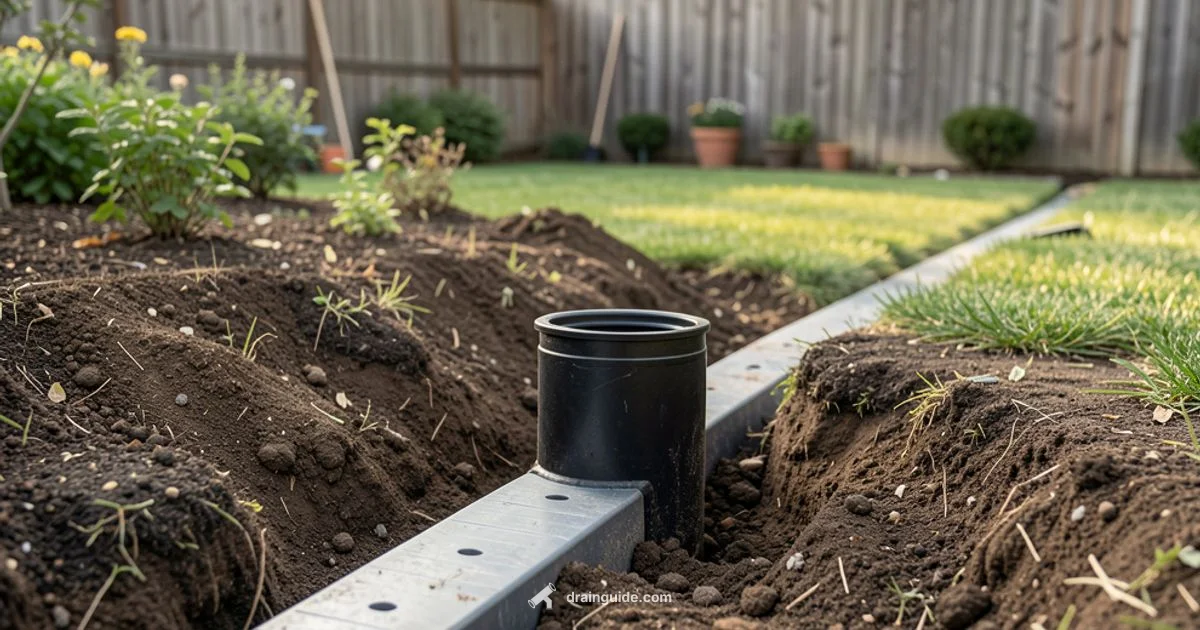

Installation outline and precautions

Plan the run and gather materials before cutting or assembling. Dry fit the channel sections along the intended path and confirm alignment with the outlet. Secure the channel to the substrate with the recommended bedding or mounting system, and connect to the outlet line. Install the grate last, test the system with water, and observe the discharge to ensure there are no leaks or pooling. Follow local codes and manufacturer guidance for depth and spacing, and use appropriate protective gear when cutting or handling components.

During installation, avoid forcing pieces into misaligned joints or exceeding recommended lengths without intermediate supports. Keep a clear area around the trench to prevent debris intrusion and ensure safe access for future maintenance.

Maintenance and troubleshooting

Regular maintenance keeps an nds channel drain performing well. Remove leaves, dirt, and debris from the grate and channel with a stiff brush or hose. Periodically flush the line to clear any silt or buildup and inspect joints for leaks. If you notice pooling around the channel, recheck slope and outlet connections. If a section cracks or sags, replace the affected segment rather than attempting a patch. Clear safety covers to prevent wildlife intrusion and ensure the grate remains secure.

Establish a simple seasonal maintenance routine and keep a small supply kit handy for quick repairs or replacements. Regular checks reduce the risk of unexpected blockages and preserve drainage performance over time.

Common mistakes to avoid

Avoid misaligned slopes that allow water to pool at the ends of the channel, or stretching the run beyond supported supports. Do not skip end caps or seals, which can allow debris entry and leaks. Avoid placing the channel over roots or unstable soil, which can cause warping or breakage. Do not assume the channel will solve all drainage problems; combine with proper grading and downstream drainage for best results.

Another common error is mismatching grate load rating to traffic demands, which can lead to faster wear or safety concerns. Finally, neglecting regular cleaning can turn a simple system into a maintenance headache over time.

Alternatives and related drainage options

Other options include trench drains and French drains depending on space and climate. A trench drain with a grate is similar in function to an nds channel drain but may require more planning. For subsurface solutions, a French drain uses perforated pipe surrounded by gravel to redirect groundwater away from structures. When choosing among these options, consider the area to drain, maintenance expectations, and local codes. In some installations, a hybrid approach combining a shallow channel drain with a small French drain can optimize performance.
