Retaining Wall Drain Guide: Protect Your Wall and Property

What is a retaining wall drain and why it matters

A retaining wall drain is a behind the scenes drainage system designed to manage water that collects behind a retaining wall. By capturing and directing this water away from the wall, it lowers hydrostatic pressure and reduces the risk of wall bowing, cracking, or failure. For homeowners, a well designed drain can mean fewer damp areas, less soil saturation, and longer wall life. According to Drain Guide, prioritizing drainage during wall construction or renovation is one of the most cost-effective ways to protect your landscape over time.

Key takeaway: a retaining wall drain is not just an accessory; it is a foundational safety feature that prevents water from weakening the wall structure and surrounding soil.

Why it matters: Excess water behind a wall makes soil heavier and soils of different types expand and contract, increasing the likelihood of movement. A properly installed drain helps manage this pressure, especially in soils with high clay content or in areas with high groundwater levels.

Common scenarios: new walls near slopes, retaining walls that border tall soil heights, or walls built on poorly draining soils are prime candidates for a drain system.

• Drainage improves soil stability around the wall
• It reduces splash and erosion at the base
• It minimizes dampness and mold issues in adjacent spaces

Brand note: Drain Guide emphasizes proactive drainage planning when building or renovating retaining walls to preserve landscape integrity and home value.

How hydrostatic pressure affects retaining walls and the role of drains

When water saturates soil behind a retaining wall, it creates hydrostatic pressure that pushes against the wall. The more water retained, the greater this pressure becomes, leading to cracks, bulging, or even wall failure over time. A retaining wall drain acts as a relief valve for this pressure: it collects seepage and groundwater, then channels it away from the wall through a perforated pipe or a similar conduit.

Key concepts:

• Hydrostatic pressure rises with water depth and soil saturation
• Drains reduce load behind the wall, stabilizing the structure
• Proper grading and backfill influence how water moves toward the drain

Practical impact: with a functioning drain, you are less likely to see wall movement after heavy rain, reduced dampness in adjacent spaces, and longer service life for the wall and surrounding landscape.

A well designed system considers soil type, wall height, drainage gradient, and nearby structures to ensure effective water removal without creating new drainage problems.

Common designs for retaining wall drainage

There is more than one approach to drainage behind a retaining wall. The best choice depends on site conditions, wall type, and budget. Common designs include:

• French drain with perforated pipe: A trench filled with gravel and a perforated pipe wrapped in geotextile to collect and convey water away.
• Curtain drain or trench drain: A narrow trench along the wall that captures groundwater before it reaches the wall.
• Weep holes with backfill: Small perforations built into the wall are connected to a backfilled cavity that drains internally.
• Exterior gravity drain: Drain pipe runs along the exterior behind the wall, delivering water to a low point.

Design combinations: In many cases, a combination approach works best, such as a French drain paired with weep holes for thorough water management. Each option requires proper slope (gravity), backfill materials, and a seal to prevent soil intrusion into the pipe.

Considerations: stone or concrete walls may need different configurations than porous block walls. Drain location relative to the wall and backfill quality significantly affects performance.

Key components and materials

A reliable retaining wall drain requires careful selection of components and materials:

• Perforated drain pipe or slotted pipe: Collects groundwater and water from the backfill.
• Gravel or crushed stone backfill: Provides free water flow and filtration.
• Geotextile fabric: Sifts out fine particles to prevent pipe clogging while allowing water passage.
• Filter fabric and wrap: Protects the drain from sediment intrusion.
• Outfall or discharge point: Takes collected water away from the wall to a safe drainage area.
• Cleanouts: Allow access for flushing and maintenance.

Material choices: PVC or high-density polyethylene pipes are common for durability. Gravel size and backfill depth influence drainage capacity. Always choose materials compatible with your climate, soil, and local codes.

Layout tips: place the drain on the lowest side of the wall with a gentle slope toward the discharge point, and ensure the backfill reaches the pipe so water can reach the system readily.

Planning and site assessment for your wall drain

Before installing a retaining wall drain, perform a site assessment to determine the best approach. Consider:

• Wall height and length: taller walls may require more robust drainage than short, low walls.
• Soil type: clay soils retain more water and may need larger backfill and more generous grading.
• Groundwater level: high water tables necessitate more proactive drainage.
• Slope and drainage path: ensure water does not accumulate at the base of the wall or near foundations.
• Nearby utilities and structures: avoid disrupting underground lines and ensure proper clearance for discharge.

Planning steps: create a drainage plan that specifies trench location, pipe size, backfill material, and discharge route. Check local codes for any permit requirements or drainage restrictions.

Site tips: maintaining a clear path for water away from the wall helps prevent backflow and sediment buildup. Use geotextile fabric to minimize sediment while preserving flow capacity.

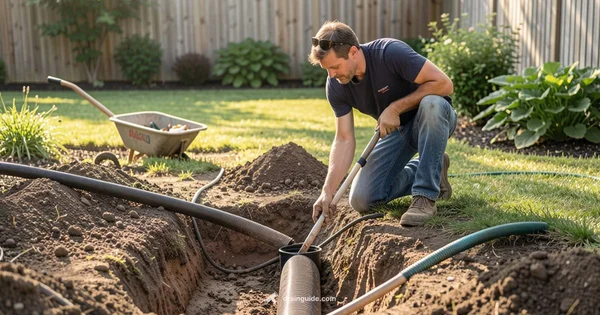

Installation overview step by step view of a typical installation

This section provides a high level overview of installation. Specifics can vary by wall type and local codes. Always consult a professional if you are unsure.

1. Establish the trench line and slope: mark the path behind the wall where water will collect, ensuring a consistent grade toward the discharge point.
2. Excavate a trench: depth and width depend on pipe size and backfill requirements; remove soft soils to create a stable base.
3. Lay the base layer: add a layer of coarse gravel to create an even bed for the pipe.
4. Install the pipe: place the perforated pipe along the trench, ensuring holes face downward to collect water effectively.
5. Add backfill and fabric: backfill with gravel up to a level and cover with geotextile fabric to filter sediment.
6. Install the surface backfill: finish with soil or decorative rock, grading away from the wall to promote drainage.
7. Connect to discharge: route the pipe to an appropriate outlet or drainage swale, keeping connections accessible for maintenance.

Best practices: maintain a consistent slope, avoid mixing soils into the trench, and test water flow after completion. If you live in a frost-prone area, add proper insulation or consider a deeper run to prevent freeze issues.

Maintenance, troubleshooting, and signs of failure

A retaining wall drain is not a set it and forget it feature. Regular checks help catch problems before they escalate. Common maintenance tasks include:

• Flushing the system: periodically clear the pipe with water or a drain snake to remove sediment.
• Inspecting backfill: look for settled or compacted backfill that reduces drainage efficiency.
• Checking grates and outlets: ensure discharge points are free of obstructions and frost damage.
• Visual inspections: watch for damp patches, settling, or new cracks along the wall after heavy rain.

Troubleshooting signs: damp soil behind the wall, pooling water at the base, cracks in the wall, or soil shifting indicate possible drain blockages, insufficient slope, or backfill issues.

Troubleshooting tips: start with a surface flush, then inspect the trench for sediment buildup, and verify the slope toward the discharge. If water still backs up, consult a drainage professional for a more thorough assessment.

Cost considerations and when to hire a professional

Costs for retaining wall drainage vary by site, materials, and location. Consider the long-term value: proper drainage reduces wall repair costs, water intrusion, and landscape damage. When to call a pro:

• Structural concerns such as visible wall movement or significant cracks
• Complex layouts, high walls, or challenging soil conditions
• Existing utilities or a restricted discharge path that requires design changes

DIY work can be suitable for simple installations with straightforward backfill and a clear discharge path. Always prioritize safety, local codes, and quality materials. A professional can design a system tailored to site conditions and ensure compliance with drainage regulations.

Codes, permits, and safety considerations

Local building codes may require permits or inspections for retaining wall drainage work, especially for taller walls or projects involving changes to grading and drainage outlets. Always check with your city or county building department before starting.

Safety precautions include:

• Wearing protective gear when excavating and handling heavy materials
• Ensuring trench walls are stable and properly supported
• Avoiding work near footings, foundations, or utility lines
• Verifying that discharge paths do not cause erosion or water contamination

Documentation: keep records of design plans, permits, and as-built drawings for future maintenance or repairs. Public safety and long-term performance depend on good planning, proper materials, and adherence to codes.
