French Drain Depth: A Practical Guide for 2026
Learn the optimal french drain depth for reliable drainage, considering frost lines, soil, and foundations. This guide covers depth ranges, use-case scenarios, and practical installation tips for homeowners and DIYers.
To establish effective drainage, aim for a French drain depth of about 18–24 inches below finished grade. Increase depth for deeper frost lines or poorly draining soils, and adjust when the trench runs near foundations or utilities. Drain Guide's analysis shows depth decisions strongly influence performance and longevity. This quick guideline can be refined by site inspection and local codes.
Understanding French Drain Depth
Depth is the vertical distance from finished grade down to the bottom of the trench where the perforated pipe sits. For most residential projects, the target range is 18–24 inches, which provides gravity-assisted drainage while keeping the pipe protected from surface issues and accidental damage. In colder climates, frost depth matters: deeper trenches reduce the risk that the pipe becomes blocked by seasonal ground movement or frozen soil. The Drain Guide team notes that depth choices should balance performance with practicality, since deeper trenches require more material and labor yet can offer better long-term reliability, especially on poorly draining soils or slopes that collect water. Consider local codes and frost depth maps as you plan, and document your decisions for future maintenance.
How to Determine Your Target Depth
Choosing the right depth begins with a site assessment. Start by estimating the active frost depth in your region, then compare it to your finished grade. If you live where the frost line is deep, plan for a trench that reaches below it. Measure from the ground down to the trench bottom while accounting for any vertical changes in your yard. Your calculation should also factor in soil drainage: clay soils often require deeper burial to ensure water can reach the tile, while sandy soils drain faster and may tolerate shallower depths. Create a simple depth equation: target bottom depth = finished grade depth − desired depth (18–24 inches). Validate your plan with local guidelines and adjust for any obstructions or utilities that might dictate routing. Drain Guide recommends recording the rationale behind your chosen depth to facilitate future inspections and maintenance.
Depth by Use Case: Foundations, Landscaping, and Downspouts
Foundation-focused drains typically require depth that clears the footer or sits near the base of a foundation wall, commonly in the 18–36 inch range depending on soil and drainage needs. For yard grading and landscape areas, 18–24 inches remains a practical default, with deeper installations reserved for poor drainage zones or larger swales. Downspout extensions or laterals feeding into the main trench may be shallower if water volume is limited, but you should still maintain a steady slope of at least 1% to ensure continuous flow. Adjust depth in response to water velocity, desired travel distance, and the potential for ground movement after heavy rain.
Weather, Climate, and Frost Line Considerations
Frost depth is a key factor. In regions with deep freeze, you’ll often need to bury the drain deeper than 24 inches to prevent heaving and ice blockages. Conversely, in milder climates, 18 inches can be sufficient if the soil drains well and grading directs water toward the trench. When planning, consult frost depth maps and local building codes to determine if you should go deeper than the typical 18–24 inch range. If you’re near a property boundary or a driveway, ensure your trench alignment respects setbacks and avoids future disputes.
Soil Type and Drain Depth Interaction
Soil type dramatically affects how water moves toward the drain. Sandy soils drain quickly and may tolerate shallower installations, while heavy clays store water longer and may require deeper burial and broader gravel beds to promote infiltration. Loamy soils typically strike a balance. If your soil compresses under foot traffic or heavy rainfall, you may need to extend the depth to maintain adequate drainage while ensuring the trench remains stable. Always test soil permeability in the trench area before finalizing depth.

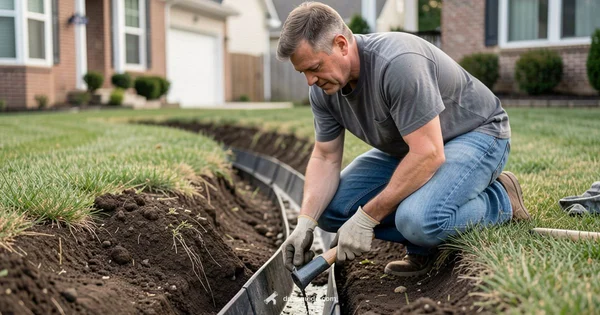

Building the Trench: Tools and Measurements
Accurate depth starts with the right tools: laser level or string line, a long tape measure, and a trenching implement or excavator. Mark the trench outline, then drop a plumb line or laser to confirm the bottom elevation. Check with a level to ensure the trench bottom maintains a consistent depth across its length, factoring in any slope along the run. A practical approach is to plan for a slight downward slope (about 1/4 inch per foot) toward the discharge point. Maintain a 6–8 inch gravel bed beneath the pipe for proper filtration and drainage, and use a geotextile fabric to prevent soil intrusion into the gravel bed.
Gravel, Pipe, and Sleeve Depth: A Practical Guide
Place the perforated pipe on a compacted gravel bed within the trench. Surround the pipe with more gravel (roughly 4–6 inches above and below) to promote infiltration and water movement while protecting the pipe. Use a perforated pipe with appropriate spacing and ensure a proper sock or sleeve to minimize soil intrusion. A layer of landscape fabric above the gravel prevents soil contamination but allows water flow. Extend the gravel depth at curves or transitions to support even water distribution and reduce blockages.
Common Mistakes and How to Avoid Them
Common errors include trenching too shallow, failing to maintain consistent slope, and using inadequate filter fabric or gravel depth. Going too shallow can lead to surface water infiltration and freezing issues, while a flat grade prevents drainage. Always verify the slope, keep a continuous flow toward the outlet, and check that the trench is below the frost depth. Avoid over-compacting soil around the trench, which can impede water infiltration and drain performance.
Maintenance, Longevity, and Seasonal Effects
A properly buried French drain ages well when protected from surface disturbances. Inspect the outlet and trench periodically for clogging, sediment buildup, or root intrusion, especially after storms. Seasonal soil expansion and contraction can affect depth perception, so re-checks after heavy rains are prudent. Flushing the system through the outlet or cleanouts can help maintain performance. Consider a maintenance plan that includes routine checks for debris and植物 roots, and ensure that the trench remains below grade to preserve drainage efficiency.
Cost, Planning, and Time Considerations
Depth choices influence material quantities, trench width, and labor costs. Deeper trenches require more gravel, longer piping, and possibly larger equipment, increasing both material and labor costs. When budgeting, consider a range rather than a fixed price and plan for potential site-specific adjustments. The overall time to install per 100 ft is typically in the 2–4 hour range, depending on soil conditions, accessibility, and whether you’re trenching by hand or with equipment. A well-planned depth strategy reduces call-backs and post-installation issues.
Depth guidance by site factors for typical French drain installations
| Factor | Recommended Depth (inches) | Notes |
|---|---|---|
| Finished grade depth | 18-24 | General residential range |
| Frost line consideration | 24-36 | Below active frost depth when possible |
| Soil drainage capacity | 12-24 | Adjust for clay vs sand vs loam |
| Foundation/utility setbacks | 18-36 | Deeper near structures; ensure clearance |
| Near walls or slope transitions | 12-24 | Respect grade changes and drainage path |
Got Questions?
What is the recommended depth for a French drain?
A common target depth is 18–24 inches below finished grade for typical yards. Deeper burial may be necessary in frost-prone areas or for poorly draining soils. Always verify local codes and frost depth maps before digging.
A common target is 18 to 24 inches, but you may need deeper burial for frost or clay soils. Check local codes.
Does depth change near a building foundation?
Yes. When the drain runs near a foundation, depth often increases to avoid moisture near the footer and to match the foundation drainage needs. Typical ranges can extend to 18–36 inches depending on soil and structure.
Foundations often require deeper burial, sometimes 18 to 36 inches, depending on soil and design.
Can I install a French drain shallower than 18 inches?
Shallow installations are possible in well-draining soils or for surface water with a direct route to a low point, but they reduce effectiveness during heavy rain or in clay soils. Aim for at least 18 inches when frost is a concern.
Shallow installs can work in some cases, but 18 inches is a safer default in many areas.
How does frost depth influence the drain depth?
If your frost depth is deep, your trench should be deeper than the frost line to prevent heaving and blockages. In milder climates, frost depth matters less, allowing the standard 18–24 inch range.
Deep frost means deeper trenches; milder climates allow shallower depths within standard ranges.
Does soil type affect depth decisions beyond drainage?
Yes. Clay soils retain water longer and may require deeper burial and larger gravel beds to promote infiltration. Sandy soils drain quickly and might tolerate slightly shallower depths with adequate slope.
Soil type changes how deep you go and how you lay gravel and pipe.
Is there a difference between indoor and outdoor French drains depth?
Most French drains are outdoors, but if you’re routing water under slabs or through basements, depths are dictated by structural and moisture control needs and may require design changes and professional guidance.
Outdoors is typical; indoors requires special design to protect foundations and moisture barriers.
“Depth decisions for French drains balance climate, soil, and structure to ensure reliable drainage and long-term performance.”
The Essentials

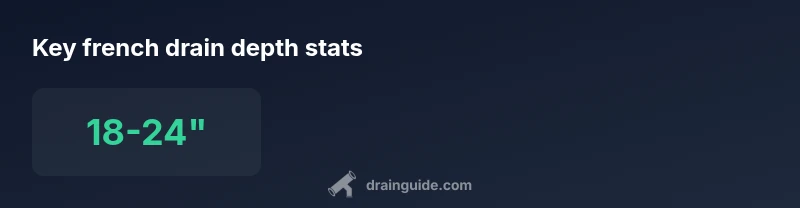

- Aim for 18-24 inches beneath grade in typical installations
- Increase depth for deep frost lines or poor drainage
- Inspect frost depth maps and local codes before digging
- Accommodate soils with appropriate gravel and filter fabric
- Plan for proper slope to outlet and be mindful of foundations
