In this guide you’ll learn to install a french drain in a crawl space to reduce moisture, deter mold, and protect structural integrity. You’ll plan the layout, choose durable materials, and follow safe, step-by-step installation practices to channel groundwater away from living spaces and toward a sump or exterior discharge.
What a french drain in crawl space does
A french drain in crawl space is designed to intercept groundwater and capillary moisture before it rises into your living areas. By piping water away from foundation walls and directing it to a sump or exterior outlet, you reduce humidity, deter mold growth, and minimize wood rot and mildew in confined spaces. TheDrain Guide team notes that properly installed drains help maintain indoor air quality and protect structural components over time. If you’ve noticed damp walls, musty odors, or condensation on ductwork, a crawl space drain can be a pivotal part of your moisture-management strategy. This section explains the core purpose, typical layouts, and how a well-planned system fits with your home’s venting and drainage plan. Drain Guide analysis emphasizes planning and correct slope as the two biggest success factors.
Planning considerations and layout options
Successful installation starts with a clear plan. For a crawl space french drain, you typically run a perforated pipe in a gravel bed along the lowest point or around the perimeter, then cover with fabric to prevent sediment intrusion. Decide between gravity discharge to an exterior outlet or a sump-pump–driven system inside the crawl space. In either case, maintain a gentle slope toward the drainage exit and avoid routing near utility lines or HVAC components. The Drain Guide team highlights that alignment with existing drainage features and avoiding cross-traffic beneath the home reduces risk of disturbance during backfill and future maintenance. Consider access for future cleanouts and a straightforward path to the sump or daylight exit.
Materials, components, and layout considerations
Key components include a perforated drainage pipe (usually 4-inch diameter), geotextile fabric, and a bed of clean gravel or crushed stone. The pipe is typically laid in a trench with fabric wrapped around it to keep sediment out, then backfilled with gravel before final soil cover. For crawl spaces, a sump pump is a common choice if gravity discharge isn’t feasible, but a gravity-fed exit to a proper outdoor drain can work in some homes. Always plan for cleanouts and an accessible outlet. Drain Guide’s practical guidance stresses sizing the trench to accommodate the pipe and fabric without crowding, plus leaving space for a future pump or discharge line.

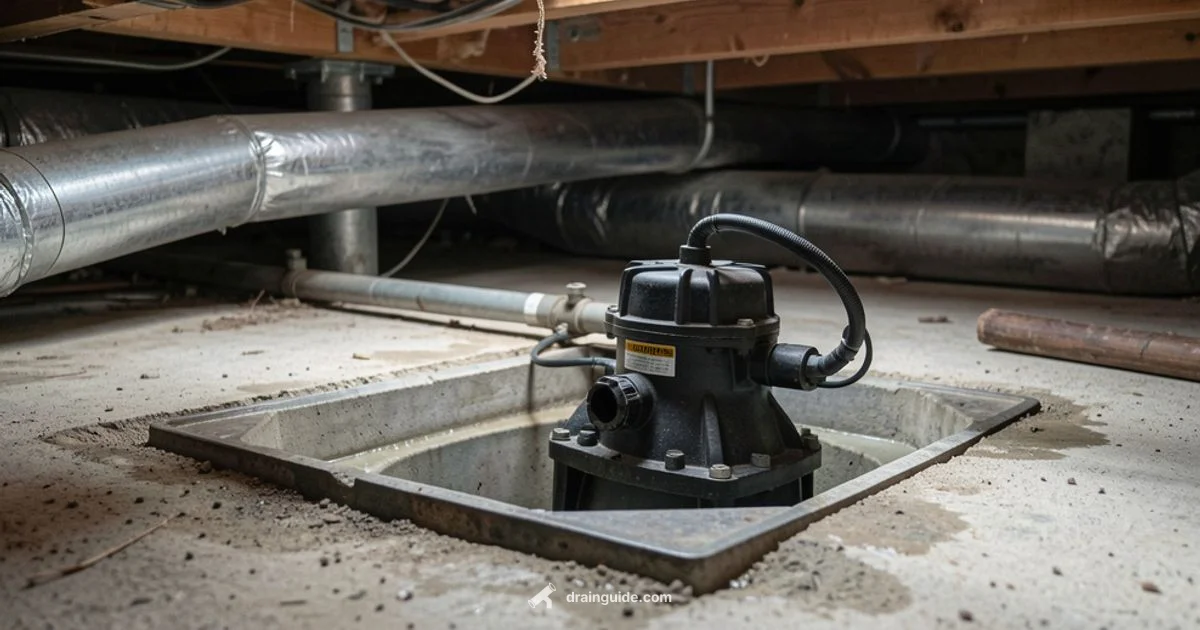

Sump options, discharge planning, and venting considerations
Discharge planning is critical. If you rely on a sump pump, ensure the discharge line leads away from the foundation and into an appropriate drainage path (not into your neighbor’s crawl space or under the home’s soil-facing surfaces). If gravity discharge is feasible, route toward a designated exterior drain or dry well with a check valve. In both cases, verify that the crawl space remains vented to prevent moisture buildup and consider a dehumidification strategy alongside the drain. Drain Guide emphasizes coordinating drainage with your crawl space’s ventilation and moisture-control plan to maximize long-term effectiveness.
Common pitfalls and mold prevention strategies
Common mistakes include compacting the backfill, using non-porous fabric, and failing to maintain proper slope. Mold and odor issues often recur when groundwater isn’t redirected away from the footprint of the home or when the system is buried too deeply without a vent. To prevent this, ensure the fabric remains loose, the gravel bed provides adequate drainage, and there is a clear path for air circulation around the drain components. Regular inspection after heavy rains helps catch blockages early and keeps moisture levels in check. The Drain Guide team notes that ongoing maintenance is essential to prevent mold-prone damp spots from returning.
Maintenance, inspection routines, and long-term care
A successful crawl space drainage system requires periodic maintenance. Inspect the trench for sediment buildup, test the discharge outlet, and verify that the sump pump (if installed) cycles appropriately. Clean or replace fabric as needed and check for any signs of backflow or clogging around joints. Seasonal humidity checks with a hygrometer can help you decide whether dehumidification should accompany the drain. Drain Guide reminds homeowners that proactive maintenance keeps the system effective for years and helps preserve the integrity of structural members exposed to damp environments.
When to call a professional and safety considerations
Certain installations involve electrical components and heavy digging in tight spaces, which can pose risks. If you’re unsure about electrical connections for a sump pump, or if utilities run near the crawl space, contact a licensed plumber or drainage specialist. Always turn off power to sump equipment before servicing and use protective gear. The Drain Guide team suggests a professional consult for complex layouts or if you encounter stubborn groundwater flow that defies simple routing. Safety first keeps you and your home protected during any crawl-space project.
Tools & Materials
- Perforated drainage pipe (4-inch PVC or corrugated)(Choose perforations facing downward; plan length to reach sump or exterior exit)
- Geotextile filter fabric(Wrap around the pipe and line the trench to prevent sediment)
- Crushed gravel or clean stone(Backfill around the pipe to promote filtration and flow)
- Shovel or trenching tool(Wide enough for pipe, fabric, and backfill; maintain slope)
- PVC connectors and adhesive(For tight turns and secure joints; use primer/ cement as needed)
- Sump pump (optional) or exterior discharge kit(Choose based on whether gravity discharge is possible)

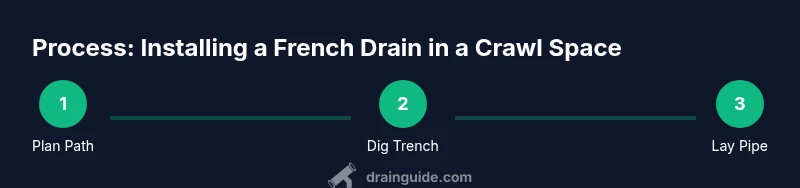

Steps
Estimated time: 3-6 hours depending on trench length, crawl space access, and new line complexity
- 1
Assess site and plan
Survey the crawl space to identify the lowest points and potential discharge routes. Mark where utilities run and picture a path from the perimeter toward the sump or daylight exit. This step sets the route and helps ensure an effective slope.
Tip: Draft a simple sketch showing trench line, pipe layout, and discharge path to avoid rework. - 2
Dig the trench with space for fabric
Dig a trench along the planned path; keep it wide enough for fabric and backfill. Ensure a consistent slope toward the exit, typically toward the sump or exterior drain. Remove excess rubble to prevent clogs.
Tip: Use a trenching shovel or small excavator if space allows; keep sides clean to ease fabric placement. - 3
Lay fabric and place gravel
Line the trench with geotextile fabric, overlapping edges. Add a base layer of gravel to promote drainage and provide a bed for the perforated pipe. Avoid overpacking fabric; it should remain breathable.
Tip: Secure fabric edges with stakes or pins to prevent movement during backfill. - 4
Install perforated pipe and backfill
Place the perforated pipe on the gravel bed with holes facing down. Connect sections with appropriate fittings, seal joints, and cover with more gravel before layering fabric again or finishing with soil.
Tip: Use elbows and outlets near the endpoint to direct water efficiently toward the discharge. - 5
Connect to discharge and test
If using a sump pump, install and wire it according to code, ensuring a safe outlet to the exterior. If gravity discharge is used, route to the exterior drain. Run water through the system to verify flow and check for leaks.
Tip: Place a cleanout at accessible points to simplify future maintenance. - 6
Restore space and monitor
Backfill the trench with soil, compact lightly, and restore any insulation or vapor barriers. Monitor moisture levels after heavy rains and refine the drainage path if necessary. Regular checks help prevent future dampness.
Tip: Document the installed route for future repairs or expansion.
Got Questions?
Do I need a permit to install a french drain in a crawl space?
Permit requirements vary by location, so check your local building codes and zoning rules. Inspections may be required for drainage work that affects the foundation, especially when electrical components like sump pumps are involved. Drain Guide recommends confirming requirements before starting.
Permit requirements depend on your area; check local codes and obtain any necessary inspections before starting.
Is it safe to install a french drain in an active crawl space?
It can be safe when proper safety protocols are followed, including power isolation for sump pumps and careful handling of electrical components. Adequate ventilation and mold-prevention strategies should accompany drainage work. Drain Guide advises professional help if you encounter complex moisture patterns.
Yes, with proper safety steps and ventilation; consider professional help for complex moisture issues.
Can I install without tearing out drywall or major finishes?
Many crawl-space projects require minimal surface disturbance, but some routes may require panel removal or access panels. Plan your path to minimize interior disruption and coordinate with any finished areas if you must run lines near walls.
Often you can, but plan to limit disruption and have backup access routes if needed.
What maintenance does a crawl space drainage system require?
Inspect the trench and exit for sediment buildup, test discharge flow, and verify pump operation if a sump is used. Schedule annual checks and more frequent reviews after heavy rains to keep moisture under control.
Check for clogs and test the system yearly, especially after rainstorms.
How long does a french drain in crawl space last?
Durability depends on materials, installation quality, and climate considerations. With proper maintenance and correct installation, a well-designed crawl-space drain system remains effective for many years.
A well-installed system lasts for many years with regular maintenance.
How does a french drain compare to a sump-pump system?
A french drain redirects water away from the area, while a sump pump actively removes water. In many crawl spaces, a combination works best: primary drainage via a drain tile and a sump pump as a backup or active removal when needed.
Drain tiles move water; sump pumps remove it. Combined use is common for reliability.
Watch Video
The Essentials
- Plan path and discharge before digging
- Use fabric, gravel, and a perforated pipe correctly
- Test the system before final enclosure
- Maintain moisture control with ongoing inspections
- Consult a pro if uncertain about electrical or structural safety
