With a sump pump french drain, you’ll redirect groundwater away from your foundation to prevent basement flooding. This quick answer outlines what you’ll achieve, key components, and essential steps for installation and maintenance. According to Drain Guide, a well-designed layout and regular checks are critical for long-term effectiveness. Prepare for proper grading, venting, and pump sizing.
What is a sump pump french drain and why it matters
A sump pump french drain combines a trench drain with a submersible pump to move groundwater away from your foundation. When water collects near the footing, this setup reduces hydrostatic pressure and helps keep basements dry. According to Drain Guide, a well-designed system relies on proper slope, correct materials, and reliable discharge. The result is fewer damp walls, less mold risk, and more peace of mind for homeowners. This approach fits into broader exterior waterproofing strategies, safeguarding basements, crawlspaces, and even yard borders from seasonal runoff. For DIYers, the concept is approachable, but success hinges on careful planning, safe digging, and precise connections to the discharge point. Drain Guide emphasizes sizing the pump correctly and choosing the right trench layout to minimize future maintenance.
How a sump pump french drain works in practice
At its core, a sump pump french drain is a buried pipe system wrapped with fabric and filled with gravel. Water moving toward the perforated pipe enters the trench and is carried to a sump basin, where the pump pushes it out through the discharge line. The pump should be sized to handle the expected water volume and, where power reliability is an issue, paired with a backup battery. The system relies on gravity to move water away from the foundation, so proper slope away from the house is essential. In practice, you’ll see a sequence: collect water in the trench, channel it to the pipe, pump it to the discharge point, and release it away from living areas. Regular checks keep flow unobstructed by roots, sediment, or debris. Drain Guide notes that plantings around the drain should not block intake, and the discharge point should be far enough from living areas. A well-executed installation minimizes ponding, damp walls, and foundation pressure.
Site assessment and when to install a sump pump french drain
Before you dig, assess your property: identify common water paths, inspect downspout drainage, and note high-water areas. Look for basements or crawlspaces that flood after heavy rain, and consider soil type—clay or poor-drainage soils benefit from a french drain with a sump pump. Timing matters: plan ahead of the rainy season if possible, and choose weather windows that allow trenching without disturbing landscaping. Drain Guide recommends mapping your yard’s drainage to identify water pools and how groundwater approaches the foundation. Location matters: exterior trenches reduce interior disruption, interior options can work in tight spaces, and climate influences depth and materials. This planning phase reduces rework and ensures the system channels water efficiently during storms.
Planning the layout: slope, discharge, and materials
A solid plan translates into a reliable sump pump french drain. Choose a route that follows natural water flow away from the foundation and ends at a safe discharge area. The trench should have a gentle outward slope to keep water moving, and include a cleanout access for maintenance. Materials include perforated pipe, clean gravel, landscape fabric, and a sump basin with a dependable pump. Decide whether to run the line to a dry well, rain garden, or an approved municipal storm line. Keep the trench narrow enough to protect landscaping but wide enough for a stable gravel bed. Drain Guide recommends testing several layout options visually with chalk lines before digging and considering winter conditions in freezing climates to protect exposed piping.
Selecting materials and components
Choosing the right components ensures efficiency and longevity. For the pipe, select perforated pipe that matches your home’s drainage needs and adapters for your discharge. The gravel should be clean and rounded to resist compaction, and the landscape fabric keeps silt from clogging the pipe. The sump pump should have adequate head pressure and, if outages are common, a backup power option. A check valve prevents backflow when the pump cycles off. Use solvent-based PVC cement to connect pipes and ensure every joint is secure. If burying the system, plan a service access point for future maintenance. The pump basin should rest on a stable bed rather than direct soil. Better materials reduce clogging and simplify upkeep, a point Drain Guide consistently emphasizes.
Maintenance and troubleshooting for your sump pump french drain
Maintenance keeps the system effective for years. Periodically inspect the discharge line for kinks or blockage and ensure the check valve remains airtight. Clean the trench collar and remove roots or debris from the intake. Test the pump monthly by adding water to the trench or running a test cycle to confirm activation and discharge. In freezing climates, winterize the discharge line to prevent freezing. Keep landscape fabric clean to maintain intake efficiency. If you notice irregular flow, inspect for clogs, valve issues, or slope problems. Drain Guide recommends a professional check if repeated failures occur or if pooling persists after maintenance.
Common mistakes to avoid during installation
Never dig without checking for underground utilities; always call 811 before you dig. A faulty slope or shallow discharge line leads to standing water near the foundation. Skipping fabric or using dirty gravel invites sediment and frequent clogs. Installing an undersized pump or skipping a backup power option increases flood risk during outages. Poor grading around the drain can leave water pooling along the foundation. Rushing installation or skipping permits may create compliance issues. Drain Guide highlights that careful planning saves time, money, and future headaches.
Cost considerations and realistic timelines
Costs vary with material quality, trench length, pump size, and discharge strategy. Prices range based on site complexity, climate, and local labor rates, and DIY work can reduce labor costs but may require more time and effort. For complex layouts or code-sensitive installations, professional help may be worthwhile. Time-wise, plan multiple days if you’re working solo and more if you encounter utilities, extensive landscaping, or weather delays. Drain Guide suggests budgeting for contingencies such as trench restoration and potential upgrades to the discharge system, as well as a reliable backup power solution for outages.
Real-world scenarios: basement, crawlspace, and yard drainage
The sump pump french drain strategy shifts with location. In basements, interior trenches near the footing can minimize interior disruption; for crawlspaces, you might extend the drain exterior or toward a yard feature; for yards, a surface drain or French drain may integrate with a garden bed or dry well. Across all locations, proper grading, pump sizing, and a reliable discharge point remain essential. Drain Guide’s experience across climates shows that a well-planned system reduces moisture issues and extends home life. The final design should balance aesthetics, accessibility, and effectiveness, tailored to your climate and soil conditions.
Tools & Materials
- Shovel (round-point or trench)(Use for trenching and soil loosening.)
- Tape measure(For accurate trench length and slope checks.)
- Trench shovel or pick(Helps widen and shape the trench.)
- Perforated drain pipe (PVC or SDR)(Choose diameter to match system.)
- Clean gravel (0.5-1 inch)(Provides drainage bed around pipe.)
- Landscape fabric(Prevents sediment intrusion into pipe.)
- Sump pump (submersible)(Select based on anticipated water flow.)
- Check valve(Prevents backflow when pump stops.)
- Discharge line/pipe(Directs water to a safe area.)
- PVC cement & primer(Secure pipe joints.)
- Safety gear (gloves, goggles)(Protect eyes and hands.)
- Wheelbarrow or tote(Transport soil and gravel as needed.)
- Utility locator service contact(Call before digging to avoid utilities.)

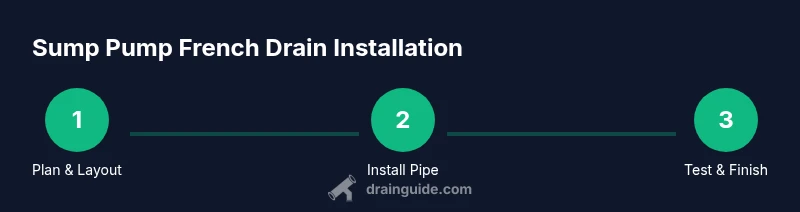

Steps
Estimated time: 6-12 hours
- 1
Assess site and plan trench route
Evaluate water paths, downspout outlets, and high-water zones. Decide a trench path that follows natural drainage away from the foundation and ends at a discharge point. This planning reduces future rework and helps sizing the pump and pipe.
Tip: Mark utilities first and check for underground lines before digging. - 2
Mark trench path and set slope
Use chalk lines or string to mark the trench. Establish a consistent outward slope (up to you) so water flows away from the house toward the discharge point. Confirm access for pipe placement and pump location.
Tip: Aim for a gentle 1-2% slope away from the foundation. - 3
Dig trench to planned depth
Excavate the trench to the planned depth, leaving room for fabric, gravel, and the pipe. Ensure sidewalls are stable and free of loose soil that could collapse onto the pipe.
Tip: Work slowly near foundations to avoid damaging footings. - 4
Line trench bottom with fabric and add gravel bed
Lay landscape fabric along the trench bottom to isolate soil and sediment. Pour a base layer of clean gravel to create a stable, well-draining bed for the pipe.
Tip: Overlap fabric edges to keep sediment from migrating into the pipe. - 5
Place perforated pipe with holes facing down
Install the perforated pipe along the trench, ensuring holes face downward toward the gravel bed. Maintain the intended slope and position for easy connection to the discharge line.
Tip: Use grommets or couplings as needed for transitions. - 6
Backfill around pipe with gravel and cover with fabric
Add more gravel around the pipe to keep it centered and evenly supported. Cover with fabric before a final layer of soil to protect the pipe while blending with landscaping.
Tip: Don’t crush the pipe by overfilling with gravel. - 7
Install sump pump and discharge assembly
Place the sump basin at the low point and install the pump with secure wiring and outlet. Attach the discharge line with a check valve to prevent backflow.
Tip: Test electrical connections and confirm GFCI protection. - 8
Connect discharge and test the system
Run the pump to verify proper discharge and flow. Observe for leaks, backflow, or blockages in the line and ensure water exits at the intended location.
Tip: Keep a rock or debris-free zone at the discharge outlet. - 9
Finish backfill and plan maintenance
Backfill remaining soil and restore landscaping. Create a simple maintenance plan: monthly pump tests, annual inspection, and weather-related checks.
Tip: Create accessible access for future maintenance.
Got Questions?
What is a sump pump french drain and how does it work?
A sump pump french drain diverts groundwater away from the foundation to a discharge point, protecting the basement. It combines a trench with a perforated pipe, gravel bed, landscape fabric, and a submersible pump to move water away from the house.
It diverts groundwater away from your foundation using a trench with a perforated pipe and pump.
Can I install this myself, or should I hire a professional?
DIY installation is feasible for simple sites with careful planning, but some layouts require professional help to ensure code compliance and proper sizing. Evaluate site complexity and local regulations before starting.
You can do it yourself if the site is straightforward, but consider a pro for complex layouts.
How deep should the trench be for a sump pump french drain?
Depth depends on soil, foundation height, and pump needs. Plan enough depth for fabric, gravel, and pipe, plus space for backfill. Check local guidance for frost protection if you live in cold climates.
Depth varies by site; ensure room for fabric, gravel, and pipe, and follow local frost guidance.
Do I need a battery backup for the sump pump?
A backup power option helps maintain drainage during outages, which is a common cause of basement flooding in storms. Pair with a battery backup or generator where power reliability is an issue.
A backup power option is recommended if outages are common in your area.
How often should I test the system?
Test the system monthly by simulating water flow and confirming the pump activates and discharges properly. Do a more thorough annual inspection that includes cleaning and checking fittings.
Test monthly, and inspect annually for wear and leaks.
What maintenance is required for a sump pump french drain?
Keep the discharge path clear, inspect the pump and check valve, clean debris from the trench, and verify the fabric and gravel are intact. Schedule professional checks if you notice persistent issues.
Regularly clear debris, inspect components, and verify proper operation.
Watch Video
The Essentials
- Plan layout before digging.
- Use correct materials and ensure proper slope.
- Test the system after installation.
- Schedule regular maintenance checks.
- Follow local codes and safety guidelines.
