French Drain Retaining Wall: A Homeowner’s Guide to Drainage
Learn how to install a french drain retaining wall to manage drainage around your home. This educational guide covers planning, materials, step-by-step installation, maintenance, and safety for homeowners.
According to Drain Guide, a french drain retaining wall redirects groundwater away from foundations while stabilizing slopes. This guide walks homeowners through planning, materials, installation, and maintenance to build a durable, code-savvy system that blends with landscape features. With practical steps and safety tips, you’ll gain confidence to complete the project.
Understanding the Concept: French Drain Retaining Wall
A french drain retaining wall combines two time-tested drainage and earth-stabilization strategies. The French drain is a perforated pipe wrapped in fabric, surrounded by gravel, designed to collect subsurface water and channel it to a safe outlet. The retaining wall provides structural support for soil on a slope or behind a foundation and can disguise the drain while guiding water toward the outlet. When integrated, the system creates a continuous drainage path that minimizes hydrostatic pressure against foundations, reduces soil erosion, and improves the usability of sloped spaces. For homeowners, the key is to plan for adequate trench width, correct pipe slope, and compatible wall materials that resist weathering and freeze-thaw cycles. The result is a durable, low-maintenance solution that works with existing landscaping and drainage patterns rather than fighting against them. Drain performance depends on proper filtration, backfill choices, and a clean outlet that remains free from clogs.
Planning Essentials: Site, Design, and Permits
Successful integration of a french drain retaining wall starts with a clear plan. Identify the drainage path away from the home, note soil type (clay, silt, sand), and assess slope to determine trench length and depth. Consider where water will exit—an existing storm drain, a dry well, or a natural low spot. Check local codes and zoning rules; permits may be required for structural walls or extensive drainage work. Choose wall materials that tolerate outdoor moisture and freeze-thaw cycles, and design the wall height and setback so it remains stable under seasonal loading. Create simple sketches or use a drone or tape measure to map the route. The goal is a design that minimizes maintenance while delivering reliable drainage.
Site Preparation and Layout
Before trenching, mark the wall line and drain path with spray paint or stakes. Verify utilities and property boundaries, and ensure the planned outlet has an unobstructed route to daylight or a licensed discharge point. Establish a clear grading plan to direct water away from the foundation and toward the outlet. Prepare the area by clearing vegetation and debris, and lay a work surface so you can move materials without disrupting the existing landscape. Accurate layout saves time and reduces the risk of rework later in the project.
Drainage Details: Pipe, Gravel, and Fabric
The heart of the system is the perforated pipe laid on a stable base with a clean, angled slope toward the discharge point. Surround the pipe with by-pass gravel (not crushed fines that can clog), and wrap the pipe in a geotextile fabric to keep sediment from infiltrating the trench. The space above the fabric should be filled with additional gravel to promote rapid water flow while preventing soil intrusion. Avoid sharp corners or kinks in the pipe, and ensure joints are secure. The fabric and gravel layer together form a three-layer filtration and drainage path that maximizes efficiency.
Wall Construction Integration: Backfill and Finishing
The retaining wall must offer durability against moisture, pressure, and frost. After installing the drain and backfill layers, position a robust wall backing and ensure the interlock or footings are level. Backfill behind the wall with a well-draining soil mix and compact gradually to avoid settling. Finish with topsoil or decorative fill that blends with the landscape, then apply erosion control measures such as mulch or ground cover. Proper integration prevents washouts and keeps water from seeping behind the wall.
Maintenance and Longevity: Inspections and Repairs
Seasonal inspections help catch clogs, settling, or bulges early. Look for pooling water, misaligned wall sections, or exposed piping. Remove debris from the outlet and check fabric for tears or clogging. If a section settles or cracks appear, repair promptly to prevent larger failures. Routine maintenance can extend the life of a french drain retaining wall for many years with minimal ongoing effort.
Safety Considerations and Local Codes
Drainage projects involve trenching and heavy materials; always wear protective gear and confirm that you are compliant with local codes. Consider professional assistance for structural walls or complex drainage paths. Never work alone on deep trenches, and keep children and pets away from the work zone. Slope, load-bearing requirements, and setback regulations vary by jurisdiction, so consult local authorities to ensure compliance.
Quick Reference: Common Configurations
Common configurations include a wall built on the uphill side of a trench with the drain running behind it, or a wall adjacent to a trench that directs water away from a foundation. The drip line/outlet location may vary; some projects use a dry well or rain garden as a multi-outlet solution. Adapt the layout to your landscape’s natural flow while maintaining a continuous drainage path.
Tools & Materials
- Perforated drainage pipe (drain pipe)(4-6 inch diameter recommended; ensure perforations face down.)
- Crushed gravel or clean stone(Coarse grade 3/4 to 1 inch; avoid fines that clog.)
- Geotextile fabric(Wrap pipe and line trench to prevent sediment.)
- Landscape fabric or backfill fabric(Separate layers to control soil intrusion.)
- Trenching tools (shovel, trenching spade, or small trencher)(To create a clean, straight trench.)
- Wall materials (concrete, masonry, or reinforced blocks)(Choose withstands moisture and freeze-thaw cycles.)
- Compactor or hand tamper(For compacting backfill around the wall.)
- Tape measure, level, string line(For accurate layout and plumb walls.)
- Outfall outlet or discharge point hardware(Directs water to daylight safely.)
- Safety gear (gloves, eye protection, sturdy boots)(Always wear PPE during excavation.)
Steps
Estimated time: 8-12 hours

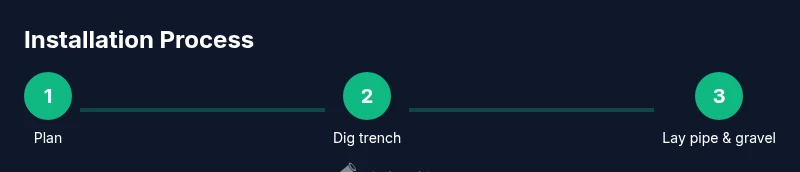

- 1
Plan and mark the layout
Define the wall line and drainage route. Confirm slope, outlet location, and setbacks from utilities. Draft a simple plan to guide trenching and wall placement.
Tip: Use spray paint to mark alignment. Double-check for underground lines before digging. - 2
Dig the trench for the drain and wall
Excavate a trench wide enough for pipe, gravel, and fabric. Maintain a consistent downward slope toward the outlet, typically around 1/4 inch per foot.
Tip: Keep trench walls clean and use a straight edge to ensure uniform depth. - 3
Install wall foundation and seating for the trench
Place the wall base or footing as required by your wall type. Ensure the wall is plumb and level to prevent future settlement.
Tip: Check level frequently and adjust supports as needed. - 4
Lay fabric and base gravel
Line the trench with geotextile, then add a base gravel layer to form a stable substrate for the pipe.
Tip: Overlap fabric edges and avoid wrinkles that can trap sediment. - 5
Install perforated pipe with slope
Place the perforated pipe along the trench bottom with perforations facing downward. Connect joints to a discharge outlet and maintain continuous slope.
Tip: Seal joints properly and test for alignment before covering. - 6
Backfill and cover the pipe
Cover the pipe with more gravel and fold the fabric over to protect from soil intrusion. Add a final gravel layer if needed.
Tip: Do not crush the fabric; keep it taut but not stretched. - 7
Backfill behind the wall and compact
Backfill the wall area with a well-draining soil mix and compact gradually to avoid settlement pockets.
Tip: Work in lifts and compact evenly to maintain wall stability. - 8
Connect outlet and test the system
Attach the drain outlet to a suitable discharge point. Run water through the system to verify flow and look for leaks or blockages.
Tip: Address any blockages or misaligned sections before finishing. - 9
Finish and landscape
Backfill final soil, seed or mulch, and grade away from the wall to promote drainage. Apply erosion controls as needed.
Tip: Use mulch or ground cover to minimize soil erosion near the wall.
Got Questions?
What is a french drain retaining wall and what problems does it solve?
A french drain retaining wall combines a subsurface drainage path with a stabilizing wall. It channels groundwater away from foundations, reduces soil erosion, and helps manage runoff on sloped landscapes.
A french drain retaining wall combines drainage and a stabilizing wall to direct water away from your home and reduce erosion.
Do I need a permit to install this system?
Permit requirements vary by location and wall type. Check with your local building department to confirm whether drainage work or a retaining-wall installation requires a permit.
Local codes vary—check with your building department to know if a permit is required.
What slope should the drain have for effective drainage?
Aim for a steady slope toward the outlet to ensure water flow. A common guideline is about a 1/4 inch drop per foot of length, adjusting based on site conditions.
Maintain a gentle slope toward the outlet, roughly a quarter inch per foot.
How long will a french drain retaining wall last with proper maintenance?
With proper installation and maintenance, the system can function for many years. Regular inspections help catch clogs or settling early.
If well maintained, this system can last many years with periodic checks.
Can I install this myself, or should I hire a professional?
A confident DIYer can handle planning and basic installation, but a professional is recommended for complex walls, large slopes, or deep trenches.
DIY is possible for simple setups, but consult a pro for complex installations.
What materials work best for longevity and performance?
Use perforated pipe designed for drainage, clean gravel, and durable wall material rated for outdoor exposure. Ensure the outlet is protected from sediment and debris.
Choose proven drainage pipe, clean gravel, and sturdy wall materials with a proper outlet.
What maintenance is required after installation?
Inspect outlet flow, remove debris, and check for settling or cracks in the wall. Refill backfill if you notice gaps or washouts.
Check the outlet, clear debris, and watch for settling or cracks.
Watch Video
The Essentials
- Plan before you dig and mark utilities.
- Use the right combination of pipe, gravel, and fabric.
- Maintain slope and proper wall alignment for durability.
- Inspect the system seasonally to prevent clogs and settling.
