Air Handler Drain Pan: Definition, Maintenance, and Troubleshooting
Learn what an air handler drain pan does, common failures, and practical maintenance steps to prevent leaks, water damage, mold in your home today.
Air handler drain pan is a shallow tray beneath an HVAC air handling unit that collects condensate from the cooling coil and channels it to a drain, preventing water damage and mold growth.
What is an air handler drain pan and why it matters

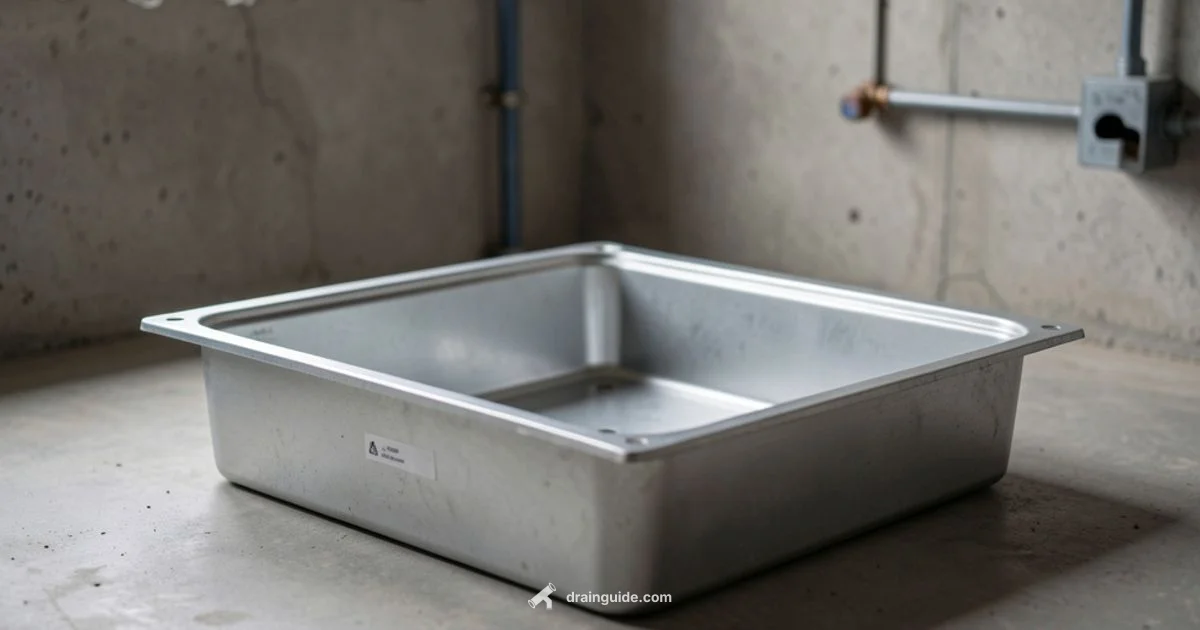

The air handler drain pan sits beneath the evaporator coil in many central air setups. Its primary job is to collect condensate that forms when warm, humid air is cooled by the coil, and then direct that water to a drain line. If the pan fails or is overwhelmed, water can leak into living space and promote mold growth behind walls or in attic spaces. According to Drain Guide, a properly sized and undamaged drain pan is a quiet, invisible safeguard for your home comfort and structural integrity. Regular inspection helps catch rust, cracks, or pinholes before a leak becomes a problem. In most homes, the drain pan is metal or plastic and is designed to fit the specific air handler model. Access to the pan is typically through the air handler cabinet or an accessible service panel. The drain pan works in concert with a primary condensate drain line and, in many systems, an auxiliary overflow pan that triggers a shutoff if the primary line clogs.
How condensate forms and the role of the drain pan
When the air conditioner or heat pump runs, the evaporator coil removes humidity from the air. The moisture condenses on the coil surface and drips into the drain pan. From there, gravity and a properly pitched drain line carry condensate away. The air handler drain pan is therefore a first line of defense against indoor moisture. If the condensate line becomes blocked or the pan develops a crack, water can accumulate and back up into the unit or surrounding area. A secondary or overflow pan is often installed beneath the primary pan to provide an extra safety layer. Regularly inspecting both pans helps homeowners notice early signs of trouble, such as a slow drip, damp insulation, or a musty smell that indicates hidden moisture.
Common problems with drain pans and signs of trouble
Over time, metal pans can rust or corrode, while plastic pans may crack or warp. Visible leaks around the cabinet, damp insulation, or pooling water are obvious signs. Clogged condensate lines cause slow drainage and discharge of dirty water back into the pan. A corroded or damaged overflow switch may fail to shut down the system, increasing risk of water damage. Look for mold or mildew around the unit, which often signals ongoing moisture problems. If you notice gurgling noises from the drain line or frequent blockages, the pan or line may require cleaning or replacement.
Materials and design: plastic vs metal, coatings, pan sizes
Drain pans come in metal (galvanized steel or stainless) and various plastics. Metal pans offer durability but can rust in humid environments; plastics resist corrosion but may crack under stress. Coatings and paints extend life in challenging climates. Size and depth matter: a pan that is too small or shallow can overflow, while a pan that is too deep may not fit the air handler. Some designs include built-in insulation to reduce energy loss and prevent condensation on nearby surfaces. When choosing a replacement, ensure compatibility with your air handler model and confirm that the pan is rated for the condensate temperature and chemical composition in your system.
Maintenance steps to keep it functional
A proactive maintenance routine saves headaches and expenses. Start with a visual inspection at least twice a year, looking for rust, cracks, or loose seams. Clean the pan and the area around it with a mild detergent and water to remove dust and slime. Flush the condensate drain line with water or a safe cleaning solution to prevent clogs. Check the float switch or overflow alarm if your system includes one. If the system uses a secondary pan, inspect it for water level and test the alarm. Keep the surrounding cabinet dry and ensure proper insulation to avoid premature condensation in the cabinet.
Installation pitfalls and safety considerations
Incorrect installation can create more problems than it solves. Ensure the pan is properly supported and seated to prevent flexing, and verify the drain line is pitched correctly for gravity drainage. Avoid chemical cleaners that could damage seals or coatings; follow manufacturer guidance for any cleaners used. Before working, turn off power to the air handler and use safe lifting techniques. If you must modify the pan or drain lines, consult a licensed HVAC technician to prevent accidental leaks or system failure.
Troubleshooting: leaks, overflow, clogging
Identify the source of moisture by inspecting the drain pan first, then trace the condensate line for blockages or kinks. Clear line blockages with a flexible brush or appropriate tool, and flush the line with plain water. If the overflow switch trips repeatedly, test it according to the manufacturer’s instructions and replace it if faulty. If a pan is severely corroded or cracked, replacement is usually the safest option. Always address mold or persistent dampness promptly to protect indoor air quality.
When to replace vs repair the drain pan
Minor cracks or surface rust in a small, noncritical area may be repairable in some cases, but widespread corrosion, warped rims, or significant structural damage generally requires a pan replacement. If the condensate line frequently clogs or leaks, a new pan with improved drainage features or a better material choice can reduce recurring issues. Consider replacing both primary and overflow pans if the system shows ongoing moisture problems, as this can restore proper drainage performance and protect your home.
Pro tips and homeowner checklist
- Schedule seasonal inspections of the air handler drain pan and condensate line.
- Keep the area around the unit clean and dry to prevent hidden moisture.
- Use a durable, properly sized pan compatible with your air handler model.
- Test overflow protection and alarms regularly so a failure is caught early.
- When in doubt, consult a licensed HVAC pro to assess pan condition and drainage performance.
Got Questions?
What is the function of the air handler drain pan in an HVAC system?
The drain pan collects condensate from the evaporator coil and channels it to the condensate drain. It is a safety and moisture-control component that helps prevent leaks and mold growth around the air handler.
The drain pan collects condensate and sends it down the drain, helping prevent leaks and mold near your HVAC unit.
Where is the air handler drain pan located?
The drain pan is typically located under the evaporator coil inside the air handler cabinet. In some systems, a secondary overflow pan sits below the primary pan for extra protection.
It sits beneath the evaporator coil inside the air handler, with an optional secondary pan for overflow protection.
Can I replace an air handler drain pan myself?
Replacement is possible for skilled homeowners with HVAC experience. If you’re unsure about pan sizing, drain line routing, or electrical safety, hire a licensed technician to avoid leaks or malfunction.
If you’re comfortable with HVAC work, you can replace it yourself; otherwise call a licensed technician to ensure proper fit and drainage.
How often should I inspect the drain pan?
Inspect the drain pan at least twice per year, plus after severe weather or any indoor moisture event. Look for rust, cracks, or signs of standing water.
Inspect it twice a year and after big moisture events to catch problems early.
What causes a drain pan to clog or leak?
Common causes include a blocked condensate line, rust or cracks in the pan, and improper drainage pitch. Clogs can lead to overflows and hidden moisture behind walls.
Blockages, rust, or improper drainage cause leaks or clogs, leading to potential water damage.
Is mold a risk with a faulty drain pan?
Yes. Persistent moisture from a faulty drain pan creates an environment conducive to mold and mildew, which can affect indoor air quality and health.
Yes, moisture from a bad drain pan can lead to mold growth and poor air quality.
The Essentials
- Inspect drain pans for rust and cracks at least twice a year.
- Ensure proper pan size and drain line pitch to prevent overflow.
- Keep condensate lines clear to avoid clogs and backups.
- Use safe cleaners and avoid harsh chemicals near the pan.
- Replace severely corroded or damaged pans promptly to prevent water damage.
