Drain to P-Trap Connection: A Step-by-Step Guide
Learn to connect a drain to a P-trap safely and correctly with a complete parts list, step-by-step instructions, tips, and troubleshooting.
By the end, you will successfully connect a drain line to a P-trap, ensuring a secure slip-joint connection, proper trap arm length, and correct slope to prevent leaks and sewer gas. Gather a P-trap kit, adapters, plumber's putty or gasket, adjustable wrench, and a bucket. Follow the steps to avoid leaks and ensure a clean, compliant setup.
What is a drain to p trap connection and why it matters
The drain to p trap connection is the junction where waste water leaves the fixture and enters the trap assembly. The P trap creates a water seal that blocks sewer gases from entering the living space. A proper connection must match the drain size, provide a tight slip joint seal, and maintain a small but consistent slope in the trap arm. Getting this right is a common DIY task for homeowners, and doing it correctly reduces leaks and odors while protecting the rest of the plumbing network. Drain Guide emphasizes planning before you cut and checking all joints after installation to confirm a clean seal.
Safety building codes and venting basics
Before you begin, review local codes for trap size and venting requirements. Most kitchens use a 1 1/2 inch trap and a 1 1/2 inch trap arm, while bathrooms use 1 1/4 inch. Do not bypass vents or seal a trap directly into a wall without proper venting through the house drainage system. In most homes the vent is located upstream in the wall or roof, not at the under sink area. The goal is to prevent siphon and maintain a dry trap while meeting code requirements. According to Drain Guide you should verify parts and ensure compatibility with your existing plumbing before starting the job.
Choosing the right trap size and adapters
Select a trap size that matches your sink drain and the existing waste line. Kitchen sinks typically use 1 1/2 inch traps, while bathrooms often use 1 1/4 inch. Check the diameter stamped on the tailpiece and the trap neck, and pick adapters that match these dimensions. If your waste line uses a non standard size, you will need slip joint reducers to connect the trap to the pipe. Keep a few different washers on hand to ensure a tight seal and to compensate for minor alignment differences. Drain Guide notes that correct sizing is key to a leak free connection.
Assembling slip joints and attaching to the drain
Start by dry fitting the trap and tailpiece to confirm fit and alignment. Then assemble the slip nuts, washers, and adapters in the order from fixture to wall outlet. Avoid overtightening plastic slip joints, as this can crack fittings or deform washers. Use plumber s tape on any threaded metal connections to improve sealing. Keep the work area aligned with the wall drain so the trap does not twist under pressure. Draining any residual water beforehand makes the process cleaner and reduces mess.
Sealing and testing for leaks
Once the trap is assembled, snug the slip nuts and tighten evenly. Recheck every joint for leaks by running water into the basin. Wipe away water and look for drips over the next few minutes. If a leak appears, reseat the washer and tighten gradually. For stubborn leaks, disassemble and inspect the washer or replace the gasket. A quick test with a dry paper towel around joints can help catch slow drips before you finish.
Common mistakes to avoid
Do not mix metal and plastic slip joints without proper adapters. Avoid using cement on slip joints unless you are permanently gluing sections. Do not overtighten slip nuts as this can crack fittings or compress gaskets. Forgetting the trap arm slope can allow standing water or sewer gas to back up. Failing to support the pipe when loosening nuts can lead to joint misalignment and leaks.
Troubleshooting leaks and venting concerns
If you notice a leak around a joint, reseat the washer and try again with a new gasket. Check that the trap is level and the tailpiece sits flush with the nut. If the odor persists or there is gurgling in other fixtures, review venting and ensure the main drain is clear. In some cases a hidden leak requires replacing a section of pipe or the entire trap assembly. When in doubt, consult a licensed plumber.
Maintenance tips for long term reliability
Regularly inspect under the sink for signs of moisture and corrosion. Clean the washers and nuts periodically to prevent buildup that could compromise seals. Replace worn washers and gaskets at the first sign of leakage. Keep the area dry and run a quick water test monthly to catch issues early. A little preventive care goes a long way toward a reliable drain to p trap connection.
Tools & Materials
- P-trap kit (including trap, tailpiece, slip-nuts, washers)(Choose size to fit your sink drain: typically 1-1/2 inch for kitchens, 1-1/4 inch for bathrooms)
- Slip-joint adapters and reducers(Match pipe sizes (1-1/2 inch or 1-1/4 inch))
- PVC or ABS pipe sections (if needed)(Only if you need to extend or align the drain run)
- PVC primer and cement(Use slip-joint traps if possible to avoid glue)
- Adjustable wrench(For loosening and tightening nuts)
- Plumber's tape (Teflon tape)(Wrap 2-3 times around threaded connections)
- Bucket(To catch water during disassembly)
- Rags or towels(Keep area clean and dry; wipe spills)
- Safety glasses(Protect eyes from splashes)

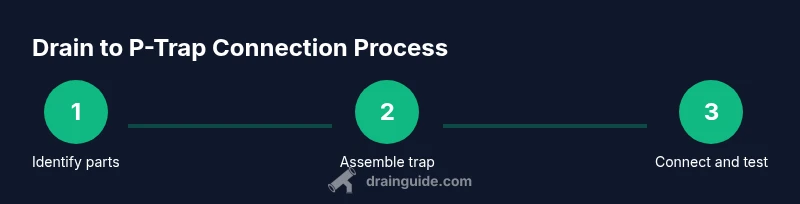

Steps
Estimated time: 60-90 minutes
- 1
Inspect the current drain setup
Take a quick inventory of all parts and sizes to plan your replacement. Note the pipe dimensions and the orientation of the trap arm.
Tip: Document measurements for accurate parts selection - 2
Shut off water and clear the area
Turn off supply lines and place a bucket under the area to catch water. Clear the cabinet so you can work comfortably.
Tip: Have towels ready to absorb spills - 3
Measure pipe sizes
Check the diameter of the tailpiece and waste line to determine trap size. Use the measurement to pick a matching P-trap and adapters.
Tip: Sizes are typically stamped on parts or printed on packaging - 4
Disconnect existing drain parts
Loosen slip-nuts and remove the old trap pieces, letting water drain into the bucket. Keep washers in order so you can reassemble correctly.
Tip: Lay parts in the same order you remove them - 5
Dry-fit the new trap components
Assemble the trap and tailpiece without final tightening to check fit and alignment. Adjust as needed before final assembly.
Tip: Verify that the trap arm slopes toward the wall drain - 6
Assemble slip joints and adapters
Thread slip-nuts and washers onto the tailpiece and trap, then connect adapters for the wall outlet. Lubricate washers slightly if needed.
Tip: Avoid cross-threading by starting nuts by hand - 7
Connect to drain line and trap arm
Attach the trap to the drain outlet using the chosen adapters and ensure the trap arm is properly aligned. Maintain a slight slope for drainage.
Tip: Keep the trap arm level and supported - 8
Tighten joints and verify alignment
Hand-tighten all slip nuts, then snug with a wrench. Check that all joints are aligned and there is no twisting under pressure.
Tip: Do not overtighten plastic washers - 9
Test for leaks and finalize
Run water and inspect every joint for leaks. Wipe dry and retighten as needed. If leaks persist, reseat gaskets or replace washers.
Tip: Run the test for several minutes to reveal slow leaks - 10
Consider venting and permits
Understand that the trap connects to the building drainage system. Check local codes for venting and permit requirements, and hire a pro if unsure.
Tip: Always follow local plumbing codes
Got Questions?
What is the drain to P-trap connection and why is it important?
The drain to P-trap connection is the junction where the sink drain meets the P-trap. It seals to prevent sewer gases from entering the space and must be properly sized and sealed to avoid leaks.
The drain to P-trap connection is the junction between the sink drain and the trap that seals against sewer gases and leaks.
Do I need a vent for the P-trap under a sink?
Vents are part of the building drainage system and are not installed at the trap under the sink. If there is excessive siphoning or slow drainage, check the overall venting in your system and consult a plumber.
Vents are not installed at the trap under the sink; if drainage is slow, check the building venting and consult a plumber.
What size trap should I use for a kitchen sink?
Most kitchen sinks use a 1-1/2 inch P-trap, but always verify by measuring the tailpiece and drain outlet before buying.
For most kitchens, use a 1-1/2 inch P-trap after measuring your tailpiece.
Can I retrofit a P-trap without cutting into pipes?
Yes, many slip-joint traps and adapters allow retrofits without cutting. If the existing piping is non standard, you may need additional adapters.
Yes, you can retrofit with slip-joint traps and adapters without cutting, but check for non standard pipe sizes.
How tight should slip-nuts be when connecting a P-trap?
Tighten until snug, then give a small additional turn. Avoid overtightening, which can crack plastic or squeeze washers out of place.
Tighten until snug, then a little more, but not so tight you crack the fitting.
What should I do if leaks persist after installation?
If leaks persist, reseat the washers, check gaskets, verify trap alignment, and re-test. If needed, replace worn parts.
If leaks persist, reseat washers and test again; replace worn gaskets if needed.
Watch Video
The Essentials
- Plan trap size and alignment before cutting or assembling
- Use matching adapters and correct washers to prevent leaks
- Tighten joints gradually and test for leaks after installation
- Respect ventilation and local codes for venting
- Perform regular maintenance to prevent future leaks
