High Loop Dishwasher Drain: A Homeowner's Guide
Learn how to install a high loop dishwasher drain to prevent backflow. This guide covers materials, safety, step-by-step installation, maintenance, and troubleshooting for a code-compliant, reliable setup.
A high loop dishwasher drain prevents backflow by lifting the hose above the sink’s water level. This simple, proactive arrangement minimizes siphoning and keeps wastewater out of the dishwasher. Gather basic fittings, clamps, and zip ties to install it securely under the sink.
Why the high loop matters in dishwasher drainage
The high loop is a simple but crucial feature in dishwasher drainage. By creating a vertical rise in the drain hose, you disrupt potential siphoning that could pull dirty water back into the appliance during heavy sink drainage. A correctly formed high loop reduces backflow risk and protects both your dishwasher and your kitchen. According to Drain Guide, a properly formed high loop is a reliable, low-cost safeguard for most homes. The loop should be secured to stay above the level of wastewater in the trap, yet kept clear of sharp bends that could trap debris. Homeowners who install the loop with attention to height and routing report fewer minor leaks and easier maintenance over time. This is especially important in homes with garbage disposals, where disposal drainage can create stronger backflow forces. Remember, the goal is a stable, elevated, unobstructed loop that stays put over the life of the appliance.
How backflow can occur in kitchen drains
Backflow happens when wastewater from the sink or disposal flows back toward the dishwasher due to pressure changes in the plumbing. Without a proper high loop, gravity can pull contaminated water into the dishwasher during drain cycles, especially when a disposal or extra sink drains are active. The loop acts as a physical barrier, forcing the wastewater to travel up and then down passively, reducing the chance of siphoning. In homes with shared traps or long drain runs, the loop becomes even more important because pressure waves can travel along the line. While some jurisdictions require an air gap, the high loop remains a common, effective alternative that mitigates backflow risk when installed correctly.
Code basics and best practices
Building codes vary by region, but many plumbing standards recognize the high loop as an acceptable method to prevent backflow, provided it is correctly positioned. Always verify local codes before installation, since some areas mandate an air gap rather than a high loop. When in doubt, pursue a combined approach that meets code requirements while minimizing clutter under the sink. Best practices include routing the hose away from sharp edges, avoiding tight twists, and ensuring the loop is supported at multiple points. Drain Guide emphasizes planning for access if service is needed later, so avoid burying connections behind the cabinet back wall. Documentation and labeling of hose connections also help during future maintenance.
Loop height options: high loop vs air gap
A high loop typically involves routing the dishwasher drain hose upward to form a loop under the sink, then down toward the drain. An air gap, by contrast, sits at the countertop or sink rim and creates a dedicated air gap before joining the drain line. Air gaps can offer superior protection against backflow in some installations but require an additional fitting and may be mandated by local codes. If you’re in a jurisdiction that accepts either method, choose the option that best fits your cabinet space and ease of access. In tight kitchens, a well-formed high loop with sturdy fasteners often delivers effective protection with fewer parts to install.
Planning the installation in a typical under-sink setup
Start by clearing the area under the sink and measuring the available vertical space. You want a loop height that stays above the bottom of the cabinet and clear of moving parts like the garbage disposal, if present. Plan where to secure the hose using clamps or zip ties at multiple points, ensuring it won’t sag or whip during operation. If the disposal is present, remove any knockout plug only if you intend to connect to the disposal; otherwise, route the hose to the dedicated drain tailpiece. Marking measurements with a marker helps you maintain a consistent loop height during installation, reducing the need for adjustments later. Finally, verify there is enough hose length to complete the loop without kinking.
Common mistakes and maintenance tips
Common mistakes include routing the hose too low, which defeats the purpose of the loop, or securing it with weak fasteners that eventually loosen. Avoid sharp bends that create crimp points, and do not bend the hose tightly at the loop peak. Use hose clamps rated for the diameter of your hose and ensure clamps are snug but not overtightened. After installation, run a test cycle with the kitchen faucet open to simulate drain conditions and check for leaks at every connection. Periodically inspect the loop for sagging or damage and re-secure as needed to maintain effectiveness. Keeping the cabinet dry and cleaning any debris within the loop helps preserve a long service life.
Authority sources
For readers seeking external references on safe drainage and plumbing best practices, consult authoritative sources:
- https://www.epa.gov
- https://www.osha.gov
- https://www.cdc.gov
These sources provide general guidance on safety, water handling, and home plumbing best practices that support DIY drain work when performed carefully and in accordance with local codes.
Tools & Materials
- Dishwasher drain hose(Length should reach from the dishwasher to the under-sink area and allow a comfortable loop.)
- Drain clamps (plastic or metal)(Secure the hose to the drain tailpiece or disposal inlet.)
- Zip ties / Cable ties(Use for additional securing along the cabinet wall.)
- Screwdriver or pliers(For tightening hose clamps and securing fasteners.)
- Measuring tape(Assess loop height and hose routing to avoid interference.)
- Bucket and towels(Contain water spills during disconnection and testing.)
- Marker(Mark loop height and clamp positions for consistency.)

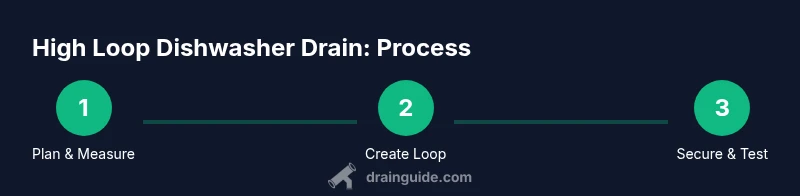

Steps
Estimated time: 45-60 minutes
- 1
Power down electrical supply
Locate the dishwasher circuit breaker or remove the plug from the outlet to ensure no power is reaching the unit during work. This prevents accidental starts and reduces shock risk while you handle hoses and connections.
Tip: If you can’t locate the breaker, switch off power to the kitchen circuit at the main panel and verify with a tester before starting. - 2
Shut off water supply
Turn off the water supply valve located under the sink for the cold line feeding the dishwasher. This stops water flow during hose removal and prevents accidental leaks when you detach fittings.
Tip: Place towels nearby to absorb any residual water in the line after loosening fittings. - 3
Access the under-sink area
Clear space under the sink and inspect the current hose routing. Identify where to best place the high loop without obstructing cabinet panels, and ensure the area can bear repeated hose movement without wear.
Tip: If there’s a disposal, confirm whether you need to connect to the tailpiece or if the disposal inlet is unused. - 4
Detach the dishwasher hose from the drain
Loosen the existing connection at the drain or disposal, taking care to keep path free of kinks. Remove any old clamps or ties that could interfere with the new loop routing.
Tip: Keep a bucket handy to catch any remaining water in the hose during detachment. - 5
Form the high loop and route the hose upward
Route the dishwasher hose upward toward under-sink height, then let it descend toward the drain with a clear, unobstructed loop. The loop should be well above the bottom of the cabinet to resist backflow, but not so high that it strains the hose.
Tip: Aim for a peak height that allows at least several inches of vertical rise; avoid tight bends at the loop apex. - 6
Secure the loop to a stable point
Fasten the hose at multiple points along the cabinet wall and near the drain connection using clamps and zip ties. Ensure the loop won’t sag or shift during operation and that clamps aren’t over-tightened (which could crush the hose).
Tip: Use at least two secure points to prevent wobble and potential leaks. - 7
Reconnect hoses and restore power
Reattach the hose to the drain/disposal inlet with a new clamp, verify the connection is snug, and restore the power and water supply. Double-check that no hoses are twisted and that the loop remains intact after reassembly.
Tip: Don’t reuse old clamps if they show signs of corrosion or wear. - 8
Test the installation for leaks
Run a short dishwasher cycle while observing all joints for any signs of dripping. Check the loop’s integrity and the drain connections post-cycle. Wipe away any water and re-tighten clamps if you notice any seepage.
Tip: If you see a leak, tighten clamps a quarter-turn at a time and re-test before running a full cycle.
Got Questions?
What is a high loop dishwasher drain?
A high loop is a raised section of the dishwasher drain hose that helps prevent backflow into the dishwasher during drainage. It uses gravity and distance to minimize siphoning.
A high loop is a raised section of the dishwasher drain hose that helps keep dirty water from flowing back into the dishwasher.
Is an air gap the same as a high loop?
No. An air gap sits at the sink or countertop and provides a physical separation before joining the drain line. A high loop relies on elevation under the sink. Some codes require an air gap, so verify local requirements.
An air gap and a high loop are different; some places require an air gap, others allow a high loop.
Do I need to remove the disposal knockout?
If you’re connecting to the disposal inlet, remove the knockout plug; if you're using a dedicated drain tailpiece, you can proceed without removing it. Follow the disposal manufacturer’s guidelines.
If you’re connecting to a disposal, remove the knockout plug; otherwise, follow the disposal instructions.
How high should the loop be?
Aim for a vertical rise of several inches; common guidance suggests at least 6 inches, with more height offering better protection when space allows.
Aim for a vertical rise of several inches, typically around 6 inches or more if space permits.
What if space is limited under the sink?
Interpret the loop carefully to maintain elevation without cramping other plumbing. If necessary, consider a compliant air gap or a different cabinet arrangement to maintain proper drainage.
If space is tight, consider using a code-compliant alternative like an air gap and plan routing accordingly.
How do I test for leaks safely?
Run a short cycle with water running in the sink while you watch every joint. Tighten any loose clamps and wipe away any moisture during the test.
Run a quick dishwasher cycle with the sink water on and look for leaks at every joint.
Watch Video
The Essentials
- Plan the loop height before installation.
- Secure the hose at multiple points to prevent sagging.
- Check local codes for air gap requirements.
- Test for leaks with a short dishwasher cycle.
