Stormwater Drain Installation: A Practical DIY Guide
Learn how to plan, lay out, and install a stormwater drainage system to manage runoff, protect foundations, and prevent flooding with a practical DIY approach.
You can install a storm water drain system to capture runoff, guard against flooding, and protect your foundation. This guide outlines the essential steps, tools, and safety considerations for a typical residential yard drainage installation, including planning, trenching, laying pipe, and connecting to the existing storm drain, plus common mistakes to avoid.
Site assessment and planning
A storm water drain installation begins with a clear site assessment to determine runoff patterns, discharge points, and potential obstructions. According to Drain Guide, planning now reduces future problems and costly rework. Evaluate the grading of your yard, locate existing utilities, and identify natural drainage paths. The planning phase should align with local codes and property boundaries. When planning, consider future expansions such as additional downspouts or catch basins to avoid rework. Document slope toward the discharge point and ensure accessibility for maintenance. In many residential projects, a well designed plan prevents standing water around foundations and minimizes erosion along walkways. By starting with a precise map, you can select the right inlet locations, pipe sizes, and trench routes that meet both performance goals and local regulations.
Key design considerations for storm water drain installation
Consider where water collects most heavily in your yard and plan routes that avoid foundations and utility lines. Decide between surface channels, perforated pipe drains, or catch basins based on soil type, rainfall patterns, and space. The layout should create a continuous path to a safe discharge, whether that connects to a municipal storm sewer or a dry well. Include cleanouts for future maintenance and plan for winter conditions where freezing might affect flow. A thoughtful design minimizes erosion, standing water, and maintenance needs over time, while staying compliant with local permits and codes.
Materials and layout options
Common layouts include trenching a perforated pipe with gravel bed and a geotextile wrap, installing catch basins with solid pipe connections, or using surface channels along property lines. Materials to consider include perforated and solid stormwater pipes, elbows and tees, gravel, geotextile fabric, and inlet components. Choose components that are compatible with your inlet and outlet choices and that meet local standards. When selecting a layout, balance cost, space, and future access for cleaning and inspection.
Sizing and grading fundamentals
Sizing depends on the expected runoff and the pipe network you design. Maintain a consistent slope toward the discharge point and use properly sized fittings to minimize leaks and blockages. Avoid sharp bends that trap sediment and plan for cleanouts at strategic intervals. Accurate grading reduces still water and ensures that water moves promptly toward the outlet without pooling along the trench.
Trench safety and soil management
Open trenches pose fall and collapse risks. Plan for safe excavation, shoring if needed, and an easier exit path. Keep excavated soil away from the trench edge to prevent collapse and consider storing spoil on the uphill side. Stabilize slopes with timber supports where required and stay aware of buried utilities before and during digging.
Starter components and inlet options
Install starter components such as catch basins, risers, and cleanouts at the planned entry points. Use inlet adapters that fit your pipe size and check local codes for sealing requirements. Install a section of solid pipe from the inlet to the main line, then attach a perforated section for the trench run if the soil allows filtration. Cleanouts simplify future service and inspection.
Laying pipe, bedding, and backfill
Dig the trench to the required width and depth, then lay a bedding layer of sand or graded gravel. Place the pipe and ensure a consistent slope toward the discharge with minimal friction. Backfill in lifts, compacting gently to avoid settling, and cover first with geotextile fabric to prevent silt intrusion before completing with soil. Keep joints clean and dry during assembly and use appropriate solvent cement where required.
Connecting to discharge outlets and final checks
Connect the system to the chosen discharge point, whether a municipal storm sewer, dry well, or soakaway. Ensure all joints are sealed and test for leaks by slowly filling sections with water and observing for seepage. If you live in a flood prone area, consider a check valve, overflow route, or backflow prevention where codes require it. Finally, leave access points clear for future maintenance.
AUTHORITY SOURCES
For further reading and compliance, consult authoritative sources such as the EPA stormwater program, USGS water information, and ASCE publications. These sources provide broader context on drainage design, flood prevention, and environmental considerations. Always verify local regulations before starting a storm water drain installation.
Tools & Materials
- Shovel or trenching spade(Use a long-handled spade for narrow trenches; ensure blade is sturdy.)
- Tape measure(Minimum 25 ft; 40 ft preferred for long runs.)
- String line and stakes(For straight trench alignment and slope reference.)
- Level(8 ft level helps verify grade along the run.)
- Safety gear(Gloves, safety glasses, and sturdy boots.)
- PVC/HDPE stormwater pipe (solid and perforated)(Choose diameter based on expected flow.)
- Pipe fittings (elbows, tees, adapters)(Keep a few sizes on hand.)
- Catch basin or inlet(Select calibrated inlets for your pipe size.)
- Gravel and geotextile fabric(Gravel for bedding; fabric to prevent silt intrusion.)
- Sand or bedding material(Used under pipe to stabilize and support.)
- Concrete or backfill material(Optional for stabilizing inlet or trench ends.)
- Solvent cement and primer for PVC(Follow manufacturer guidelines for curing times.)
- Trench box or shoring (optional)(Enhances safety on deeper trenches.)
- Marker spray or chalk(Mark route and utility locations before digging.)

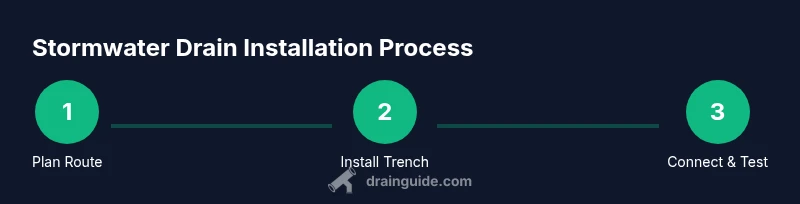

Steps
Estimated time: 1-2 days (plus potential curing time for cemented joints)
- 1
Define objectives and scope
Identify discharge point, estimated run length, and the route that minimizes disruption to existing landscaping. Create a simple sketch showing inlet locations and outlet connections to guide the rest of the project.
Tip: Document measurements with photos to avoid misinterpretation during construction. - 2
Check permits and codes
Review local regulations and confirm whether a permit is required. Some jurisdictions mandate trench depth, backfill specifications, and outlet methods.
Tip: Contact the local building or planning department early to avoid project delays. - 3
Plan route and elevations
Mark the proposed trench line with string and stakes. Plan a continuous path toward the discharge point with a consistent slope to promote drainage.
Tip: Avoid crossing under foundations or utilities; use utility locator services if needed. - 4
Dig the trench
Excavate along the marked line to the required depth and width. Keep the trench sides stable and clear of loose soil to prevent collapse.
Tip: If the trench is deep, consider shoring or trench boxes for safety. - 5
Bedding and pipe placement
Add a layer of sand or fine gravel for bedding, then lay the pipe from the inlet toward the outlet. Ensure joints are clean and dry before assembly.
Tip: Dry-fit sections first to confirm alignment before applying cement or solvent glue. - 6
Install inlets and cleanouts
Place catch basins or inlets at planned access points and install cleanouts for future service. Connect to the main run with appropriate fittings.
Tip: Seal joints properly to prevent leaks and inspect for tight connections after testing. - 7
Backfill in stages
Backfill the trench in several lifts, compacting gently after each layer. Place geotextile fabric to prevent silt intrusion and protect the pipe.
Tip: Avoid over-compacting which can crush pipes or deform the trench. - 8
Connect to discharge and seal
Tie the system into the discharge point and seal all joints. Use a water test to check for leaks and verify that water flows smoothly to the outlet.
Tip: If freezing is a concern, consider insulation or check valves where required. - 9
Test, document, and maintain
Perform a controlled discharge test, document results, and note maintenance points. Schedule regular inspections to clean basins, clear clogs, and replace damaged components.
Tip: Create a maintenance calendar to prevent sediment buildup.
Got Questions?
Do I need a permit for stormwater drain installation?
Permitting requirements vary by location. Check with your local building department; some projects require a permit for trenching and discharge connections, while others do not. Even when not required, following codes helps prevent issues during inspections.
Permit rules vary by area. Check with your local building department to confirm requirements and ensure your project stays compliant.
What is the best inlet type for a residential yard?
Choose an inlet that matches your pipe size and desired maintenance access. Catch basins are common for yard drains, while surface inlets suit wide, flat areas. Ensure the inlet design minimizes splash and sediment entry.
Pick an inlet that fits your pipe and makes maintenance easy, usually a catch basin or a well-placed surface inlet.
How do I determine the correct pipe slope?
Aim for a steady grade toward the discharge point to promote flow. Avoid flat sections that encourage standing water. Local codes may specify a minimum slope; adjust your design accordingly.
Keep a consistent slope toward the discharge so water moves without pooling.
Can I install a stormwater drain myself, or should I hire a pro?
A confident DIYer can handle planning, trenching, and laying pipe for simple layouts. Deeper trenches, deep connections to public networks, or complex soil conditions may require a licensed professional.
For simple runs you can DIY, but deeper or more complex projects may need a pro.
How is the system tested after installation?
Perform a controlled water test by filling sections to observe joints and flow. Check for leaks, backflow, and ensure water reaches the outlet cleanly. Document results and address any weak joints.
Fill sections with water and inspect joints for leaks; test flow to the outlet.
What maintenance is required after installation?
Regularly inspect catch basins and cleanouts, remove sediment, and check for clogs in the trench. Re-seal joints if you notice leaks and verify that the discharge path remains clear after heavy rains.
Inspect and clean the system periodically and keep the discharge path clear.
Watch Video
The Essentials
- Plan before digging to prevent costly mistakes.
- Choose inlet and pipe routing that fits your yard and codes.
- Maintain a consistent slope toward the discharge point.
- Use cleanouts and proper bedding to reduce clogs.
- Test the system thoroughly and document outcomes.
