Bosch Dishwasher Drain Pump: A Complete How-To Guide
A homeowner-friendly guide to diagnosing and replacing a bosch dishwasher drain pump with safety tips, tools, and maintenance insights from Drain Guide.
This guide helps you diagnose and replace a faulty bosch dishwasher drain pump to restore proper drainage. You’ll need a compatible replacement pump, basic hand tools, and Safe handling. Start by unplugging the unit, shutting off water, and draining residual water. With the right steps, you can complete the repair in under an hour.
Why the Bosch dishwasher drain pump matters
A faulty drain pump stops water removal, leaving you with standing water and possible overflow. The drain pump is a small but essential component that powers the drainage cycle, pushing used water from the tub to the filter and out through the drain hose. The Drain Guide team emphasizes that recognizing the signs of pump failure early can prevent bigger messes and avoid costly water damage. The bosch dishwasher drain pump is central to reliable drainage, and identifying a failing pump helps you decide whether to repair or replace. Be aware that Bosch designs vary by model, so confirm compatibility before purchase to avoid returning a wrong unit and delaying the repair. Proper selection and installation reduce frustration and ensure a long-lasting repair.
How the drain pump fits into the dishwasher drainage system
Inside a typical Bosch dishwasher, water is pumped from the sump through a pump housing, passes through a check valve, and exits via the drain hose. The drain pump’s impeller pulls water from the tub and pushes it toward the filter and out of the machine. The pump is activated by the control board through a relay, so if the board or its wiring is at fault, you may see drainage symptoms even with a good pump. Understanding the flow helps you distinguish a pump issue from a clogged filter, kinked hose, or faulty check valve. When diagnosing the bosch dishwasher drain pump, check for blockages and ensure the impeller spins freely.
Symptoms of a failing drain pump and quick diagnostics
Common symptoms include slow draining, gurgling noises during the drain cycle, water remaining in the bottom after a cycle, and error codes related to drainage. If the pump runs but water doesn’t move, inspect the impeller for debris or damage. A leak around the pump housing often indicates a worn seal or cracked housing. For homeowners, a quick diagnostic is to unplug, remove the access panel, and manually rotate the impeller to see if it spins freely. If you hear grinding or feel resistance, the impeller or motor may be worn. Drain Guide analysis shows that testing with the unit powered off and a visual inspection is a reliable first step before replacement.
Safety first: planning your replacement
Safety is the priority when replacing a bosch dishwasher drain pump. Always unplug the dishwasher from power and shut off the water supply before touching any components. Use a shallow pan or towels to catch residual water and avoid contact with electrical components. Work in a dry area and consider wearing gloves to protect your hands from sharp edges inside the cabinet. While the procedure is doable for many homeowners, if you notice corroded wiring, significant rust, or stubborn hoses, consult a professional. Properly planning the replacement saves time and reduces the risk of a partial reinstall.
Selecting the right pump and compatible models
Before buying a bosch dishwasher drain pump, verify model compatibility. Bosch models vary, and the correct pump must match the mounting points, electrical connector, and impeller size. Check the model number on the data plate inside the door or on the tub rim, then confirm the pump is designed for that model’s voltage and flow rate. If you’re unsure, choose a pump labeled as compatible with Bosch dishwashers and avoid generic, non-OEM units that could fail prematurely. Inspect the new pump’s seals and compare the inlet and outlet orientations with your old unit to prevent misalignment during installation.

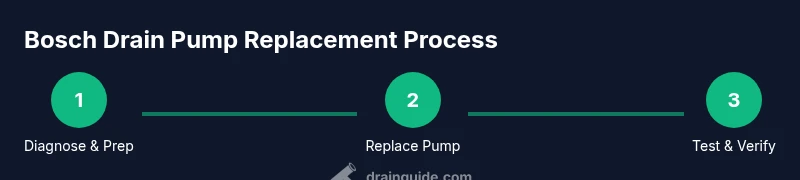

Step-by-step replacement overview (high-level)
This section outlines the major phases of the pump replacement so you know what to expect. Start by safely preparing the workspace, then remove the lower access panel, disconnect the electrical and plumbing connections, and detach the old pump. Install the new bosch dishwasher drain pump, reconnect all hoses and wiring, and reassemble the panel. Finally, run a test cycle to confirm drainage and check for leaks. For detailed, step-by-step instructions, refer to the dedicated STEP-BY-STEP block below.
Post-install tests and leak checks
After installation, run a short cycle with no dishes to observe the pump in action. Listen for smooth operation and ensure there are no unusual noises or leaks around the pump housing or hose connections. Check the drain hose for kinks and verify the discharge pathway to the household drain. If you notice any leaks, power down the unit and re-check hose clamps and O-rings. A successful test confirms that the bosch dishwasher drain pump replacement is functioning correctly and drainage is performing as expected.
Maintenance tips to prevent future drain issues
Proactive maintenance helps extend the life of your bosch dishwasher drain pump. Clean the filters and sump area regularly to prevent debris from reaching the impeller. Run hot water through the dishwasher occasionally to dissolve grease and food particles. Avoid pouring cooking fats or oils down the drain and use a mesh filter or garbage disposal splash guard to reduce debris. If you notice repeated clogs, consider periodic professional service or a preventive cleaning cycle on a schedule aligned with your model.
Common installation errors and how to avoid them
Avoid common pitfalls such as misaligned hoses, not seating the O-ring properly, or forgetting to reconnect the electrical connector fully. Double-check hose clamps after tightening and verify the pump is firmly mounted to its bracket to prevent vibration. Ensure the new pump’s electrical harness matches the original plug. Read the Bosch installation notes for your model and take photos during disassembly to guide reassembly. Staying methodical reduces leaks and speeds up the process.
Tools & Materials
- Screwdrivers (Phillips and flathead)(Have both on hand for various fasteners)
- Torx driver or nut driver set(Some Bosch models use Torx screws)
- Pliers (needle-nose)(Useful for hose clamps and clips)
- Multimeter(Check for proper voltage at the harness if needed)
- Replacement bosch dishwasher drain pump assembly(Ensure compatibility with your model)
- Gasket/O-ring set(Replace worn seals to prevent leaks)
- Bucket or shallow pan(Catch residual water during pump removal)
- Absorbent towels or rags(Keep workspace dry and safe)
- Silicone grease or food-grade lubricant(Lubricate seals if recommended by Bosch)
- Small flashlight or headlamp(Improve visibility inside cabinet)
Steps
Estimated time: 60-90 minutes
- 1
Disconnect power and water
Unplug the dishwasher from the wall outlet and shut off the household water supply. Use a bucket or towels to catch water that remains in the lines. This initial safety step protects you from shocks and leaks as you begin the pump replacement.
Tip: Label any wires if needed and verify the unit is truly de-energized before touching components. - 2
Access the drain pump
Remove the bottom front panel or toe-kick to expose the pump housing. For some models, you may need to tilt the machine carefully to access the sump area. Lay the appliance on its side or front, depending on your model's access points.
Tip: Have a second person assist to prevent the unit from tipping and to protect the tub from damage. - 3
Disconnect hoses and wiring
Carefully detach the drain hose and any auxiliary hoses from the pump. Disconnect the electrical connector and note the orientation of plugs for accurate reassembly. Keep the water drain path clear to avoid spills during removal.
Tip: Take photos before disconnecting to reference exact routing and connector positions. - 4
Remove the old pump
Unscrew the pump mounting screws and lift the pump out of its bracket. Inspect the area for debris, damaged gaskets, or signs of corrosion. If the pump is clogged with grease or debris, clean the housing and check the impeller for wear.
Tip: Be gentle with plastic fittings to avoid cracking the housing. - 5
Prepare and install the new pump
Compare the new bosch dishwasher drain pump with the old unit to confirm match. Install the new pump, ensuring the seals are seated properly and the impeller can rotate freely. Reconnect hoses in the exact orientation and tighten clamps to prevent leaks.
Tip: Apply a thin layer of silicone grease on O-rings if the manufacturer recommends it. - 6
Reconnect wiring and hoses
Attach the electrical connector and re-secure all hoses. Make sure clamps are snug but not overly tight, to avoid damage to hoses. Reinstall any brackets or mounting screws that hold the pump in place.
Tip: Double-check that no wires or hoses are kinked or pinched during reassembly. - 7
Test the installation
Restore power and water, and run a short test cycle with no dishes. Observe the pump operation and listen for abnormal noises. Look for leaks around the pump housing and hose connections.
Tip: If leaks appear, power down and re-tighten clamps and seals before retesting. - 8
Final checks and cleanup
Reinstall the lower panel, wipe down the area, and resume normal use. Keep an eye on drainage performance over the next few cycles and note any recurring issues.
Tip: Document the process with notes, so future maintenance is faster.
Got Questions?
What are the common signs of a faulty bosch dishwasher drain pump?
Common signs include slow draining, gurgling noises during the drain cycle, or water remaining in the tub after a cycle. If you see error codes related to drainage, inspect the pump and related components like hoses and filters. A visual check of the impeller and seals can confirm wear or debris.
Look for slow drainage, unusual noises, or water left in the tub after a cycle. Check error codes and inspect the pump and hoses for wear or blockages.
Can I run the dishwasher without a drain pump?
No. The drain pump is essential for removing used water. Running without it will leave water in the tub and could cause overflow or damage. If the pump is suspected faulty, replace it or have a professional evaluate the system.
No, you can't run it without a drain pump. It won't drain and may leak or overflow.
Is it safe to replace the drain pump myself?
Yes, with proper safety steps and the right replacement pump. Make sure to unplug power, shut off water, and follow the model-specific instructions. If you’re unsure about electrical connections or seals, consider hiring a technician.
Yes, it can be safe if you take the right safety steps and follow your model’s guide.
Will replacing the drain pump fix slow draining and leaks at the same time?
Replacing a faulty drain pump often resolves slow drainage and leaks caused by worn seals or misalignment. However, check related parts like hoses, clamps, and gaskets, as leaks can arise from those areas too.
Replacing the pump can fix drainage and leaks if seals and hoses are intact and properly installed.
How long should a bosch dishwasher drain pump last?
Lifespan varies by usage and model. Regular maintenance and avoiding harsh chemical cleaners can help extend pump life, but expect replacement to be needed somewhere along the appliance’s lifecycle depending on usage.
It depends on usage, but routine maintenance can extend pump life.
Watch Video
The Essentials
- Identify symptoms early to avoid overflow and water damage.
- Always disconnect power and water before starting any repair.
- Verify model compatibility before buying a replacement pump.
- Test thoroughly after installation to confirm proper drainage and seal integrity.
