HVAC Condensate Drain Line Design: A Homeowner's Guide

Why HVAC condensate drain line design matters

Condensation from air handlers and evaporator coils must be removed safely and efficiently. A well-designed condensate drain line avoids leaks, mold, and property damage, and supports energy efficiency. According to Drain Guide, homeowners benefit when they plan drainage early in the installation and incorporate future maintenance into the design. In 2026, many service calls related to condensate issues stem from poorly planned runs, underscoring the need for thoughtful design and durable materials. This article walks you through the core considerations of hvac condensate drain line design, including sizing, slope, traps, venting, and test procedures. You’ll learn to verify compatibility with your equipment, follow local codes, and create a plan you can maintain with minimal effort over years.

Code basics and standards you should know

HVAC condensate drain line design sits at the intersection of plumbing and mechanical codes. Most jurisdictions reference national or regional codes, such as mechanical and plumbing standards, and may require specific layouts, materials, and testing. While exact requirements vary by location, the core principles remain consistent: proper sizing, durable materials, a reliable drainage path, and verification of the installation. Drain Guide emphasizes checking manufacturers’ specs and local code provisions early in the planning stage. This ensures your design aligns with expectations for service, warranty eligibility, and long-term reliability.

Sizing and capacity: determining pipe diameter for condensate

Pipe sizing for condensate lines should reflect the expected volume from the connected cooling equipment and the pan outlet. The goal is to prevent bottlenecks that cause backflow, slow drainage, or overflow. When selecting pipe diameter, start with the equipment manufacturer’s outlet size and match fittings accordingly. If multiple outlets converge, size the run to accommodate the combined flow. Drain Guide stresses avoiding undersized lines because even small reductions in capacity can lead to frequent clogs and leaks over time.

Slope, traps, and venting: ensuring proper drainage

A gravity-fed condensate line relies on a continuous, clean slope to maintain flow without allowing standing water. Plan the slope conservatively and avoid sharp turns that slow drainage. In some installations, a trap may be required by code to prevent sewer gases from entering the building, though many modern residential configurations do not use traps on finished condensate lines. Venting may be necessary for long or complex runs to prevent air locks and siphoning. Always verify local code requirements and manufacturer recommendations for trap and venting needs.

Materials, corrosion resistance, and long-term reliability

Choose materials that resist the typical condensate environment—coolant-saturated air, occasional mineral deposits, and potential chemical exposure from cleaners. PVC is a common, affordable option for indoor runs, while CPVC or other plastics may be suitable in certain climates. Select joints and fittings that are rated for condensate use and compatible with the chosen pipe. Durable hangers or clamps help prevent sagging over time. Drain Guide notes that selecting corrosion-resistant components reduces maintenance frequency and enhances system longevity.

Common design mistakes and how to avoid them

• Undersizing the line can cause backups; always align with the equipment’s outlet capacity and code guidance.
• Skipping slope calculations leads to standing water and mineral buildup.
• Using improper or incompatible materials can accelerate corrosion or leaks.
• Neglecting supports results in sagging and misalignment.
• Failing to label lines creates confusion during maintenance.

To avoid these pitfalls, document the design with measurements, use manufacturer references, and double-check connections before testing. Drain Guide’s approach is to integrate design choices with routine maintenance so issues are caught early rather than after a failure.

Designing for accessibility and maintenance

Arrange the drain line layout to minimize bends and make future access straightforward. Place cleanouts at logical points and keep sections of the line reachable for inspection and flushing. Color-coding or labeling pipes helps future technicians identify the condensate drain path quickly. The user-friendly design reduces troubleshooting time and improves overall reliability. Drain Guide underscores the value of designing with maintenance in mind, not as an afterthought.

Maintenance plan and preventive checks

Create a simple maintenance plan that includes periodic visual inspections, cleaning of any mineral buildup, and flushing the line if accessible. Document the date of installations, component types, and any service actions. Regular inspection catches clogs or corrosion early and can prevent moisture damage. Drain Guide recommends scheduling at least one annual review, with additional mid-season checks during heavy cooling periods. A proactive approach reduces emergency calls and extends system life.

Troubleshooting: what to do when drainage stalls

If drainage slows or stops, check the line for blockages, kinks, or sags that impede flow. Clear any visible debris with appropriate tools, ensuring the system is powered down and safe. If the problem persists, inspect the trap (if present), venting, and joints for leaks or misalignment. Document findings and plan a targeted repair or professional service if needed. Quick action can prevent water damage and mold growth.

Quick reference checklist for design and installation

• Confirm the condensate line outlet matches equipment specs.
• Plan an adequate slope and avoid sharp bends.
• Select corrosion-resistant materials suited to condensate exposure.
• Include access points and cleanouts for maintenance.
• Verify venting and trapping requirements per local codes.
• Label lines clearly and document installation details.
• Schedule annual maintenance reviews and flushes as needed.

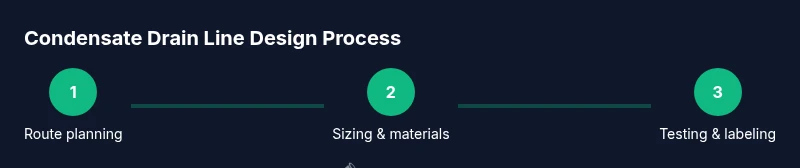

Implementation plan: from design to install

1. Gather equipment specs and local code requirements. 2) Draft a route that minimizes length and bends while meeting slope standards. 3) Choose materials and fittings rated for condensate use. 4) Install with proper supports and cleanouts. 5) Test the system under operating conditions and verify there are no leaks. 6) Create maintenance documentation and schedule future checks.

What to ask a contractor

Prepare a list of questions to ensure your design will be robust: What materials will you use and why? How will you verify slope and venting? Do you have experience with your climate’s condensate challenges? Can you provide maintenance planning tips? A clear conversation helps ensure a durable condensate drain line design.
