Replacing a GE washer drain pump is a doable DIY task for many homeowners when you have the right tools and safety precautions. This guide outlines the exact steps, required parts, and common troubleshooting tips to restore proper draining. Follow the steps closely to minimize downtime and avoid unnecessary service calls.

Why GE Washer Drain Pump Replacement matters

A GE washer relies on a drain pump to remove water between cycles. When the pump fails, you may see water remaining in the drum, a loud humming noise, or the machine failing to advance to the drain phase. Replacing the drain pump restores normal draining performance and helps prevent mold growth from standing water. This section covers why a pump replacement is sometimes the most cost-effective fix compared with replacing the entire washer.

Signs the drain pump may need replacement

Common symptoms include water not draining after a cycle, a buzzing or humming noise when the pump is activated, clogs in the pump housing, and visible signs of leakage around the pump area. If your washer takes unusually long to drain or leaves a puddle beneath, the drain pump or its inlet/outlet hoses could be blocked or worn. Remember that other components, like clogged filters or hose kinks, can masquerade as pump problems, so perform a quick check of related parts.

Safety first: power, water, and PPE

Before starting any repair, unplug the washer from the wall outlet and turn off the hot and cold water supply to prevent leaks. Work on a dry, stable surface and use a pair of gloves to protect your hands from sharp edges. Keep a bucket and towels handy to catch any residual water in hoses or the sump basin. Never attempt repairs with electricity and water in contact.

Tools and parts you’ll need

Replacement GE washer drain pump assembly (compatible with your model)
Phillips and flat-head screwdrivers
Nut driver set (various sizes)
Pliers and outrigger clamps
A small bucket and towels
Needle-nose pliers and a multimeter (optional for testing continuity)
Replacement hose clamps or worm-drive clamps
Flashlight or headlamp for better visibility
Work gloves and safety glasses

Having the right tools on hand reduces downtime and helps ensure a clean, leak-free connection between the pump and hoses.

How the drain pump works (brief overview)

The drain pump sits low in the washer cabinet, drawing water from the drum through hoses and expelling it into the household drain. When the impeller or motor wears out, the pump cannot create enough suction to move water, or it runs continuously without displacing water. Understanding the layout helps you locate the pump quickly and avoid damage to tubing or wiring during removal.

Preparing the workspace and disconnecting power

Move the washer away from the wall to access the rear or side panel. Unplug the unit and disconnect the power cord from the outlet. If you can access the back panel easily, remove it with a screwdriver to reveal the pump housing. Take a photo of the wiring harness and hose routes before disconnecting anything so you can reassemble accurately.

Removing the old pump: step-by-step (high level for context)

Carefully detach the electrical connector from the pump, then release or loosen the hose clamps and disconnect the hoses. Remove the mounting screws or brackets holding the pump in place, and gently lift the unit out. Have a towel ready to catch any remaining water and prevent spills. Inspect the surrounding hoses for wear or cracks while you’re at it.

Installing the new pump and reassembly

Position the replacement pump in the same orientation as the removed unit. Reconnect the hoses and secure them with clamps, ensuring there are no kinks. Reattach the electrical connector, mount the pump with screws or brackets, and reassemble the cabinet panels. Double-check hose routing to prevent wear during operation.

Testing: verify a successful replacement

Plug the washer back in and run a short test cycle with a small load of water only to ensure proper draining. Look for leaks around hose connections and the pump housing. If water remains or the pump hums without pumping, recheck hose connections and verify the pump is properly seated. If issues persist, consult the troubleshooting section or consider a pro inspection.

Tools & Materials

Replacement GE washer drain pump assembly(Ensure compatibility with your GE model (front-load or top-load). If uncertain, verify model number in the user manual.)
Phillips screwdriver(Medium-sized #2 suitable for most screws on the panel.)
Flat-head screwdriver(Useful for prying or maneuvering hoses gently.)
Nut driver set(Various sizes to secure pump mounting brackets.)
Pliers(For hose clamps and fittings.)
Needle-nose pliers(Excellent for small hose connections.)
Bucket and towels(Contain and absorb water during disassembly.)
Multimeter (optional)(Test pump motor continuity if you suspect electrical failure.)
Replacement hose clamps or worm-drive clamps(Secure hose connections and prevent leaks.)
Work light or headlamp(Improve visibility in tight cabinets.)

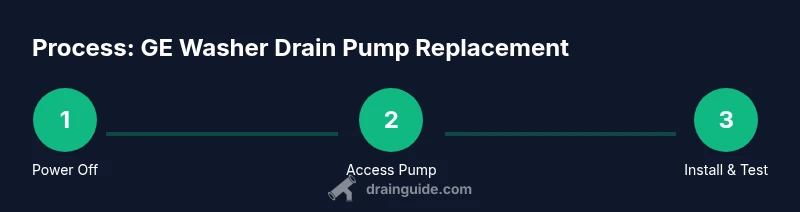

Steps

Estimated time: 45-90 minutes

1
Power down and access the pump
Unplug the washer and move it to grant access to the pump housing. This initial action prevents electrical shock and sets a safe baseline.
Tip: Keep the power cord unplugged during removal and keep a photo of the wiring for reference.
2
Open the access panel
Remove the rear or bottom panel as per your model to reveal the pump bracket and hoses. Avoid forcing panels if screws resist; use a proper screwdriver to prevent stripping.
Tip: Label or photograph hose routes before disconnecting to simplify reassembly.
3
Disconnect the electrical harness
Gently detach the electrical plug from the pump’s terminals, noting orientation. A small flat-head screwdriver can help release any locking tabs.
Tip: If wiring is stiff, use needle-nose pliers to avoid stressing the connector.
4
Remove the hoses
Loosen hose clamps and detach the hoses from the pump. Have the bucket ready to catch residual water and wipe the drips to keep the area clean.
Tip: Inspect hoses for cracks or wear while you’re here; replace if necessary.
5
Unfasten the pump mounting
Unscrew the pump from its bracket or mounting plate. Support the pump as screws loosen to prevent it from dropping and causing damage.
Tip: Keep track of screw sizes; many GE machines use standard phillips screws.
6
Install the new pump
Position the replacement pump in the same orientation, tighten the mounting screws, and reattach hoses with clamps snug but not overtight.
Tip: Avoid twisting hoses; align them to prevent future leaks.
7
Reconnect the harness and reassemble
Reconnect the electrical plug, reassemble the cabinet panels, and ensure all fasteners are tight and hoses routed away from moving parts.
Tip: Take a final peek to confirm no tools remain inside the cabinet.
8
Test for leaks and proper drainage
Plug in the washer and run a short cycle to verify drainage and confirm there are no leaks around connections.
Tip: If you see leaks, power down and reseat the hose clamps and seals.

Pro Tip: Keep a labeled container to organize screws and small parts.

Warning: Do not work on wet surfaces; moisture increases the risk of shock.

Note: If the pump model is hard to source, check reputable appliance parts suppliers for compatible GE units.

Got Questions?

Can I replace the GE washer drain pump myself, or should I hire a pro?

If you’re comfortable with basic appliance repair and have the right tools, a drain pump replacement is usually doable. Follow the manufacturer’s guidelines and safety precautions to reduce the risk of electric shock or water leaks. If you encounter unusual wiring or persistent leaks, consider professional service.

How do I know the pump is bad and not a hose issue?

Check for continuity with a multimeter and listen for an actual motor hum when the pump is energized. Also inspect hoses for kinks or cracks. If water drains slowly despite clean hoses, the pump is a strong suspect.

Can I reuse the old hoses with the new pump?

Reusing hoses is possible if they are intact and undamaged. It’s generally recommended to replace worn or stiff hoses to prevent leaks. Ensure clamps are secure after reattachment.

What should I do if water leaks after replacement?

Power down immediately and inspect hose connections and clamps for tightness and proper seating. Check the gasket or seals around the pump for damage. If leaks persist, reseat connections or consult a professional.

Does GE warranty cover drain pump replacements?

Warranty coverage varies by model and purchase date. Review the warranty terms for your GE washer model. If under warranty, a professional service visit may be preferred to maintain coverage.
