Quick AnswerSteps

To locate and inspect the drain pump on a Samsung washer, you’ll identify the pump’s housing behind the lower front panel (front-load) or under the bottom access panel (some top-load models). This guide shows safe steps, necessary tools, and what to expect during diagnosis and possible replacement. According to Drain Guide, many pump issues originate from clogs or worn impellers.

What the drain pump does in a Samsung washer

The drain pump is a small, usually plastic impeller-driven device that moves used washing water out of the tub and into the drain hose during the rinse and spin cycles. In Samsung washers, a failing pump can cause draining delays, water that won’t empty, or a humming sound with no water movement. Understanding the pump’s role helps you diagnose issues without unnecessary replacements. Drain Guide emphasizes that many pump problems stem from simple clogs, debris, or a worn impeller that reduces suction and flow. Regular inspection can prevent unexpected drains and extend the life of your machine.

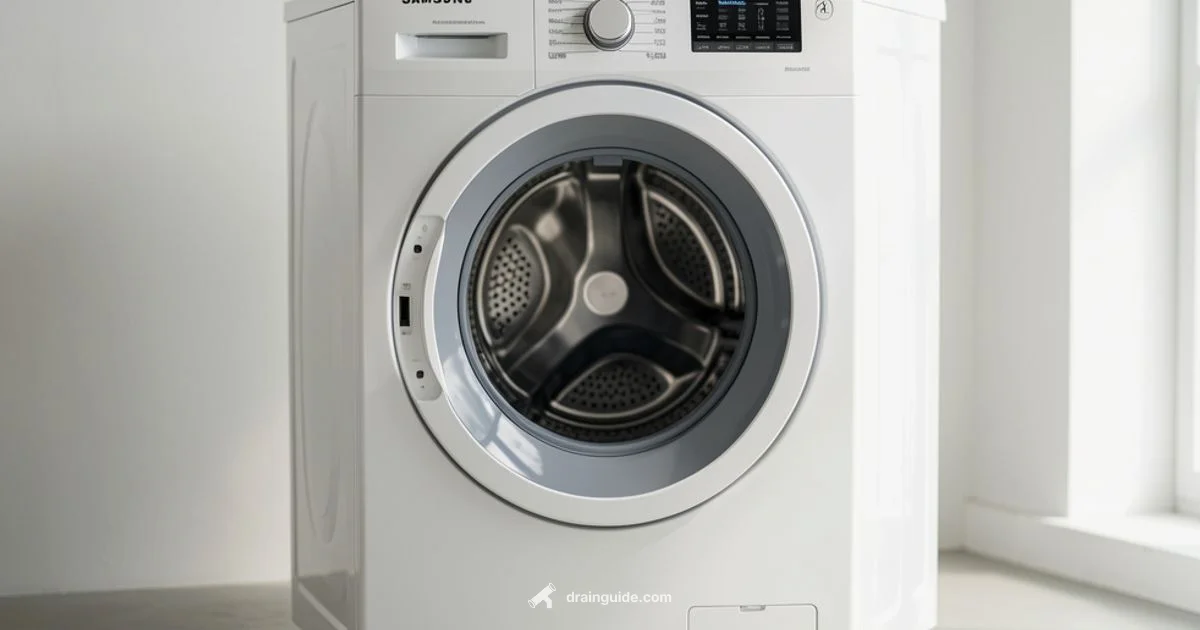

Where is the drain pump located on Samsung washers

Locating the drain pump depends on the model family. In most front-load Samsung washers, the pump sits behind the lower front access panel. You may need to remove a few screws and slide out the panel to reach the pump housing and the attached hoses. Some top-load models place the pump near the bottom front area, accessible by removing the rear or bottom panel. Always unplug the unit before starting and have towels ready for any residual water. The exact location can vary by model, so check your user manual or service diagram if you’re unsure.

How to verify the pump is the source of the problem

Begin with a visual check: is the drain filter or pump intake clogged with lint, coins, or fabric fibers? Listen for the pump when the washer runs a drain cycle; a humming sound without water movement often indicates a jam or a seized impeller. Disconnect hoses (watch for water), inspect the impeller inlet for obstruction, and gently rotate the impeller if it’s free to move. If the impeller is stuck or visibly worn, the pump may need replacement. Use a multimeter to test continuity if you’re comfortable with basic electronics.

Common issues and quick fixes you can try

Clogs at the pump inlet or hose: disconnect hoses and clean out debris with a thin brush or compressed air.
Debris in the filter: remove and rinse the filter screen; a clogged screen reduces flow and pump efficiency.
Worn or seized impeller: if the impeller won’t rotate or makes grinding sounds, replacement is likely needed.
Damaged wiring or loose connectors: inspect the pump wiring harness for corrosion or loose pins. If you’re uncertain about electrical testing or replacement, consulting a professional is recommended. Drain Guide notes that DIY fixes save money but must be done safely to avoid shock or leaks.

Maintenance tips to prevent pump failures

Regular maintenance extends pump life. Rinse cycles with warm water can help clear soap buildup. Always use the correct detergent amount to prevent excess suds, which can overwhelm the pump. Periodically inspect the pump area for signs of moisture, corrosion, or loose hoses. Keeping the surrounding area dry and using a drain filter reliably reduces the chance of debris entering the pump.

Safety, warranty, and when to call a professional

If you notice persistent leaks, burning smells, or the washer fails to drain after attempts, stop using the machine and call a technician. Some Samsung models have warranty coverage that may include pump components, but DIY work can void certain coverage. Always unplug the unit, drain residual water with towels, and follow local electrical-safety guidelines. Drain Guide’s team recommends professional help for high-voltage components or uncertain diagnostics.

Tools & Materials

Phillips screwdriver set(Flat and phillips heads for panel screws)
Flathead screwdriver(For prying panels gently without damage)
Nut driver or adjustable wrench(To loosen hose clamps or panel nuts)
Towel or shallow pan(Catch residual water from hoses)
Gloves(Keeps hands clean when handling debris)
Multimeter(For electrical continuity checks (optional for beginners))
Replacement drain pump (if needed)(Match model family; not always required)

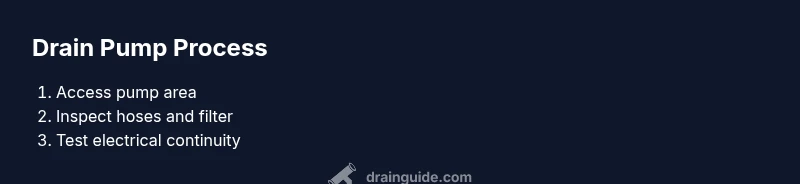

Steps

Estimated time: 25-40 minutes

1
Unplug and prepare
Unplug the washer and pull it away from the wall to access power and hoses. Place towels on the floor and have a shallow pan ready to catch any water remaining in the lines. This step reduces the risk of shock and spills before panel removal.
Tip: Take a photo of hose routes before disconnecting so you can reassemble accurately.
2
Access the drain pump area
Remove the lower front panel on a front-load model or the bottom front panel on applicable top-load models. Use a driver to remove screws, then gently pry the panel free. Keep screws in a labeled container.
Tip: If panels resist, double-check for hidden screws along the edges or a plastic locking tab.
3
Disconnect hoses and electrical connections
Carefully loosen hose clamps and detach the drain hoses from the pump inlets. Disconnect the electrical connector from the pump, noting its orientation. Have a towel ready for any remaining water in the hoses.
Tip: Label hoses or take a quick photo of connections to ensure correct reattachment.
4
Inspect and clean the pump and filters
Inspect the pump impeller by rotating it with a finger. Remove any debris from the pump inlet and the filter screen. If the impeller is seized or damaged, prepare to replace the pump.
Tip: Do not force the impeller; if it won’t move freely, replacement is safer.
5
Reconnect and test
Reconnect electrical connector and hoses, ensuring snug, secure fits. Reattach the front panel and move the washer back in place. Plug in and run a short rinse cycle to verify proper drainage and check for leaks.
Tip: Stand back briefly after starting the test to catch any unexpected leaks quickly.
6
Evaluate the need for replacement
If drainage remains insufficient or the pump hums without pumping water, the pump may be worn or faulty. Consider ordering a replacement pump compatible with your model and repeating the removal process for installation.
Tip: Check manufacturer parts lists to ensure compatibility; a mismatch can cause damage.

Warning: Water will spill; use towels and a shallow pan to catch it.

Pro Tip: Label hoses as you disconnect to simplify reassembly and reduce mistakes.

Note: A clogged pump often comes from coins or lint in the inlet screen; clean it thoroughly.

Pro Tip: If you’re unsure about electrical testing, skip it and focus on mechanical checks first.

Got Questions?

Where is the drain pump located on Samsung front-load washers?

On most front-load Samsung washers, the drain pump is behind the lower front panel. Access it by removing the screws and panel, then inspecting the pump and hoses. Always unplug first and be prepared for residual water.

Can I replace the drain pump myself?

Yes, many homeowners can replace a drain pump with basic tools. Start by confirming model compatibility, disconnecting power, and carefully removing the old pump. Reinstall the new pump with correct hose routing and test for leaks.

What are signs the drain pump is failing?

Common signs include a persistent drain failure, unusual buzzing or humming when draining, and water not leaving the tub. Check for clogs and test continuity if you’re confident with electronics. If unresolved, replacement is often required.

Is it safe to run the washer with a clogged drain pump?

Running the washer with a possible pump problem can worsen damage and leak risk. If you suspect a clog, perform a careful inspection and avoid running multiple drain cycles until the issue is resolved.

How long does a typical drain pump replacement take?

A typical replacement can take 30–60 minutes for a DIY repair, depending on model access and your familiarity with appliance tasks. Plan for extra time if you need to remove panels or re-route hoses.
